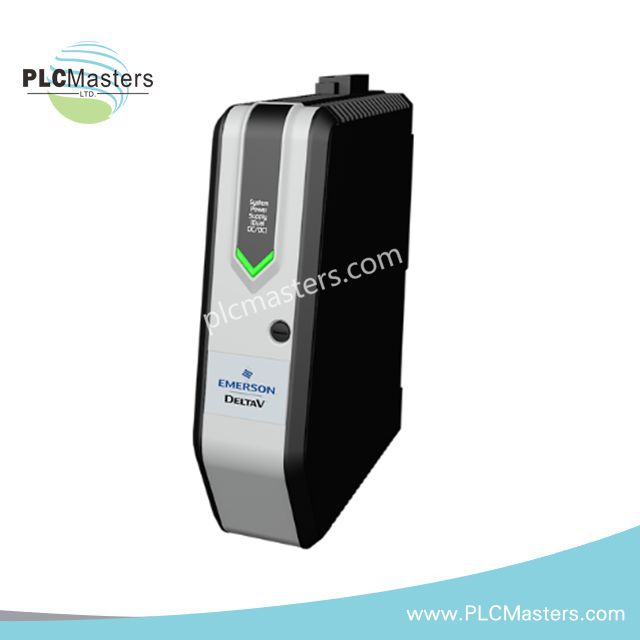

Emerson VE5009 DC to DC Power Supply

Overview

The Emerson VE5009 is a DC to DC power supply designed for industrial automation. It integrates seamlessly with Emerson’s DeltaV control system. It provides efficient power distribution and secure connections. Consequently, it ensures reliable operation in process control environments.

Technical Specifications

Product Type: DC to DC Power Supply
Manufacturer: Emerson
Model Number: VE5009

Input Voltage:

• 12 VDC (-4 to -5%) at 14.8 A

• 24 VDC ±20% at 6.1 A

Inrush Current (Soft Start):

• 12 A peak for 5 ms at 12 VDC input

• 20 A peak for 5 ms at 24 VDC input

Output Power Rating (-40 to 60°C):

• +12 VDC at 13 A (12 VDC input)

• +12 VDC at 8.0 A (24 VDC input)

• +5 VDC at 2.0 A

• +3.3 VDC at 2.0 A (10 W total for combined +5 VDC and +3.3 VDC outputs)

Output Power Rating (60 to 70°C):

• +12 VDC at 10 A (12 VDC input)

• +12 VDC at 6.0 A (24 VDC input)

• +5 VDC at 2.0 A

• +3.3 VDC at 2.0 A (10 W total for combined +5 VDC and +3.3 VDC outputs)

Input Protection: Internally fused, non-replaceable
Overvoltage Protection: Output protected at 110% to 120%
Hold-up Time: Output stays within 5% of nominal for 5 ms at full load and minimum input voltage
