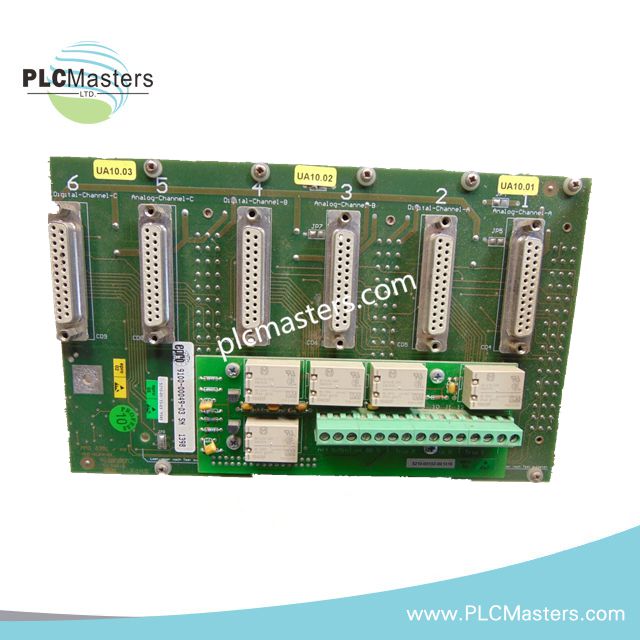

Epro 9100-00049-03 Vibration Monitoring Module

Overview

The 9100-00049-03 is a rack-based processing module developed for Emerson EPRO machine protection platforms. It evaluates input signals from eddy current measurement chains and converts them into actionable vibration and displacement data used for equipment protection and diagnostics.

It is typically deployed in MMS 3000 and MMS 6000 systems where continuous supervision of critical rotating assets is required.

Functional Role in Measurement Chain

Within a complete monitoring loop, the 9100-00049-03 operates downstream of signal conditioning hardware:

• Eddy current probe (PR642x series)

• Signal driver module (CON series)

• Monitoring and protection module (9100-00049-03)

The module processes incoming analog signals and applies configured logic to generate alarms, trips, and system outputs.

Technical Specifications

General Characteristics

• Model: 9100-00049-03

• Module type: Signal evaluation and protection module

• Platform compatibility: Emerson EPRO MMS 3000 / MMS 6000

• Installation: Plug-in rack format

Input Configuration

• Supported sensors: PR6422 / PR6423 / PR6424 / PR6426 probes (via drivers)

• Input signal type: Analog voltage from CON-series drivers

• Measurement capabilities:

• Radial shaft vibration

• Axial displacement

• Shaft position (gap measurement)

Measurement Performance

• Frequency bandwidth: up to 10 kHz

• System accuracy: ≤ ±1% of full-scale (depending on calibration chain)

• Sensitivity reference: typically 8 mV/µm (probe-dependent)

• Dynamic range: suitable for high-speed rotating equipment

Output and Control Functions

• Analog outputs: configurable 0–20 mA or 4–20 mA

• Relay outputs: independent alarm and shutdown contacts

• Digital communication: integrated MMS rack backplane bus

• Setpoint configuration: adjustable thresholds for warning and trip levels

Electrical Characteristics

• Power supply: provided through MMS rack backplane

• Signal isolation: galvanic separation between input, output, and internal bus

• Built-in diagnostics:

• Sensor failure detection

• Cable integrity monitoring

• Driver signal verification

• Internal module health monitoring

Environmental Conditions

• Operating temperature: –20 °C to +70 °C

• Storage temperature: –40 °C to +85 °C

• Humidity tolerance: up to 95% non-condensing

• EMC performance: designed for high-noise industrial installations

Mechanical Design

• Mounting: plug-in module for MMS rack systems

• Front interface:

• LED indicators for status and alarms

• Test access points for signal verification

• Configuration elements depending on hardware revision

Application Areas

• Turbine protection systems (steam and gas)

• Compressor and blower monitoring

• High-speed motor and generator supervision

• Gearbox vibration diagnostics

• Petrochemical process equipment protection

• Continuous condition monitoring installations

Engineering Notes

The 9100-00049-03 is a system-level module and relies on proper pairing with probes and driver electronics for accurate measurement. Calibration and scaling are determined by the complete signal chain rather than the module alone.

Frequently Asked Questions

Q1: Does this module connect directly to proximity probes?
No. It requires a CON-series signal driver between the probe and the module.

Q2: Can it initiate machine shutdown?
Yes. It provides relay outputs for alarm and trip functions based on configured thresholds.

Q3: Is it compatible with all MMS systems?
It is designed specifically for MMS 3000 and MMS 6000 platforms.

Q4: What kind of faults can it detect?
It can identify probe failure, cable disconnection, and abnormal signal conditions within the measurement chain.
