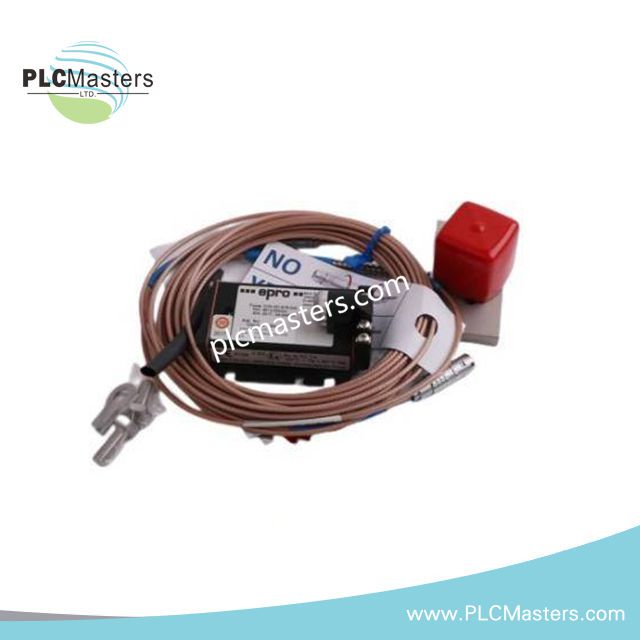

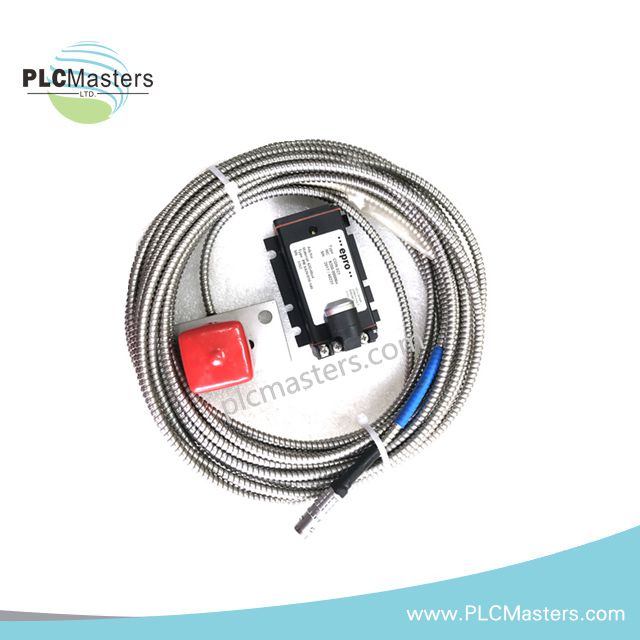

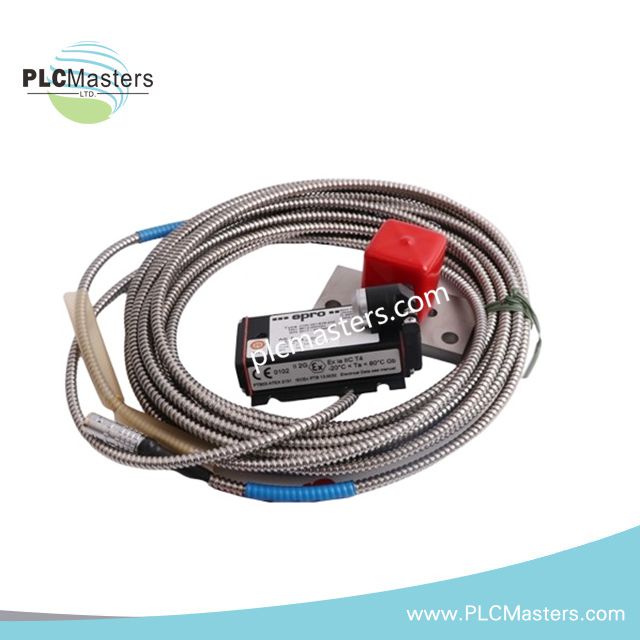

Epro CON021+PR6423/011-110-CN Eddy Current Sensor System

Product Description

The CON021 + PR6423/011-110-CN package from Emerson EPRO is a calibrated eddy current measurement system developed for continuous monitoring of shaft dynamics in rotating equipment. This configuration integrates a signal converter with an 8 mm proximity probe, enabling accurate, non-contact measurement of displacement, vibration, and shaft position.

The converter unit processes raw sensor signals into stable analog outputs, making the system suitable for machinery protection systems and condition monitoring platforms in critical industrial environments.

Technical Specifications

Model Combination: CON021 + PR6423/011-110-CN
Manufacturer: Emerson EPRO
Product Type: Eddy Current Converter with Proximity Sensor

Dynamic Performance

• Frequency range: 0 to 20 kHz (-3 dB)

• Rise time: < 15 µs

Sensor Details

• Model: PR6423/011-110-CN

• Measuring principle: Eddy current (non-contact)

• Probe tip diameter: 8 mm

• Approximate dimensions: 240 × 210 × 40 mm (packaging/assembly reference)

• Weight: ~0.22 kg

Electrical Characteristics

• Supply voltage: -23 VDC to -32 VDC

• Output signal options:

• -4 V to -20 V

• -2 V to -18 V

Environmental Conditions

• Operating temperature: -30°C to +100°C

• Shock and vibration resistance: up to 5 g at 60 Hz

• Protection class: IP20 (converter housing)

Mechanical Properties (Converter Unit)

• Enclosure material: Aluminum alloy (LMgSi 0.5 F22)

• Mounting: 4 × M5 screws

• Connector type: Self-locking LEMO interface

System Integration

• Continuous real-time output for vibration and displacement monitoring

• Compatible with PR6422–PR6426 probe family

• Designed for integration with turbine protection and condition monitoring systems

Typical Applications

• Shaft vibration and displacement monitoring in turbines

• Axial and radial position measurement in compressors and pumps

• Eccentricity detection in rotating shafts

• Monitoring of large motors and industrial fans

• Condition-based maintenance systems in power generation and process plants

Key Functional Characteristics

• High measurement accuracy with non-contact sensing technology

• Fast transient response for dynamic signal tracking

• Compact converter module suitable for control cabinet installation

• Reliable signal conditioning for integration with monitoring systems

• Supports predictive maintenance strategies through continuous data acquisition

Installation and Usage Notes

• Converter module is IP20 rated and must be installed inside a protected enclosure

• Ensure stable DC power supply within specified limits to maintain output accuracy

• Verify compatibility when using alternative probes within the PR642x series

FAQ

Q: What makes this configuration suitable for turbomachinery?
A: The wide frequency response and fast signal processing allow accurate tracking of high-speed shaft movements and vibration patterns.

Q: Can the CON021 converter operate with other probes?
A: Yes, it supports PR6422 to PR6426 probes, though calibration and range depend on the specific sensor used.

Q: What outputs are available for system integration?
A: The system provides analog voltage outputs, typically in the ranges of -4 to -20 V or -2 to -18 V.
