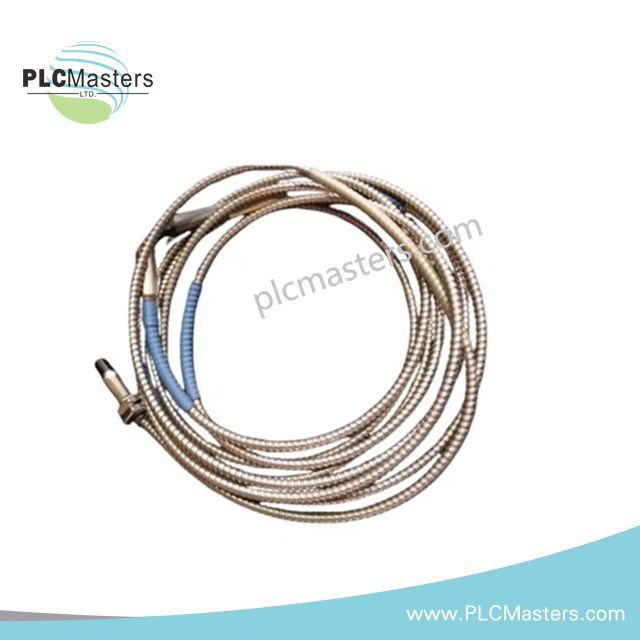

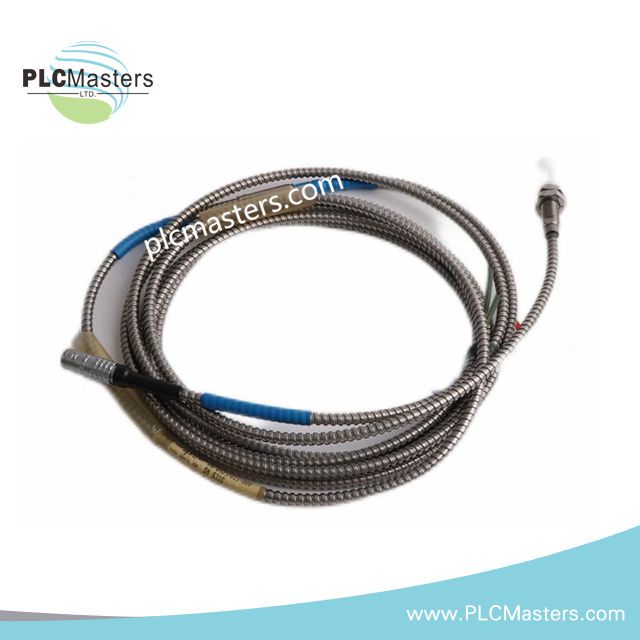

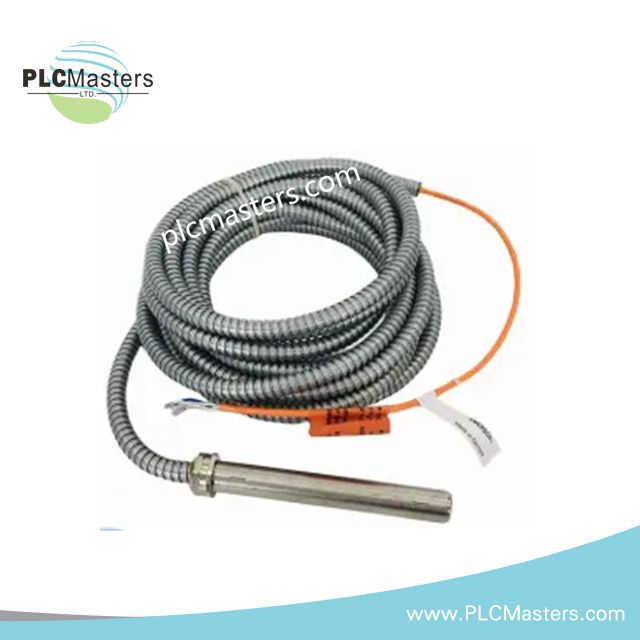

Epro CON021+PR6423/01M-010 Eddy Current Sensor Displacement System

Product Description

The PR6423/01M-010 paired with CON021 forms a precision eddy current measurement system developed by EPRO for continuous monitoring of shaft dynamics in rotating machinery. It is widely applied in vibration analysis and axial/radial displacement tracking where non-contact measurement stability is critical.

The system consists of a high-temperature resistant proximity probe and a signal conditioning converter, enabling accurate linear output proportional to target surface movement. It is engineered for harsh mechanical environments where oil contamination, vibration, and thermal stress are present.

Key Technical Specifications

• System Type: Eddy current displacement measurement assembly

• Probe Model: PR6423/01M-010

• Converter Model: CON021 signal conditioning unit

• Measurement Principle: Electromagnetic eddy current induction

• Probe Diameter: 8 mm

• Cable Length: 10 meters (integrated shielded coaxial cable)

• Measurement Range: Approx. 2 – 4 mm (depends on calibration setup)

• Sensitivity: ~8 mV/μm (typical, configuration dependent)

• Linearity: ≤ ±1% full scale

• Frequency Response: DC up to 10 kHz (sensor chain dependent)

• Converter Bandwidth: 0 – 20 kHz (-3 dB)

• Output Signal: Analog voltage proportional to displacement

• Supply Requirement: ±15 V DC (via CON021 module)

• Operating Temperature: -35 °C to +180 °C

• Protection Rating: IP67 (probe), IP20 (converter)

• Material: Stainless steel probe housing, industrial shielded cable

• Weight: 0.22 kg

• Certifications: CE, ATEX, IECEx, CSA (hazardous area compliance)

System Architecture Overview

• Non-contact eddy current sensing probe installed near rotating shaft surface

• CON021 converts raw probe signal into conditioned analog output

• Designed for continuous vibration and displacement monitoring

• Supports integration into turbine protection and condition monitoring systems

• Optimized for long-term stability under high thermal and mechanical stress

Key Engineering Features

• Non-contact measurement eliminates mechanical wear and drift

• High resolution signal output suitable for predictive maintenance analytics

• Stable performance in oil mist, dust, and high-vibration environments

• Resistant to thermal expansion effects in turbine-grade applications

• Designed for continuous operation in mission-critical machinery

Industrial Applications

• Gas and steam turbine shaft monitoring

• Centrifugal compressor vibration analysis

• Generator rotor displacement tracking

• Industrial pump condition monitoring

• Gearbox and rotating equipment protection systems

FAQ

Q1: What does the CON021 module do in the system?
It conditions and converts the raw eddy current probe signal into a stable analog output for monitoring systems.

Q2: Can this system operate in hazardous areas?
Yes, it is certified for ATEX, IECEx, and CSA intrinsic safety environments depending on installation configuration.

Q3: Is this suitable for high-temperature turbine applications?
Yes, the probe supports up to 180 °C and is designed for turbine-grade thermal conditions.
