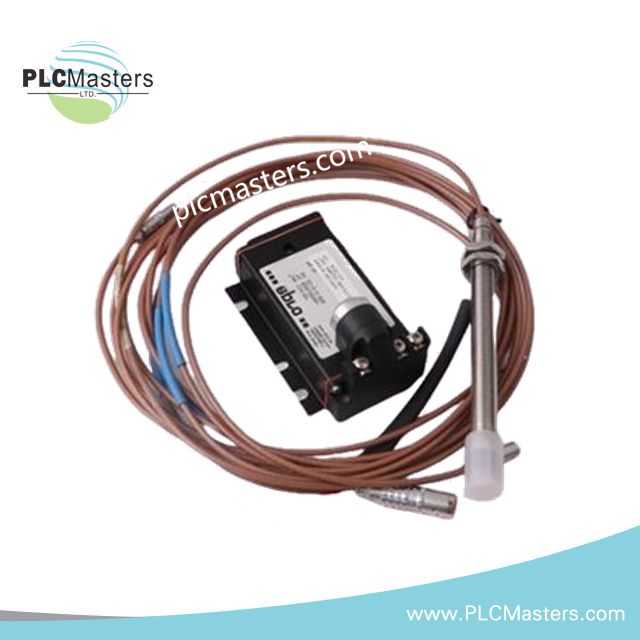

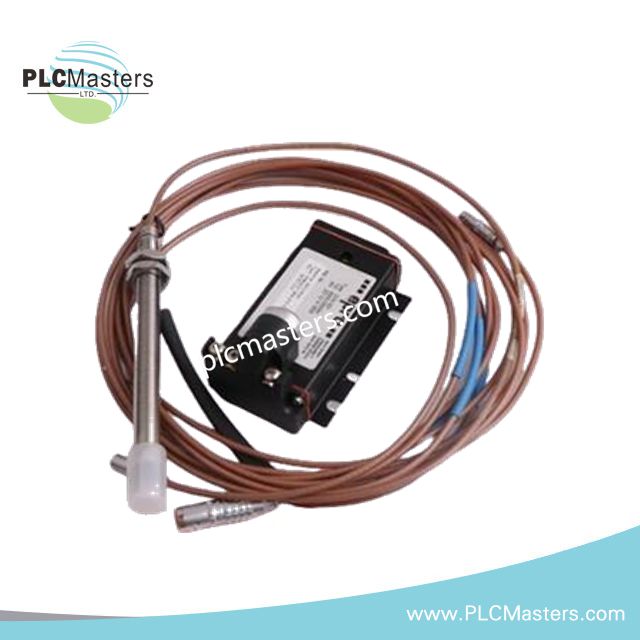

EPRO CON031/915-060 Eddy Current Signal Converter
$178.00
$390.00
Description
Overview
The EPRO CON031/915-060 is a precision eddy current signal converter engineered for non-contact measurement of shaft displacement, vibration, and position in turbomachinery. Designed to interface seamlessly with the EPRO PR6422–PR6426 series sensors, this converter delivers reliable, high-speed monitoring for turbines, compressors, pumps, and other rotating equipment. Its compact and rugged construction ensures straightforward integration into machine protection and condition monitoring systems.
Technical Specifications
| Specification | Details |
|---|---|
| Function | Eddy current signal conversion for non-contact displacement and vibration monitoring |
| Sensor Compatibility | EPRO PR6422, PR6423, PR6424, PR6425, PR6426 series |
| Measuring Range | Up to 6.0 mm (Extended Range with PR6425) |
| Linearity Error | ≤ 2.0% |
| Frequency Response | 0–20,000 Hz (-3 dB) |
| Rise Time | <15 µs |
| Supply Voltage | -23V to -32V (output -4V to -20V) or -21V to -32V (output -2V to -18V) |
| Output Signal | Standard voltage for monitoring/protection systems |
| Operating Temperature | -30°C to +100°C |
| Shock & Vibration Resistance | 5g @ 60 Hz |
| Protection Class | IP20 |
| Housing Material | Aluminum Alloy ALMgSi 0.5 F22 |
| Dimensions | Approx. 80 × 50 × 30 mm |
| Weight | 0.25–0.8 kg depending on version |
| Mounting | 4 × M5×20 screws (included) |
Key Features
-
Non-contact measurement ensures durability and eliminates mechanical wear.
-
High-speed response with rise times under 15 µs for dynamic monitoring.
-
Wide frequency range suitable for critical turbomachinery applications.
-
Compact, robust housing designed for industrial environments.
-
Compatible with PR642x series sensors for extended flexibility.
Applications
-
Turbine monitoring and protection systems
-
Compressor vibration measurement
-
Pump shaft displacement tracking
-
Condition monitoring of rotating machinery in industrial facilities
FAQ
Q: Can this converter work with all PR642x sensors?
A: Yes, it supports PR6422 through PR6426 series sensors, including extended range models like PR6425.
Q: What is the typical installation environment?
A: The device is rated for -30°C to +100°C with IP20 protection and can handle moderate shock and vibration up to 5g at 60 Hz.
Q: How is the output signal configured?
A: The converter provides a standardized voltage output compatible with most monitoring and protection systems.
Q: Are mounting accessories included?
A: Yes, it comes with four M5×20 screws for secure installation.
