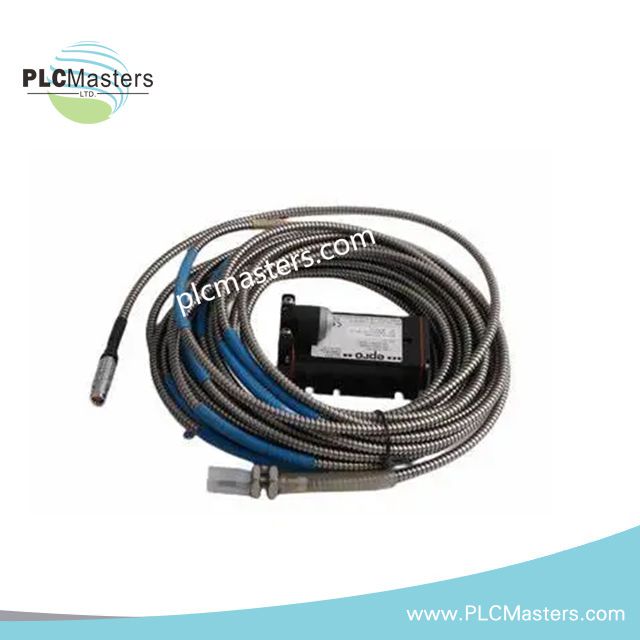

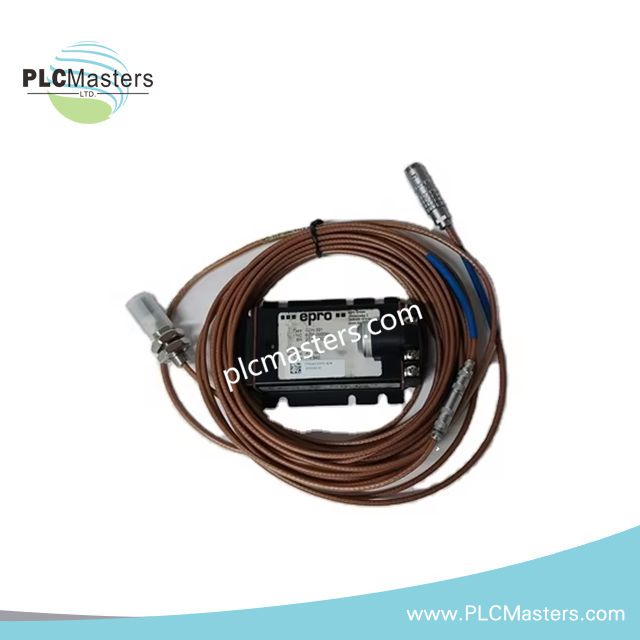

Epro CON031/916-240+PR6426/010-141 Shaft Vibration Monitoring System

Product Overview

The CON031/916-240 + PR6426/010-141 is an integrated shaft vibration measurement solution from Epro (Emerson), combining a signal conversion unit with a high-resolution eddy current probe. This configuration is engineered for continuous monitoring of shaft movement and vibration in critical rotating machinery.

By pairing a dedicated converter with a precision sensor, the system delivers stable, real-time measurement data suitable for machinery protection and condition-based maintenance strategies.

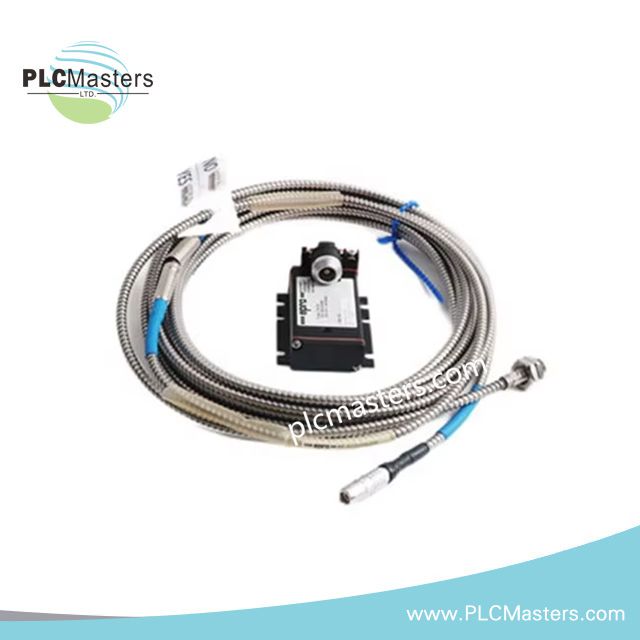

System Configuration

This assembly consists of two coordinated components:

• CON031/916-240 signal converter module

• PR6426/010-141 eddy current displacement sensor

The converter processes raw probe signals and outputs standardized industrial signals, while the sensor performs non-contact measurement of shaft displacement.

Technical Specifications

Converter Module: CON031/916-240

• Function: Signal conditioning and conversion for eddy current sensors

• Compatible Sensors: PR6422 through PR6426 series

• Output Signals:

• 4–20 mA analog output

• Optional configurable outputs depending on configuration

• Power Supply: 24 V DC

• Diagnostics: Integrated monitoring for sensor status and internal electronics

• Mounting: Suitable for control cabinet or local installation

• Compliance: Designed in accordance with API 670 requirements

Eddy Current Sensor: PR6426/010-141

• Measurement Type: Non-contact shaft displacement measurement

• Measuring Range: Typically up to ±2 mm depending on calibration

• Frequency Response: Up to 10 kHz

• Cable Length: 10 meters

• Connector Type: Industrial connector type 141

• Environmental Capability: Designed for high temperature and vibration environments

• Typical Use: Shaft vibration, axial displacement, and position monitoring

Performance Characteristics

• High-precision measurement based on eddy current technology

• Stable signal transmission over extended cable lengths

• Continuous analog output compatible with PLC and DCS systems

• Integrated diagnostics for improved operational reliability

• Designed for long-term use in mechanically and thermally demanding environments

Application Areas

• Steam and gas turbine monitoring

• Process compressors and expanders

• Industrial pumps and rotating drives

• Petrochemical and power generation facilities

• Condition monitoring systems for predictive maintenance

FAQ

Does this package include both sensor and signal converter?
Yes, it is supplied as a complete assembly including both components.

What type of measurement does the system perform?
It measures shaft vibration and displacement using non-contact eddy current sensing.

Is the output compatible with industrial control systems?
Yes, the 4–20 mA output can be directly connected to PLC or DCS input modules.

What factors affect measurement accuracy?
Probe positioning, mounting stability, and correct calibration are critical for accurate results.

Can it be used in hazardous environments?
Additional certified barriers or protection devices may be required depending on installation conditions.
