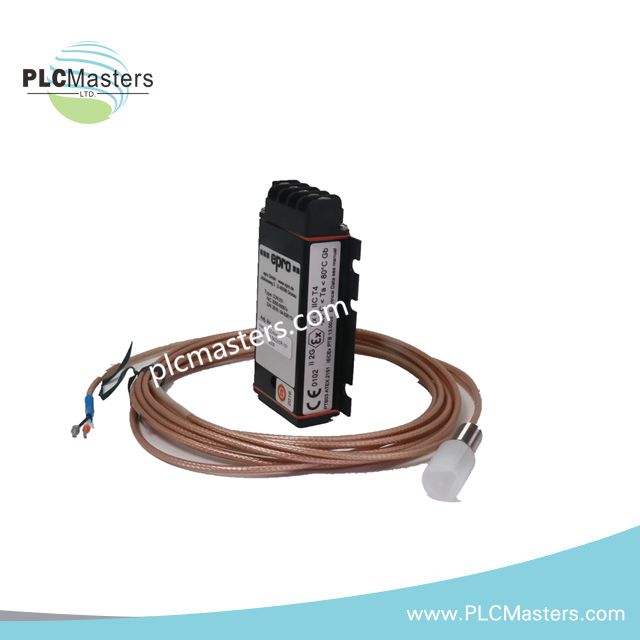

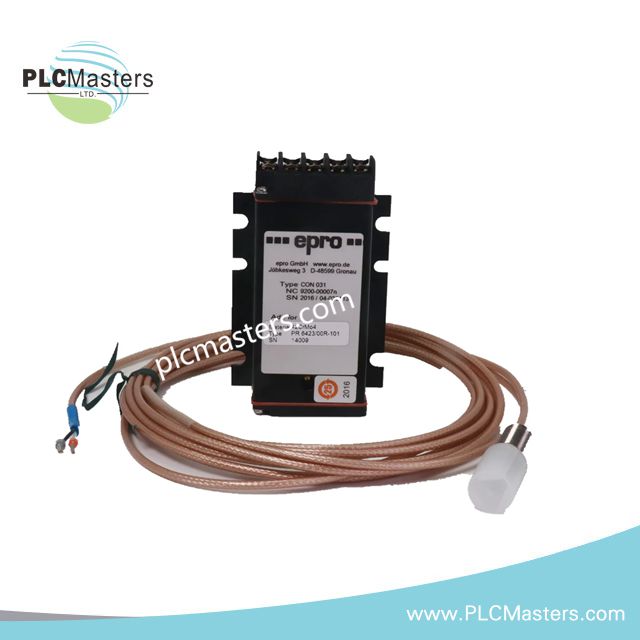

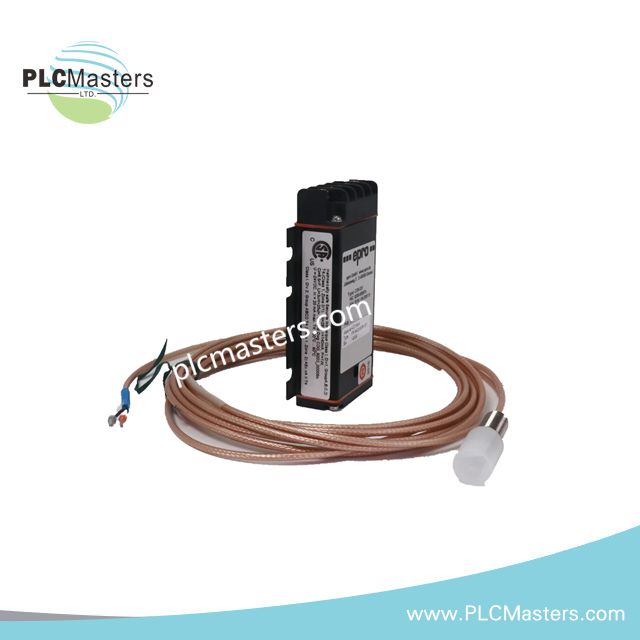

Epro CON041+PR6423/009-031-CN Eddy Current Probe System

System Overview

The Emerson EPRO CON041 combined with PR6423/009-031-CN is a compact eddy current-based measurement solution designed for continuous monitoring of shaft movement in rotating machinery. It is widely applied in turbines, compressors, pumps, and gear-driven systems where reliable vibration and position feedback is required for protection and diagnostics.

The PR6423 probe captures shaft displacement without physical contact, while the CON041 module conditions and converts the signal into standardized analog outputs used by monitoring and control systems. The system is engineered for stable operation under high vibration, temperature variation, and electrically noisy environments.

PR6423/009-031-CN Probe Technical Data

Model: PR6423/009-031-CN
Probe Diameter: 8 mm
Measurement Principle: Eddy current non-contact sensing
Typical Linear Range: approx. 2.0 mm (system configuration dependent)
Usable Measurement Range: ±0.5 mm to ±3.0 mm (installation dependent)
Initial Air Gap: approx. 0.5 mm (variant dependent)
Housing Material: Stainless steel
Operating Temperature: -40 °C to +120 °C (standard configuration)
Extended Range Option: up to -35 °C to +180 °C (with compatible cable assembly)
Humidity Tolerance: 0–100% condensing
Mounting: Threaded or flange mounting options

The probe is optimized for stable signal output in compact installation spaces where small shaft diameters and tight mechanical tolerances are common.

CON041 Signal Converter Technical Data

Function: Eddy current signal amplification and conversion
Frequency Response: 0–20 kHz (–3 dB)
Rise Time: <15 µs
Supply Voltage: -23 V to -32 V DC (alternative variant: -21 V to -32 V DC)
Output Signal Range: -4 V to -20 V DC or -2 V to -18 V DC (depending on configuration)
Operating Temperature: -30 °C to +100 °C
Protection Class: IP20
Mounting Type: DIN rail installation
Housing Material: PA 6.6
Sensor Compatibility: PR6422, PR6423, PR6424, PR6425, PR6426 series

The CON041 provides fast dynamic response and stable signal conditioning for real-time machinery protection systems.

System Performance Characteristics

This system is designed for high-speed rotating equipment where accurate vibration tracking is required across a wide frequency spectrum. It maintains stable linearity under variable thermal and mechanical stress conditions.

Key engineering characteristics include:
Wide bandwidth response up to 20 kHz for high-frequency vibration detection
Fast transient response for protection logic applications
Stable calibration behavior across long operating cycles
High immunity to electrical noise in industrial environments
Consistent output scaling when paired correctly with probe geometry

Typical Applications

Steam, gas, and hydro turbine shaft monitoring
Industrial compressor vibration and displacement measurement
Gearbox alignment and eccentricity detection
Pump rotor condition monitoring
General rotating machinery protection and diagnostics

FAQ

Q1: Is this system suitable for hazardous environments?
Yes. The CON041 module carries certifications including ATEX, IECEx, and CSA depending on configuration.

Q2: What is the advantage of using CON041 with PR6423?
It ensures proper signal conditioning, stable conversion, and improved measurement reliability compared to non-matched systems.

Q3: Can it detect early-stage bearing defects?
Yes. The 20 kHz bandwidth allows detection of high-frequency vibration signatures associated with early mechanical faults.
