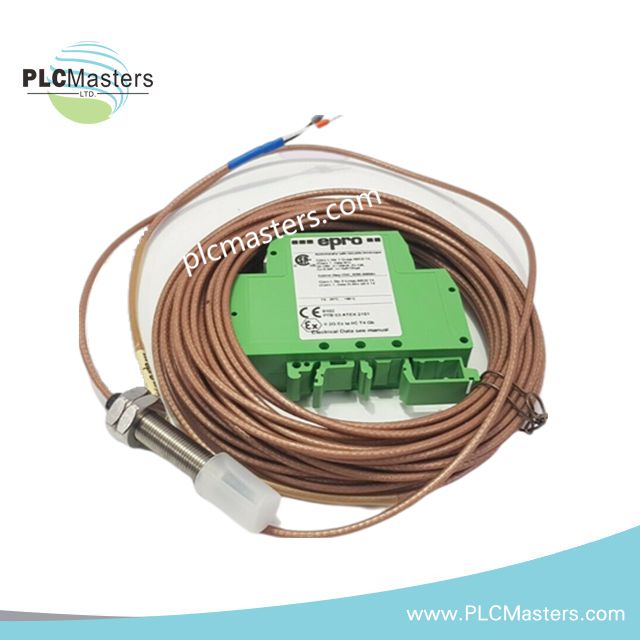

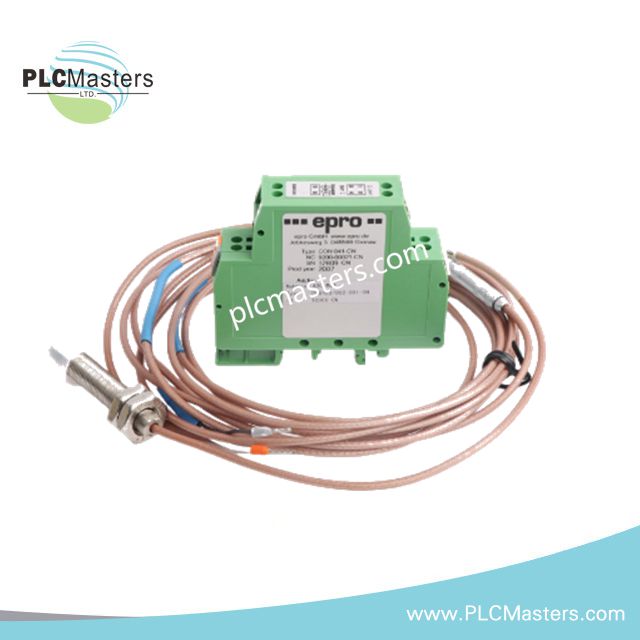

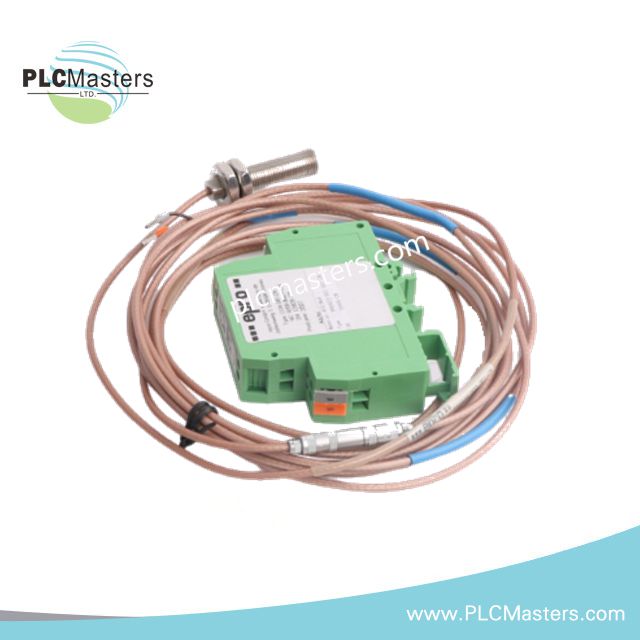

EPRO CON041+PR6424/006-131 Eddy Current Sensor & Converter Set
$178.00
$390.00
Description
Overview
The EPRO CON041 combined with the PR6424/006-131 eddy current probe provides a high-precision, non-contact monitoring solution for turbomachinery. This system accurately measures shaft displacement, vibration, and position while delivering conditioned signals suitable for integration into protection and condition monitoring platforms.
This sensor-converter set is widely applied in steam, gas, and hydro turbines, compressors, pumps, and other rotating equipment where reliable operation and machine protection are essential. The PR6424/006-131 probe captures raw eddy current signals, and the CON041 converts them into standardized voltage outputs for seamless system integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | Eddy current sensor + converter set |
| Sensor Model | PR6424/006-131 (Eddy Current Probe) |
| Converter Model | CON041 |
| Frequency Response | 0–20 kHz (-3 dB) |
| Rise Time | ≤15 µs |
| Supply Voltage | -23V to -32V (output -4V to -20V) or -21V to -32V (output -2V to -18V) |
| Output Signal | Standardized voltage for monitoring and protection systems |
| Operating Temperature | -30°C to +100°C |
| Shock & Vibration | 5 g @ 60 Hz |
| Protection Class | IP20 |
| Housing Material | ALMgSi 0.5 F22 |
| Dimensions | 8 × 5 × 3 cm |
| Weight | 0.25 kg |
| Mounting | 4 × M5×20 screws (included) |
Key Features
-
Complete Sensor & Converter Set: Provides fully conditioned signals for precise non-contact shaft monitoring.
-
Non-Contact Measurement: Eliminates mechanical wear and ensures long-term reliability.
-
High Dynamic Response: Accurate measurement across frequencies up to 20 kHz.
-
Robust Industrial Design: Suitable for harsh operational environments.
-
Flexible Voltage Output: Compatible with most industrial monitoring and protection systems.
Applications
Ideal for monitoring and protecting critical rotating machinery, including:
-
Steam, gas, and hydro turbines
-
Centrifugal and axial compressors
-
Pumps and other industrial rotating equipment
FAQ
Q: Can the CON041 be used with other PR6424 series probes?
A: Yes, but maximum performance is achieved with PR6424/006-131.
Q: What vibration levels can it withstand?
A: The converter tolerates up to 5 g at 60 Hz without performance loss.
Q: Is the output compatible with SCADA or PLC systems?
A: Yes, the standardized voltage output integrates seamlessly with most monitoring and protection platforms.
