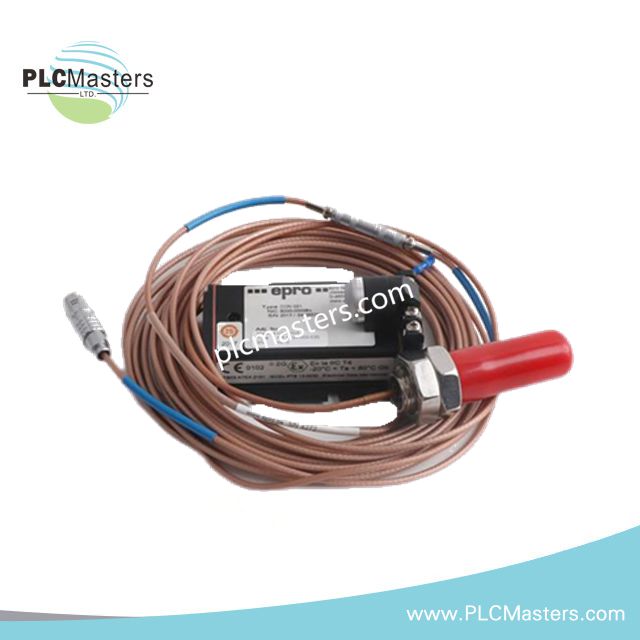

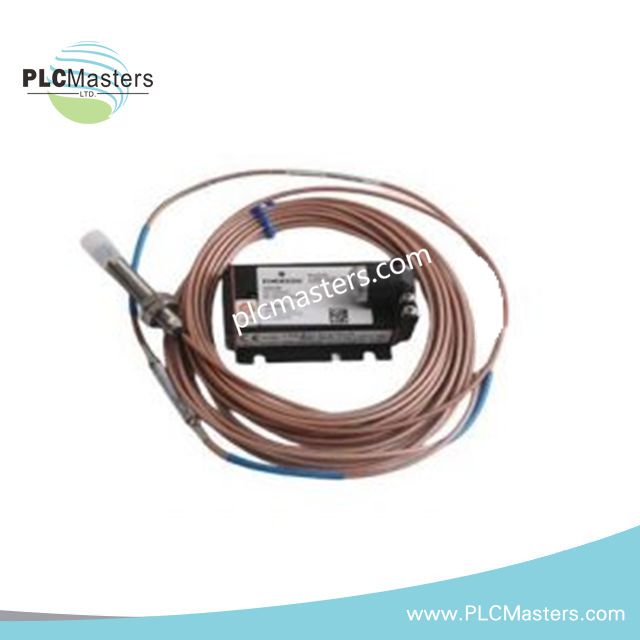

EPRO CON41+PR6423/004-030 Eddy Current Sensor Converter Set
$178.00
$390.00
Description
Overview
The EPRO CON041 paired with the PR6423/004-030 eddy current sensor provides a complete non-contact monitoring solution for rotating machinery. This combination delivers precise measurement of shaft displacement, vibration, and position, ensuring reliable performance in turbines, compressors, pumps, and other critical equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | Eddy Current Sensor + Converter Set |
| Sensor Model | PR6423/004-030 (Eddy Current Probe) |
| Converter Model | CON041 |
| Frequency Response | 0–20 kHz (-3 dB) |
| Rise Time | <15 µs |
| Supply Voltage | -23V to -32V (Output: -4V to -20V) or -21V to -32V (Output: -2V to -18V) |
| Output Signal | Standardized Voltage Output |
| Operating Temperature | -30°C to +100°C |
| Shock/Vibration Resistance | 5g @ 60 Hz |
| Protection Class | IP20 |
| Housing Material | ALMgSi 0.5 F22 |
| Dimensions | 8 × 5 × 3 cm |
| Weight | 0.25 kg |
| Mounting | 4 × M5×20 Screws (Included) |
Key Features
-
Complete monitoring solution: Integrated sensor and converter provide accurate and stable signal conditioning.
-
Non-contact measurement: Eliminates mechanical wear and extends equipment lifespan.
-
High dynamic response: Up to 20 kHz frequency range and fast rise time for precise vibration and displacement tracking.
-
Robust construction: Resistant to industrial shocks, vibrations, and harsh operating conditions.
-
Standardized output: Compatible with a wide range of machine protection and condition monitoring systems.
Applications
Ideal for steam, gas, and hydro turbines, compressors, pumps, and other rotating machinery where continuous monitoring is essential for protection and maintenance. Perfect for engineers requiring high-precision displacement and vibration measurement in industrial environments.
FAQ
Q: Can the CON041 work with other PR6423 sensor variants?
A: It is compatible with sensors in the PR6423 series, but performance specifications may vary depending on the probe model.
Q: What mounting options are available for the converter?
A: The converter supports M5 screw mounting and can be installed in compact enclosures.
Q: Is the output signal compatible with standard PLCs or monitoring systems?
A: Yes, it provides standardized voltage output for easy integration into most monitoring and protection systems.
