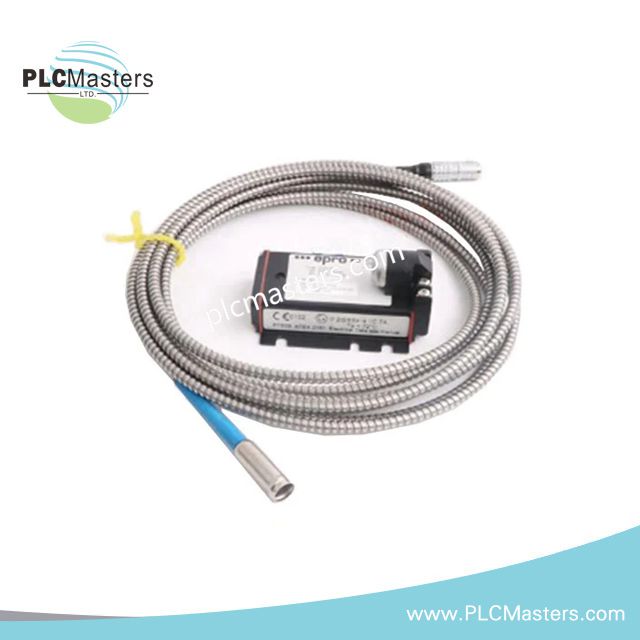

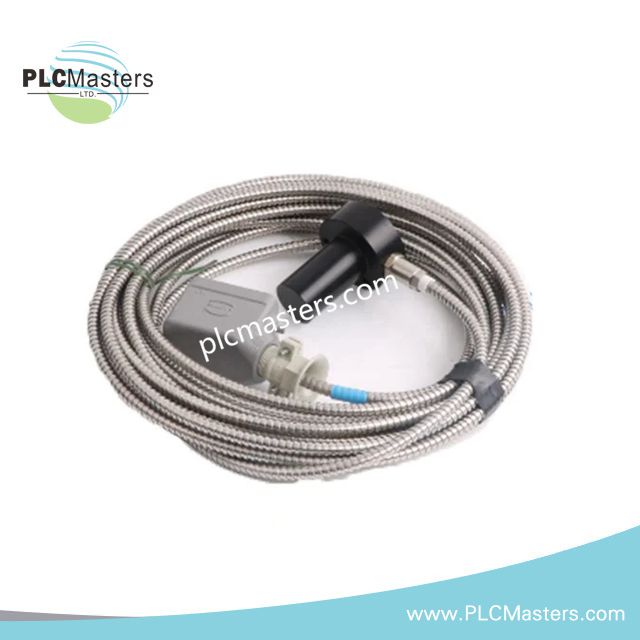

EPRO PR6422/000-000 Eddy Current Proximity Sensor
$178.00
$390.00
Description
Overview
The EPRO PR6422/000‑000 is a precision eddy current proximity sensor engineered for continuous monitoring of rotating machinery. It delivers high-fidelity measurements of shaft vibration, displacement, eccentricity, and rotational speed, ensuring reliable performance in turbines, compressors, pumps, and other industrial equipment. Its compact, non-contact design minimizes wear while providing stable operation under extreme conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Sensor Head Diameter | 5 mm |
| Measurement Range | 0–1 mm standard, up to 1.5 mm with signal converter |
| Sensitivity | 16 V/mm (≈ 406 mV/mil) |
| Frequency Response | 0–20 kHz (–3 dB) |
| Nominal Air Gap | 0.8 mm |
| Static Accuracy | ≤ ±1.5% |
| Target Material | Ferromagnetic steel (42CrMo4 standard) |
| Max Shaft Surface Speed | 2,500 m/s (≈ 98,425 ips) |
| Minimum Shaft Diameter | ≥ 20 mm |
| Operating Temperature | –35 °C to +180 °C |
| Short-Term Temperature Excursion | Up to 200 °C (<4 hours) |
| Max Cable Temperature | 200 °C |
| Pressure Resistance | 10,000 hPa (≈ 145 psi) |
| Shock Resistance | 5 g @ 60 Hz |
| Cable Length Options | 4–10 m |
Key Features
-
Non-contact measurement eliminates mechanical wear and extends service life
-
High static and dynamic accuracy for precise shaft monitoring
-
Wide operating range suitable for high-speed and high-temperature machinery
-
Flexible integration with multiple converters and monitoring systems
-
Industrial-grade reliability for continuous operation in harsh environments
Applications
-
Steam, gas, and hydro turbines
-
Centrifugal and axial compressors
-
Pumps and large fans
-
Machine condition monitoring compliant with API 670 standards
Related Models & FAQ
Q: Can PR6422/000‑000 measure axial vibration?
A: Yes, it supports both radial and axial shaft displacement measurements.
Q: Which converters are compatible?
A: The sensor integrates with CON011, CON031, CON041, or directly with AMS 3000 series modules for signal conditioning.
Q: How does it compare to PR6423?
A: PR6423 offers a slightly larger measuring range and higher frequency response, suitable for extremely high-speed applications.
