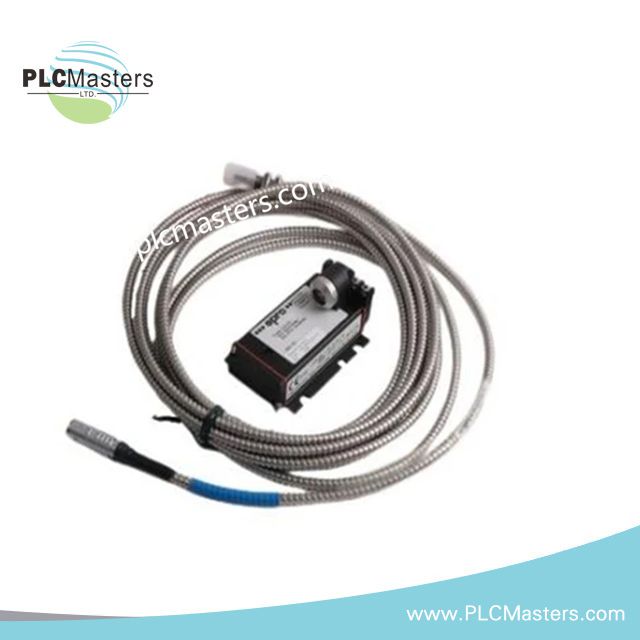

EPRO PR6423/000-001 Eddy Current Proximity Sensor
$178.00
$390.00
Description
Product Description
The EPRO PR6423/000‑001 is a high-precision eddy current proximity sensor designed for monitoring radial and axial shaft displacement, vibration, and speed in rotating machinery. It belongs to the PR6423 series, featuring an enlarged 8 mm sensor head for extended measurement range, offering superior performance compared to the PR6422 series.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Head Diameter | 8 mm |
| Measuring Range | 0–2 mm (configurable up to ~3 mm via converter) |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Frequency Response | 0–10 kHz (–3 dB) |
| Nominal Air Gap | 1.0 mm |
| Static Accuracy | ≤ ±1.5% |
| Target Material | Standard Ferromagnetic Steel (42CrMo4) |
| Maximum Shaft Surface Speed | 2,500 m/s (98,425 ips) |
| Minimum Shaft Diameter | ≥ 20 mm |
| Operating Temperature | –35 °C to +180 °C |
| Short-Term Excursion | Up to 200 °C (<4 hours) |
| Maximum Cable Temperature | 200 °C |
| Pressure Resistance | 10,000 hPa (145 psi) |
| Shock Resistance | 5 g @ 60 Hz |
| Cable Length Options | 4–10 m |
| Housing Material | Stainless Steel |
| Certification | ATEX Approved |
| Dimensions | 8 cm × 8 cm × 3 cm |
| Weight | 0.3 kg |
Key Features
-
Extended Measurement: 8 mm sensor head enables detection up to 3 mm.
-
Non-Contact Operation: Prevents mechanical wear, ensuring long-term reliability.
-
High Accuracy: Excellent static and dynamic performance for precise shaft monitoring.
-
Robust Construction: Stainless steel body and armored cable suitable for harsh environments.
-
Flexible Integration: Compatible with CON011, CON031, CON041 converters, and AMS 3000 series monitoring modules.
Applications
Ideal for industrial turbomachinery including:
-
Steam and gas turbines
-
Compressors and pumps
-
Fans and motors
Compliant with API 670 machine protection system standards.
FAQ
Q: Can this sensor measure both vibration and displacement?
A: Yes, the PR6423/000‑001 is designed for both radial/axial displacement and vibration measurement.
Q: What is the maximum operating temperature?
A: The sensor operates up to 180 °C continuously, with short-term excursions up to 200 °C.
Q: How does it compare to the PR6422 series?
A: PR6423 offers a larger 8 mm head, extended measurement range, and improved performance for larger shaft displacements.
