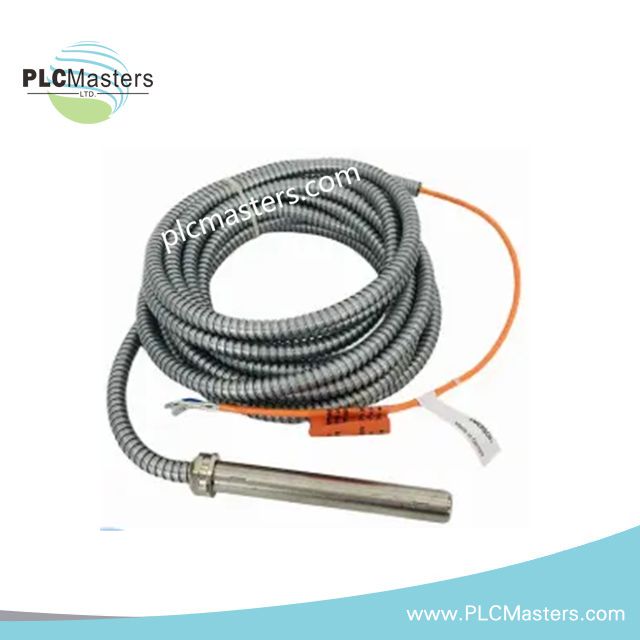

Epro PR6423/014-121 Emerson Eddy Current Probe Sensor

Overview

The PR6423/014-121 is a high-resolution eddy current displacement probe from Emerson’s EPRO monitoring range. It is engineered for precise, non-contact measurement of shaft vibration, axial displacement, and dynamic position in high-speed rotating equipment.

This sensor operates on the eddy current principle, detecting minute changes in distance between the probe tip and conductive metallic targets. It is widely implemented in condition monitoring systems where continuous mechanical integrity and early fault detection are required.

Technical Specifications

General Information

• Model: PR6423/014-121

• Technology: Eddy current non-contact displacement measurement

• Probe diameter: 8 mm

• Construction: Stainless steel housing

• Typical weight: ~0.1 kg (depending on cable configuration)

Measurement Performance

• Linear measurement range: approx. ±1 mm to ±2 mm (system dependent)

• Frequency response: up to 10 kHz

• Sensitivity: up to 8 mV/µm (system configuration dependent)

• Linearity deviation: ≤ ±1% full scale

Electrical Interface

• Sensor type: Passive probe (requires external driver)

• Compatible drivers: Emerson CON series / PR6426 / CON021 / CON041 systems

• Output signal: proportional displacement voltage via signal conditioner

Environmental Limits

• Operating temperature: –35 °C to +180 °C

• Protection level: IP65–IP67 (depending on installation and cabling)

• Resistance: strong immunity to oil contamination, dust, and EMI interference

Mechanical Design

• Mounting: threaded installation or bracket-based mounting

• Cable options: standard 5 m, extendable up to 9 m depending on system setup

Application Areas

• Steam, gas, and hydro turbines

• High-speed compressors

• Industrial pumps and gearboxes

• Generators and large electric motors

• Rotating machinery in petrochemical environments

• Predictive maintenance and vibration analysis systems

Engineering Notes

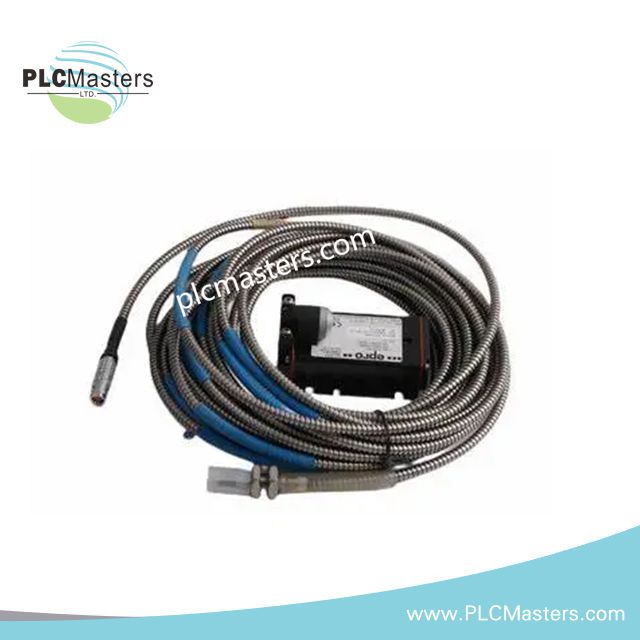

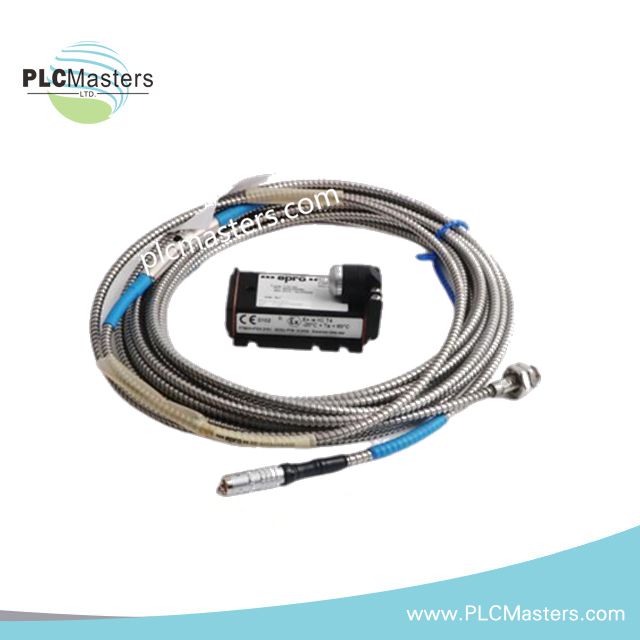

This probe is typically paired with an Emerson signal conditioning module to form a complete vibration monitoring channel. Calibration is system-specific and should be matched with the corresponding driver electronics to ensure accurate linear response and phase stability.

Frequently Asked Questions

Q1: Does the PR6423/014-121 work as a standalone sensor?
No. It requires an external signal conditioner (such as Emerson CON series modules) to convert the eddy current signal into usable displacement output.

Q2: Can it operate in high-temperature environments?
Yes. The probe is designed for continuous operation up to approximately 180 °C, making it suitable for turbine and compressor applications.

Q3: What type of targets can it measure?
It is optimized for conductive metallic surfaces such as steel shafts, rotors, and machine housings.

Q4: Is it suitable for vibration monitoring?
Yes. It is widely used in vibration and shaft displacement monitoring systems for critical rotating assets.
