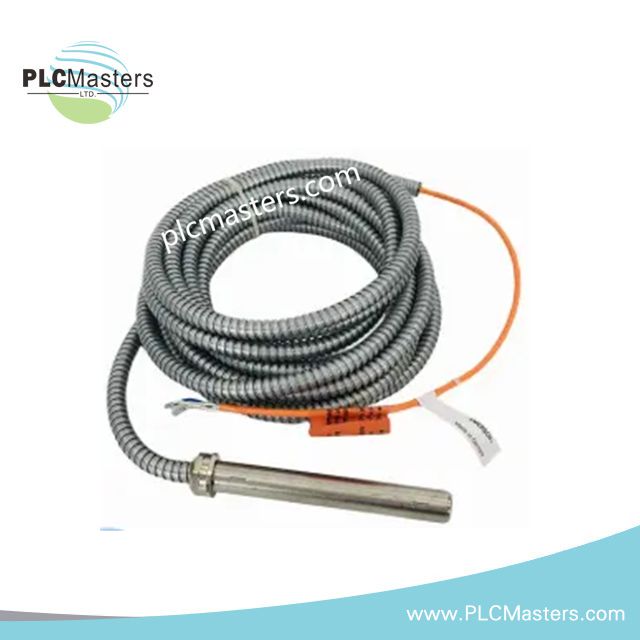

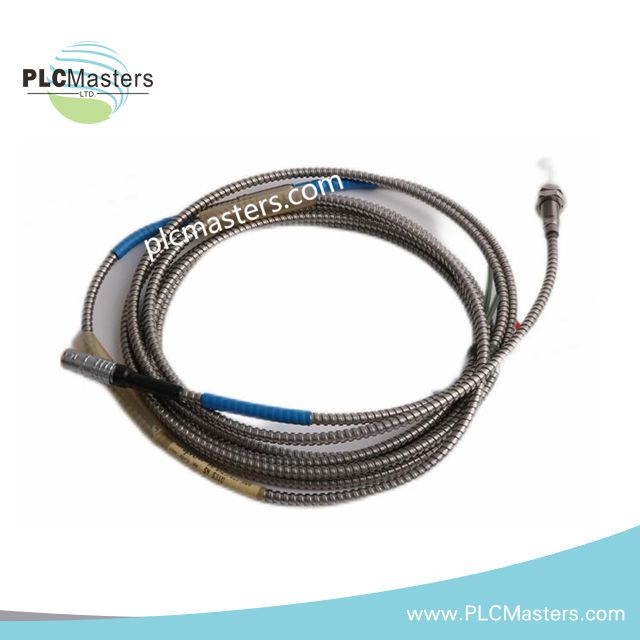

Epro PR6423/016-100 8mm Eddy Current Probe Sensor Unit
$178.00
$390.00
Description
General Description
The Epro PR6423/016-100 is an 8 mm eddy-current proximity probe developed for continuous, non-contact monitoring of shaft movement, vibration behavior, and positional deviation in high-speed rotating machinery. It operates as part of a complete measurement chain with external signal conditioning units, providing reliable data for protection and condition monitoring systems.
Its eddy-current sensing principle ensures stable operation without physical contact, making it suitable for long-term deployment in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Principle | Eddy-current proximity sensing |
| Model | PR6423/016-100 |
| Probe Diameter | 8 mm |
| Linear Measurement Range | Typically up to 1.5 mm (system-calibrated) |
| Target Material | Conductive ferromagnetic metals (optimized for steel shafts) |
| Output Interface | Raw probe signal (requires external driver/converter module) |
| Compatible Systems | CON021 / CON031 / CON041 signal conditioners |
| Supply Voltage (system level) | 10–30 V DC (via conditioning unit) |
| Frequency Response | Up to ~10–20 kHz system bandwidth (dependent on converter) |
| Operating Temperature | -40 °C to +100 °C |
| Cable Temperature Rating | Up to +150 °C (depending on cable variant) |
| Housing Construction | Stainless steel, corrosion-resistant |
| Sensing Tip Material | PEEK (Polyether Ether Ketone) |
| Cable Length | Standard 3 m (custom lengths available) |
| Environmental Protection | IP67 (installed system dependent) |
Engineering Characteristics
-
Non-contact measurement eliminates mechanical wear and drift
-
Stable output under high vibration and high rotational speed conditions
-
High signal fidelity for dynamic shaft movement analysis
-
Designed for integration into protection and monitoring architectures
-
Suitable for continuous operation in harsh thermal and mechanical environments
Application Scope
-
Gas and steam turbine monitoring
-
Compressor shaft vibration and axial position tracking
-
Generator and large motor condition monitoring
-
Gearbox displacement and alignment supervision
-
Predictive maintenance systems for rotating assets
Installation & System Notes

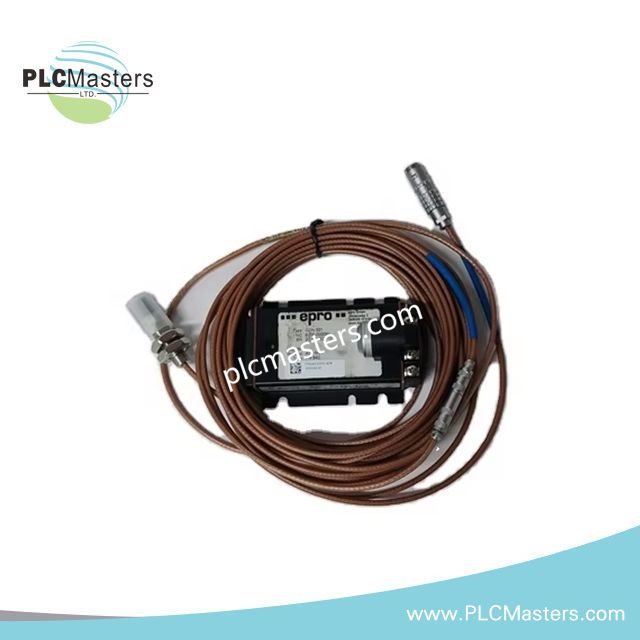

The probe is not a standalone transmitter. It requires a dedicated eddy-current driver or converter module to condition the signal into industrial outputs (such as 4–20 mA or voltage signals).
Proper installation requires:
-
Controlled air gap calibration
-
Stable mounting to avoid mechanical resonance influence
-
Correct material targeting (best performance on steel-based shafts)
FAQ
Q1: Can this probe operate independently without a converter?
No. It must be paired with an external signal conditioning system such as CON041 or equivalent.
Q2: What type of material is optimal for measurement?
Best performance is achieved on ferromagnetic steel surfaces. Non-ferrous materials may reduce sensitivity.
Q3: Is this suitable for high-speed rotating equipment?
Yes. Its fast response and eddy-current principle make it suitable for high RPM machinery monitoring.
