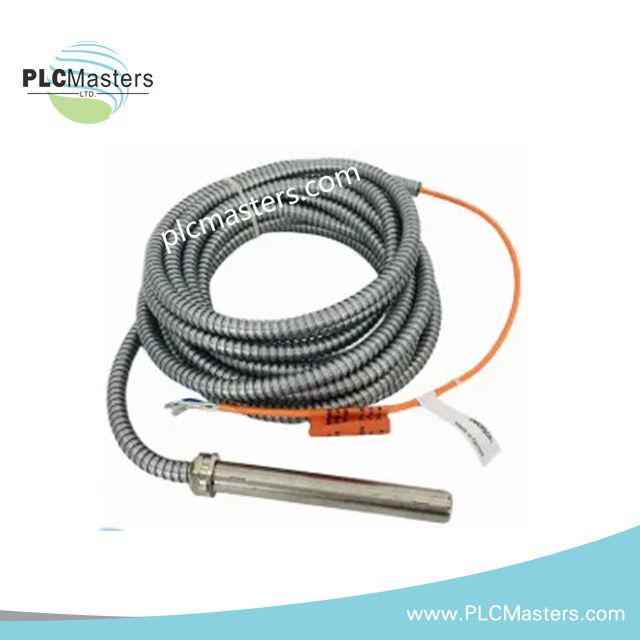

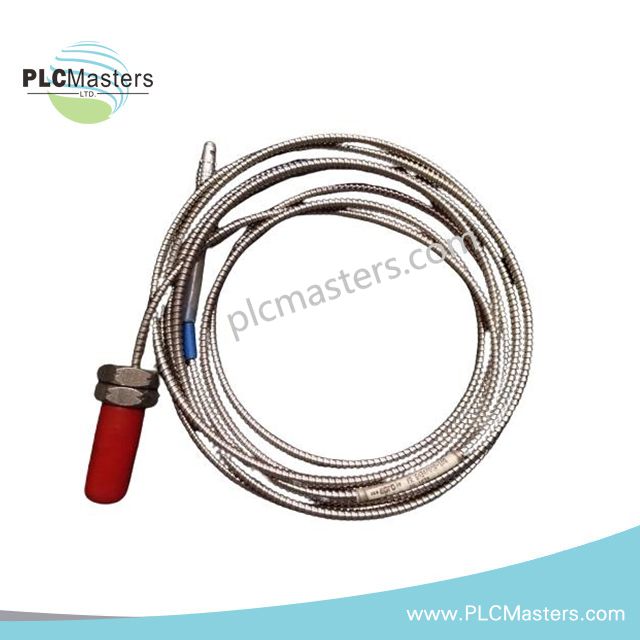

Epro PR6424/010-130 5mm Eddy Current Probe

Product Description

The PR6424/010-130 is a compact eddy current proximity probe from Emerson EPRO designed for high-resolution shaft vibration and displacement measurement in rotating machinery. Its reduced footprint makes it suitable for installations where mounting space is restricted while maintaining accurate non-contact measurement performance.

This probe is typically deployed in turbine systems, compressors, pumps, and gearbox assemblies when integrated with compatible EPRO signal converters such as CON011 or CON021.

Technical Specifications

Model: PR6424/010-130
Manufacturer: Emerson / EPRO
Sensor Type: Eddy Current Displacement / Proximity Probe
Probe Diameter: 5 mm

Measurement Performance

• Linear Measurement Range: approximately 1.2 mm (system dependent with matched converter)

• Installation Air Gap: ~0.5 mm nominal

• Sensitivity: ~8 V/mm (when paired with CON011/CON021 systems)

• Linearity Error: ±0.025 mm within calibrated range (0–45 °C reference condition)

• Minimum Shaft Diameter: ≥15 mm

• Target Material: Ferromagnetic steel (AISI 4140 / 42CrMo4 or equivalent)

Mechanical Construction

• Housing Material: Stainless steel, hermetically sealed body

• Cable: Integrated shielded cable, typically 1 m (custom lengths available)

• Compact probe geometry optimized for tight installation zones

• High mechanical stability for long-term vibration environments

Environmental Performance

• Operating Temperature Range: −35 °C to +180 °C

• Protection Class: IP66 (IEC 60529 compliant)

• Resistant to dust ingress and high-pressure water jets

• Suitable for continuous operation in harsh turbine and compressor environments

System Integration Notes

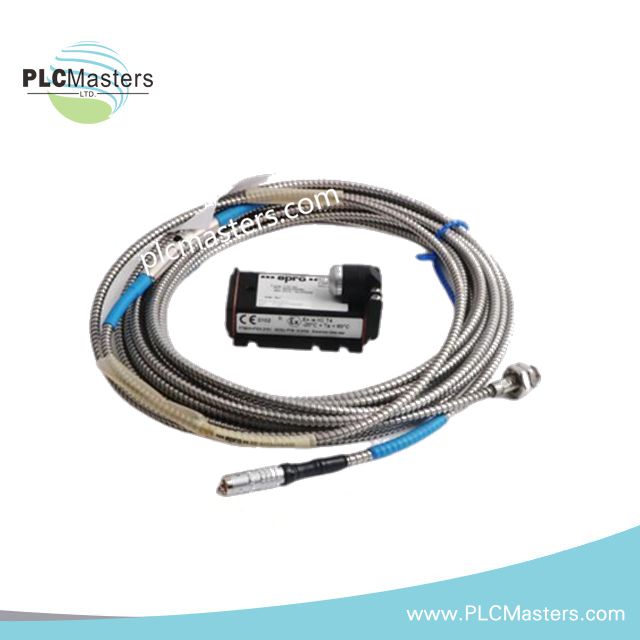

• Designed for use with EPRO CON011 / CON021 signal converters

• Requires matched calibration between probe, cable, and converter system

• Output characteristics depend on full system configuration

• Proper grounding and shielding recommended for noise reduction

Application Areas

• Gas and steam turbine shaft vibration monitoring

• Compressor rotor displacement measurement

• Pump and gearbox condition monitoring

• Small shaft eccentricity detection systems

• Precision alignment and rotor position tracking

Engineering Considerations

• Measurement range is limited compared to larger PR6422/PR6423 probes

• Requires ferromagnetic target material for accurate eddy current response

• Calibration accuracy is guaranteed within 0–45 °C operating reference range

• Installation rigidity directly affects measurement stability and repeatability

FAQ

Q1: Can the PR6424/010-130 operate without a converter?
No. It must be paired with a compatible eddy current signal converter such as CON011 or CON021.

Q2: Is this probe suitable for very small shafts?
Yes. It is designed for shaft diameters down to approximately 15 mm.

Q3: Does cable length affect measurement accuracy?
Yes. Cable length and configuration must match system calibration requirements.
