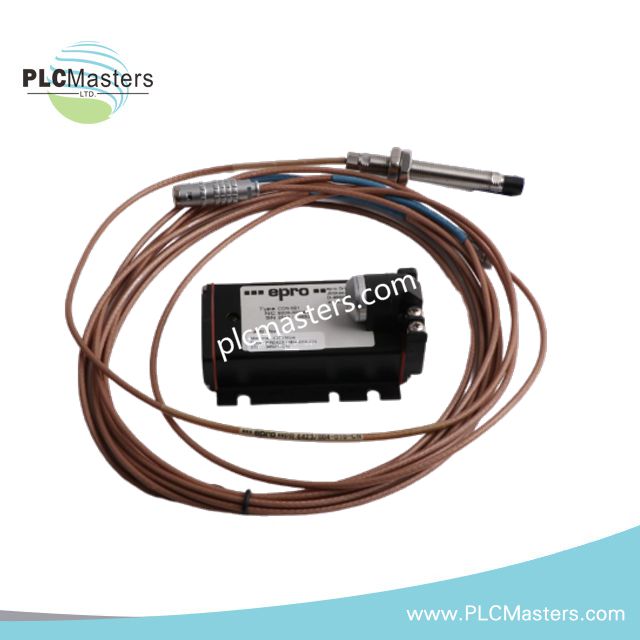

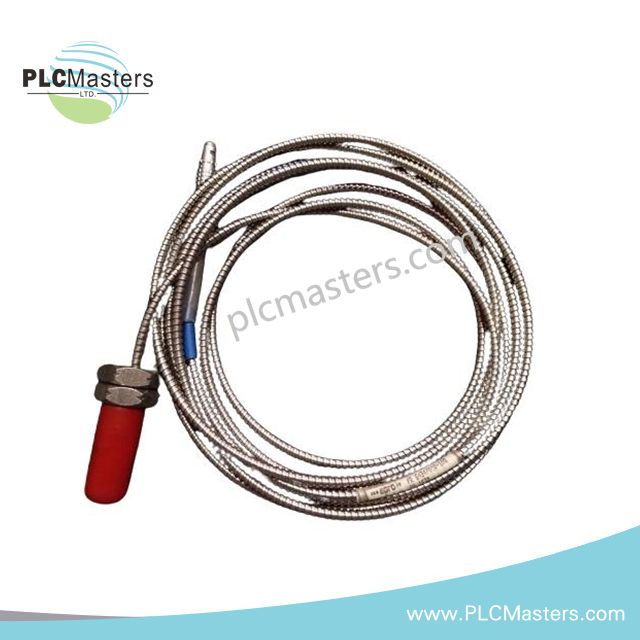

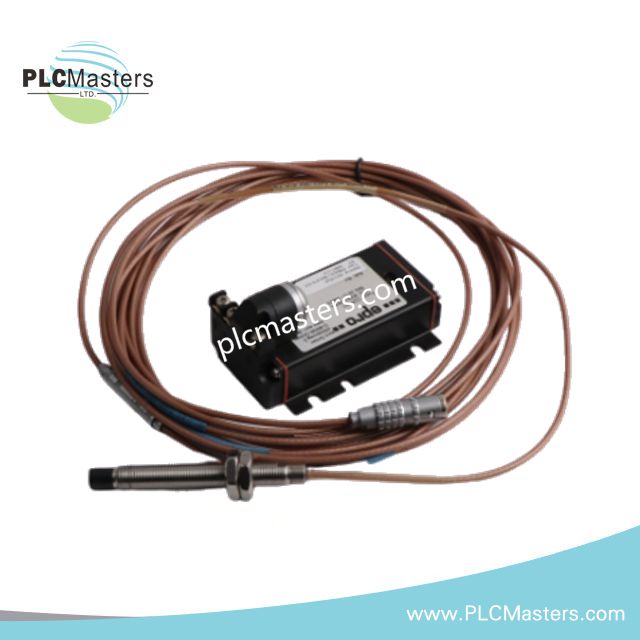

Epro ZW0502/1217/0211+PR6423/005-0F2 Shaft Vibration Monitoring System

Product Overview

The A9360/08-09-00 is an industrial eddy current transmitter developed by Epro (Emerson), intended for precise monitoring of shaft vibration and displacement in rotating equipment. It combines measurement flexibility with a compact, loop-powered design, making it suitable for direct integration into control and protection systems.

This module is widely applied in demanding sectors such as power generation, petrochemical processing, and marine systems where measurement stability and environmental resistance are essential.

Measurement Functionality

The transmitter supports two selectable operating modes, allowing it to measure either vibration or shaft position. Mode selection is achieved via internal configuration, enabling adaptation to different monitoring requirements without changing hardware.

It processes proximity probe signals and outputs a proportional 4–20 mA signal, ensuring compatibility with standard PLC and DCS analog input systems.

Technical Specifications

Model: A9360/08-09-00
Manufacturer: Epro (Emerson)
Product Type: Loop-Powered Vibration and Position Transmitter

Measurement Modes:

• Vibration monitoring

• Shaft position measurement

Frequency Range (Vibration Mode): 5 Hz to 10 kHz
Output Signal: 4–20 mA current loop

Response Time Options:

• 100 ms

• 1 second

Accuracy Characteristics:

• Deviation from Best Fit Line (DSL): ±4% (typical ±2%)

• Incremental Scale Factor (ISF): ±8% (typical ±4%)

Sensor Interface: Eddy current proximity probe system
Sensor Excitation: Multiple selectable frequencies to minimize interference in multi-probe installations

Power Supply:

• Two-wire loop-powered design

• No external power supply required beyond loop

Fault Indication:

• Red LED status indication

• Fault signaling via current output (≤ 3.6 mA)

• Latch and reset functionality for fault conditions

Environmental Performance:

• Designed for operation under high temperature and vibration conditions

• Resistant to electromagnetic interference

Mounting: Compact module suitable for cabinet installation or integration near machinery

Key Engineering Features

• Selectable measurement mode for vibration or displacement applications

• Wide frequency response suitable for high-speed rotating equipment

• Loop-powered operation simplifies installation and reduces wiring

• Integrated fault detection with visual and signal-based indication

• Stable performance in electrically noisy and mechanically demanding environments

• Flexible sensor excitation frequencies support multi-channel installations

Application Areas

• Steam and gas turbine monitoring systems

• Compressors and rotating process equipment

• Marine propulsion and auxiliary systems

• Industrial pumps and motors

• Integrated machinery protection systems within PLC or DCS environments

FAQ

Can this device measure both vibration and position?
Yes, it supports both functions, selectable via internal configuration.

Does it require an external power supply?
No, it operates entirely through the 4–20 mA loop.

How are faults indicated?
Fault conditions are shown via a red LED and a reduced output signal (≤ 3.6 mA).

Is it suitable for high-interference environments?
Yes, it is designed with strong resistance to electromagnetic interference and mechanical stress.

Can multiple sensors be installed close together?
Yes, selectable excitation frequencies allow multiple probes to operate with minimal interference.
