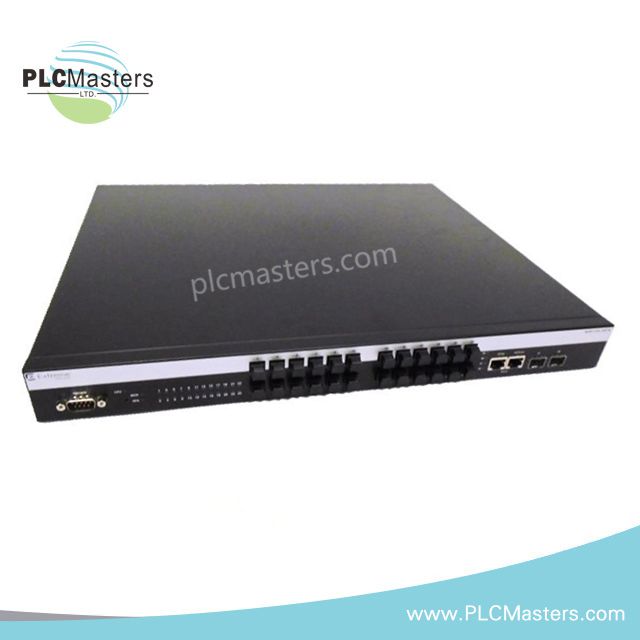

Foxboro A4H254-8F8T P0973JP Ethernet Switch

Overview

The Foxboro A4H254-8F8T P0973JP is a managed Layer 2 Ethernet switch. It delivers reliable switching for industrial and enterprise applications.
Engineers deploy it in small to medium-sized networks needing both copper and fiber connectivity.
Moreover, it supports direct end-station links, flexible uplinks, and stackable expansion.
With advanced management tools, it ensures secure, high-throughput network performance.

Technical Specifications

Port Configuration

• 8 × 100Base-TX RJ-45 copper Ethernet ports

• 8 × 100Base-FX MT-RJ multimode fiber optic ports

• 2 × 10/100/1000 Mbps RJ-45 uplink/stacking ports

• 2 × 1000Base-X SFP uplink ports (Mini-GBIC compatible)

Switching & Performance

• Switching Capacity: 11.2 Gbps (standalone), 89.6 Gbps (stacked)

• Forwarding Rate: 8.3 Mpps (standalone), 66.7 Mpps (stacked)

• MAC Address Table: Supports up to 16,000 entries

• Jumbo Frames: Up to 9216 bytes

• Duplex Mode: Full-duplex supported on all ports

Management & Features

• Supports Web GUI, CLI, SNMP v1/v2/v3, and RMON

• Includes VLAN (IEEE 802.1Q) and QoS (IEEE 802.1p)

• Provides STP/RSTP, port mirroring, and IGMP snooping

• Enables LACP for link aggregation

• Offers advanced remote diagnostics and monitoring

Power & Environmental

• Input Voltage: 100–240V AC, 50–60 Hz (auto-sensing)

• Power Consumption: Max 47 W

• Heat Dissipation: 160 BTU/hr

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Humidity Range: 5% to 95% (non-condensing)

• Redundant Power: External RPS supported

Physical Dimensions

• Size: 44.1 cm (W) × 4.4 cm (H) × 36.85 cm (D)

• Weight: 2.7 kg
