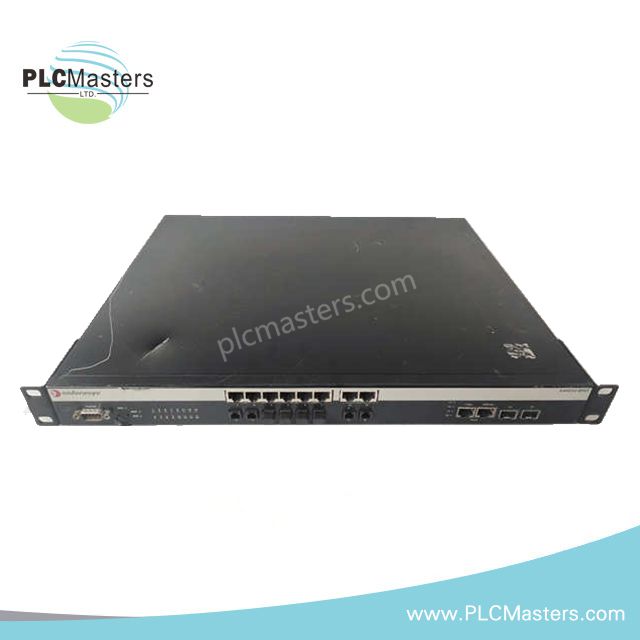

Foxboro Enterasys A2H124-24 Ethernet Switch

Overview

The Foxboro Enterasys A2H124-24 is a SecureStack A2 Layer 2 managed Fast Ethernet switch. It delivers reliable, high-performance edge networking for industrial and enterprise environments. The switch supports 24 10/100Base-T ports and offers stacking for scalable and secure network expansion. Its robust features suit cost-effective deployments and simplify network management.

Technical Specifications

Port Configuration

• 24 × 10/100Base-T (RJ-45 copper Ethernet ports)

• 2 × 10/100/1000Base-T (RJ-45 uplink/stacking ports)

• 1 × Console Port (DB9 for local management)

• 1 × RPS Port (for redundant power supply)

Switching & Performance

• Switching Capacity: 17.6 Gbps (standalone), up to 140.8 Gbps (stacked)

• Forwarding Rate: 13.1 Mpps (standalone), up to 104.8 Mpps (stacked)

• MAC Address Table: 8,000 entries

• Stacking Support: Up to 8 switches per stack

• Jumbo Frame Support: Up to 9216 bytes

Management & Features

• Web-based GUI, CLI, SNMP v1/v2/v3, RMON

• VLAN (IEEE 802.1Q), QoS (IEEE 802.1p)

• Spanning Tree Protocol (STP/RSTP)

• IGMP snooping, LACP, port mirroring

• IEEE 802.1X and MAC-based authentication

Power & Environmental

• Input Voltage: 100–240V AC, 50–60 Hz

• Power Consumption: Approx. 30 W

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Humidity: 10% to 90% (non-condensing)

Physical Dimensions

• Size: 44.1 cm (W) × 4.4 cm (H) × 21.0 cm (D)

• Weight: 2.7 kg

• Mounting: 19-inch rack-mountable (1U height)
