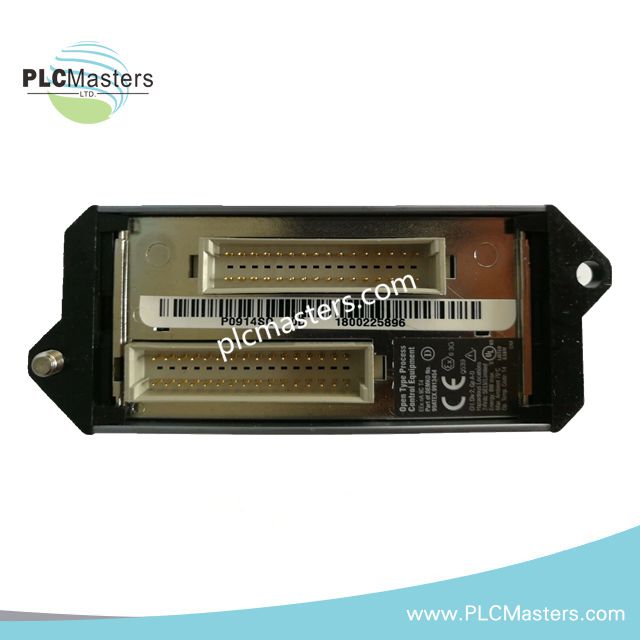

Foxboro FBM201 P0914SQ 8-Channel Analog Input Module
$177.00
$350.00
Description
Product Description
The Foxboro FBM201 (P0914SQ) is an 8-channel analog input module designed for the Foxboro I/A Series Distributed Control System (DCS). It provides precise acquisition of 4–20 mA signals from industrial transmitters, supporting critical measurements such as pressure, temperature, flow, and level. Each input channel is fully isolated, preventing signal interference and ensuring high noise immunity in harsh industrial environments.
Engineered for reliability, the FBM201 features hot-swappable, field-replaceable design and integrates seamlessly into the Foxboro DCS for continuous operation. Its compact modular form factor allows installation on standard FBM baseplates and supports redundant system configurations for mission-critical applications. This module is widely deployed in oil & gas, petrochemical, power generation, water treatment, and other process-intensive industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FBM201 |
| Part Number | P0914SQ |
| Module Type | 8-Channel Analog Input |
| Signal Type | 4–20 mA DC current loop |
| Number of Channels | 8 isolated analog inputs |
| Input Impedance | 250 Ω nominal |
| Accuracy | ±0.1% of reading |
| Resolution | 12-bit or better |
| Isolation | Channel-to-channel and channel-to-system |
| Update Rate | Synchronized with CP execution cycle (~100 ms) |
| Power Consumption | Approx. 3 W |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| EMI/Noise Immunity | Industrial-grade, IEC compliant |
| Mounting | FBM baseplate / carrier |
| Dimensions | 5.5 × 2.5 × 6 in |
| Weight | 0.45 kg |
Key Features
8 fully isolated 4–20 mA analog input channels for high signal integrity
Exceptional accuracy and stability for precise process monitoring
Channel-to-channel isolation prevents interference between measurements
Hot-swappable design allows uninterrupted plant operation
Durable construction for operation in harsh industrial conditions
Compatible with Foxboro I/A Series DCS and supports redundant configurations
Applications
Pressure measurement via industrial transmitters
Temperature acquisition with 4–20 mA sensors
Flow measurement in pipelines or process lines
Level monitoring in tanks and vessels
Industrial analyzer and sensor signal integration
Engineering Advantages
Reliable operation under high EMI conditions
Supports redundant deployment for critical process applications
Easy installation and maintenance due to modular and hot-swappable design
Enables accurate real-time data acquisition for DCS control loops
FAQ
Q: Can FBM201 / P0914SQ be used in redundant systems?
A: Yes, it supports redundant FBM setups when paired with other modules.
Q: Are the channels isolated?
A: Yes, all 8 analog input channels are fully isolated for superior noise immunity.
Q: What is the maximum operating temperature?
A: The module operates up to +70 °C reliably in standard industrial environments.
