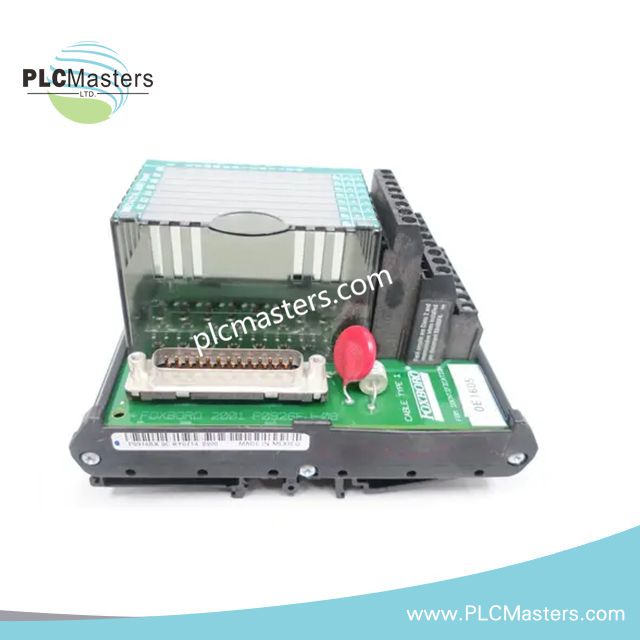

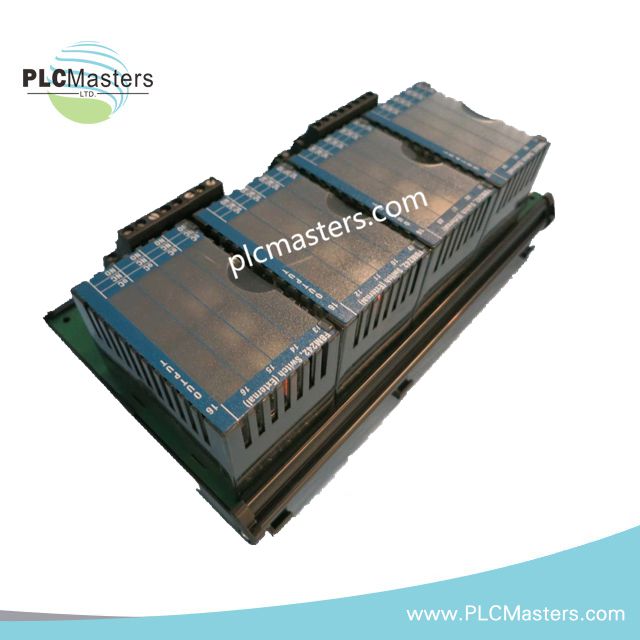

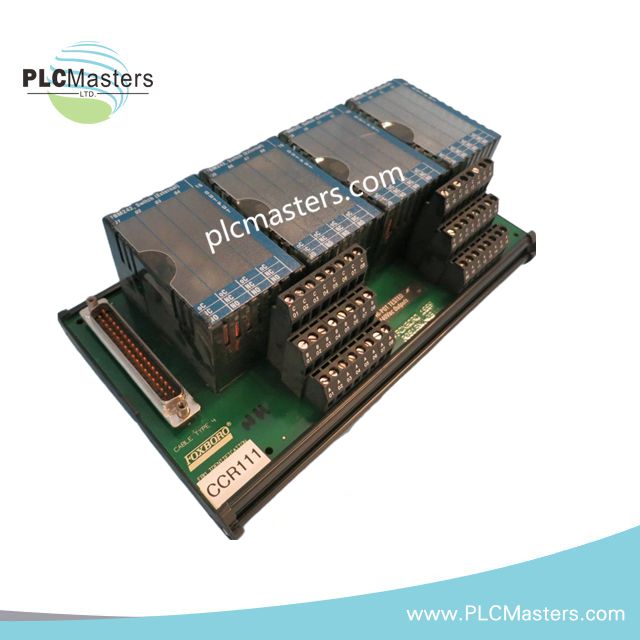

Foxboro FBM206 P0916GQ Pulse Input Module

Product Description

The FBM206 (P0916GQ) is an 8-channel pulse acquisition module developed for the Foxboro I/A Series distributed control platform. It is intended for high-frequency signal collection from field instrumentation such as flow measurement devices, industrial counters, and contact-based pulse generators.

This module processes fast pulse trains and converts them into digital values for transmission across the system fieldbus. Each input channel is electrically isolated to ensure stable operation in electrically noisy or high-interference environments.

The FBM206 (P0916GQ) supports continuous operation in critical process systems and is designed for hot-swap replacement, allowing maintenance without interrupting plant operation or rewiring field connections.

Key Technical Specifications

Module Overview

• Model: FBM206 (P0916GQ)

• Type: Pulse input interface module

• Platform: Foxboro I/A Series DCS

• Channels: 8 independent pulse input channels

• Installation: Modular baseplate / rack system

Input Characteristics

• Input Signal Type: 2-wire pulse signals

• Input Voltage Range: 7–27 V DC

• Frequency Handling: 10 Hz to 25 kHz

• Maximum Pulse Rate: up to 25,000 pulses per second

• Supported Field Devices:

• Turbine flowmeters

• Vortex flow sensors

• Electromechanical and solid-state counters

Signal Processing Performance

• Resolution: 12-bit digital conversion

• Measurement Accuracy: ±0.025% of span (typical system specification)

• Response Time: ~100 ms to reach stable reading (1% settling)

• Isolation:

• Channel-to-channel isolation

• Channel-to-ground isolation

Communication Interface

• Fieldbus Speed: 2 Mbps redundant communication link

• Architecture: Dual-channel Fieldbus (A/B redundancy)

• Failover: Automatic switchover between redundant paths

• Data Handling: Real-time pulse-to-digital conversion for DCS integration

Electrical Requirements

• Supply Voltage: 24 V DC ±10%

• Power Interface: Backplane-powered module

• Protection: Designed for industrial transient and noise immunity

Mechanical Design

• Form Factor: Plug-in module for Foxboro baseplate system

• Hot-Swap Capability: Supported without field wiring removal

• Housing Material: Reinforced aluminum alloy enclosure

• Approximate 4.5 × 11.5 × 11.5 cm

• Weight: 0.2 kg

Environmental Performance

• Operating Temperature: –40°C to +70°C

• Humidity Range: 5%–95% non-condensing

• Environmental Classification: Industrial harsh-duty rating (ISA S71.04 Class G3 equivalent)

• Vibration Resistance: Suitable for continuous plant operation environments

Diagnostics & Indicators

• LED Status Indications:

• Channel activity

• Module health status

• Fieldbus communication status

Compliance

• Certifications: UL, CE, RoHS, and hazardous area approvals (e.g., Zone 2 variants depending on configuration)

Application Scenarios

The FBM206 (P0916GQ) is used in applications requiring high-speed pulse measurement and reliable data conversion:

• Flow measurement systems using turbine and vortex meters

• Industrial production counters and batching systems

• Energy monitoring and utility metering systems

• Oil & gas pipeline flow tracking

• Continuous process automation environments requiring high-frequency signal capture

FAQ

Q: Can this module handle high-speed pulse signals?
A: Yes, it supports pulse frequencies up to 25 kHz, suitable for high-speed flow and counting applications.

Q: Is the module replaceable without stopping the system?
A: Yes, it supports hot-swap functionality, allowing replacement without shutting down the control system.

Q: How is signal isolation implemented?
A: Each channel is individually isolated from others and from ground to reduce noise and improve safety.

Q: What communication system does it use?
A: It communicates through a redundant 2 Mbps Fieldbus with automatic failover capability.
