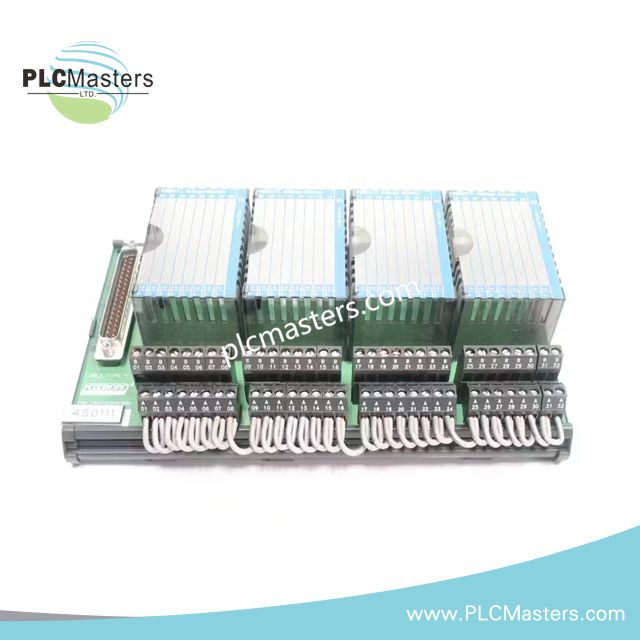

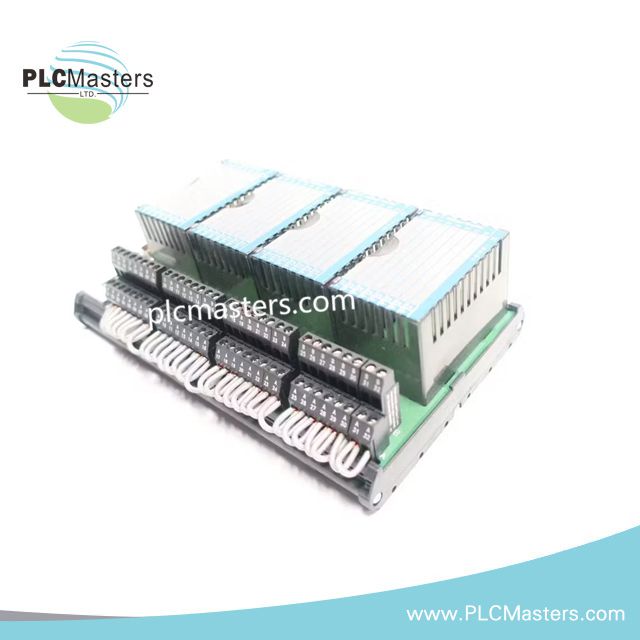

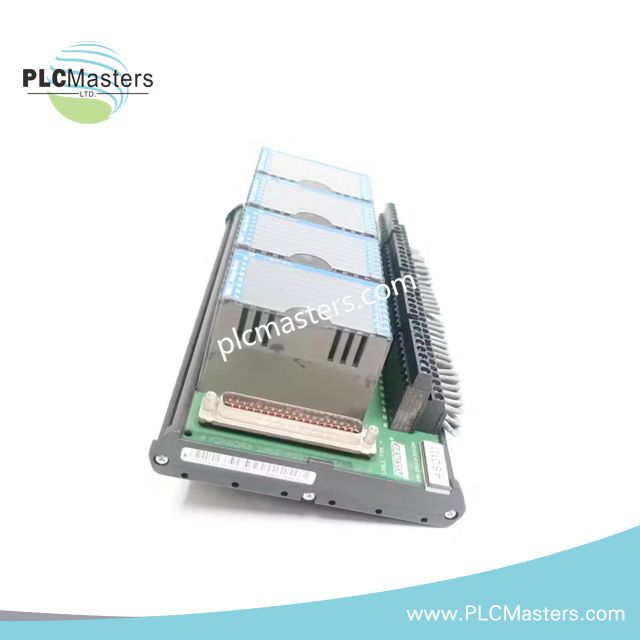

Foxboro FBM217 P0916CA Voltage Monitor Module

Product Description

The Foxboro FBM217 P0916CA is a multi-channel discrete input interface designed for EcoStruxure Foxboro and legacy I/A Series distributed control systems. It is intended for monitoring field voltage signals from a wide range of devices, including relays, switches, and auxiliary contacts, and converting them into reliable digital data for the control system.

This module works in conjunction with dedicated termination assemblies to provide signal conditioning, electrical isolation, and protection against high-voltage transients. Its architecture supports both standalone and redundant deployment, making it suitable for safety-critical and continuous process operations.

The FBM217 P0916CA is widely implemented in industrial environments where stable acquisition of discrete voltage signals is required under varying electrical and environmental conditions.

Key Features

• 32 independent discrete input channels

• Compatible with both AC and DC voltage monitoring

• Supports contact sensing and direct voltage detection modes

• Optical isolation between field and system circuits

• Configurable input filtering to eliminate signal noise

• Designed for redundant configurations in critical systems

• Suitable for corrosive and harsh industrial environments (G3 rating)

Technical Specifications

Input Parameters

• Channel Count: 32

• Input Signal Types:

• Voltage sensing

• Dry contact detection

• Supported Voltage Ranges:

• 15–60 VDC

• 120 VAC / 125 VDC

• 240 VAC

• Input Configuration: Two-wire field connection

• Input Filtering (Selectable): 0 ms, 4 ms, 8 ms, 16 ms, 32 ms

• Functional Capabilities:

• Discrete signal monitoring

• Pulse detection

• Sequence of events (SOE) recording

• Integration with ladder logic

Electrical Characteristics

• Supply Voltage: 24 VDC

• Typical Power Consumption: Approximately 3 W

• Isolation Method: Optical isolation

• Protection Features (via termination assembly):

• Voltage attenuation

• Current limiting

• External power interfacing

• Surge protection

Environmental Conditions

• Operating Temperature: –20°C to +70°C

• Storage Temperature: –40°C to +70°C

• Relative Humidity: 5–95% RH, non-condensing

• Environmental Rating: Suitable for ISA Class G3 environments

Mechanical Details

• Dimensions: 120 × 90 × 60 mm

• Weight: 0.5 kg

• Installation: Mounted on baseplate with associated termination assembly

• Enclosure: Reinforced industrial-grade housing

Redundancy and System Integration

• Supports single-module operation or dual-module redundancy

• Redundant configurations share a common termination assembly

• Automatic selection of valid input signals through system logic

• Increased input current in redundant mode due to parallel operation

Functional Overview

The FBM217 P0916CA processes field voltage inputs and transmits status data to the Foxboro control network. Signal conditioning is handled externally by termination assemblies, which provide isolation, voltage scaling, and protection. This design ensures safe interfacing with high-voltage circuits while maintaining signal integrity within the control system.

Applications

• Monitoring of field device status (relays, switches, contactors)

• Discrete signal acquisition in DCS systems

• High-voltage signal interfacing in process plants

• Sequence of events recording in power and energy systems

• Industrial environments with high electrical noise or corrosive conditions

FAQ

Q: Can the FBM217 P0916CA handle both AC and DC signals?
A: Yes, it supports a wide range of AC and DC voltage inputs, including 24 VDC, 125 VDC, and up to 240 VAC.

Q: Is external signal conditioning required?
A: Yes, termination assemblies are used to provide isolation, voltage attenuation, and protection functions.

Q: Does the module support redundancy?
A: It can be configured in redundant pairs, allowing continuous operation in critical applications.

Q: What is the benefit of configurable input filtering?
A: It helps eliminate false signals caused by contact bounce or electrical noise, improving signal reliability.
