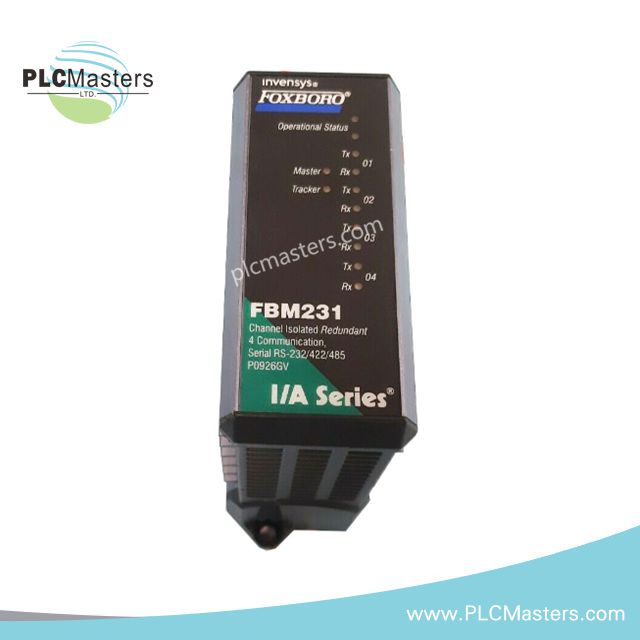

Foxboro FBM231 P0926GV Field Device System Integrator Module

Foxboro FBM231 P0926GV Field Device System Integrator Module

  • 1000 In stock
  • Manufacturer: Foxboro

  • Product No.: FBM231 P0926GV

  • Condition: In stock

  • Product Type: Field Device System Integrator Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 284g

  • Shipping port: Xiamen

  • Warranty: 12 months

{"id":41933192527962,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"FBM231 P0926GV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Foxboro FBM231 P0926GV Field Device System Integrator Module","public_title":null,"options":["Default Title"],"price":16500,"weight":284,"compare_at_price":35000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

Description

Overview

The Foxboro FBM231 P0926GV serves as a Field Device System Integrator (FDSI) Module. It integrates dual-ported field I/O devices with the Foxboro Evo Process Automation System. This module ensures efficient, redundant serial communication to maintain continuous data exchange. It supports multiple communication protocols and provides flexible device connectivity.

Technical Specifications

  • Product Type: Field Device System Integrator (FDSI) Module

  • Manufacturer: Foxboro

  • Model Number: FBM231 P0926GV

  • Communication Protocol: RS-232, RS-422, RS-485

  • Number of Ports: 4 individually configurable serial ports

  • Redundancy: Master-tracker configuration for redundancy

  • Supported Devices: Up to 64 RS-485 or 4 RS-232/RS-422 devices

  • Data Transmission Rate: Up to 2000 DCI block connections

  • Power Supply: 24 V DC ±5% / -10%

  • Input Consumption: Max 7 W per module

  • Environmental Rating: Class G3 for harsh environments

  • Mounting: DIN rail or 19-inch rack via modular baseplate

  • Operating Temperature: -20°C to +70°C (-4°F to +158°F)

  • Dimensions (LxWxH): 10.4 cm x 4.5 cm x 11.4 cm

  • Weight: 0.284 kg

Features

We welcome bulk orders and have a minimum order quantity of just one unit.

Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
