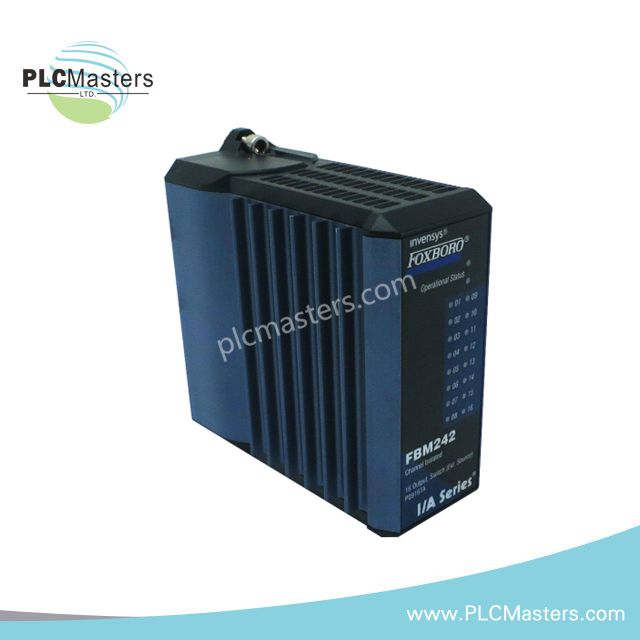

Foxboro FBM242 P0971HX Discrete Output Module

Overview

The Foxboro FBM242 P0971HX is a discrete output module built for industrial automation. It works within the Foxboro Evo Process Automation System. The module provides 16 high-reliability output channels. Engineers can configure each channel for various voltages and fail-safe behaviors. It supports both AC and DC voltages and handles up to 2A per channel. This module fits harsh environments and installs easily on DIN rails or in racks.

Technical Specifications

• Model Number: FBM242 P0971HX

• Product Type: Discrete Output Module

• Manufacturer: Foxboro (Schneider Electric)

• Number of Output Channels: 16

• Supported Output Voltages:

• 15 to 60V DC

• 120V AC / 125V DC

• 240V AC

• Current Rating: Up to 2A per channel @ 60V DC

• Fail-Safe Configuration: Configurable per channel

• Communication: Fieldbus via FCM or FCP

• Environmental Rating: Class G3 (harsh industrial conditions)

• Mounting Type: DIN rail or rack-mounted

• Module Operating Temperature: -20 to +70°C (-4 to +158°F)

• PVC Termination Temperature: -20 to +50°C (-4 to +122°F)

• Relative Humidity: 5 to 95% (non-condensing)

• Dimensions (L x W x H): 10.4 cm x 4.5 cm x 11.4 cm

• Weight: 0.284 kg
