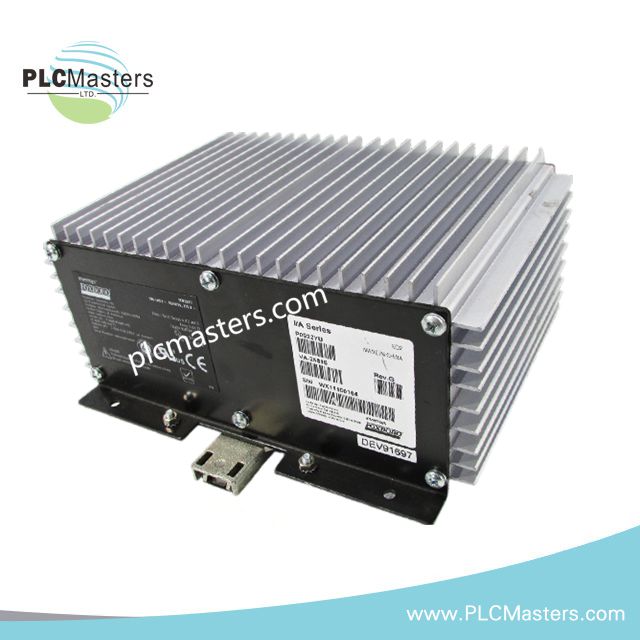

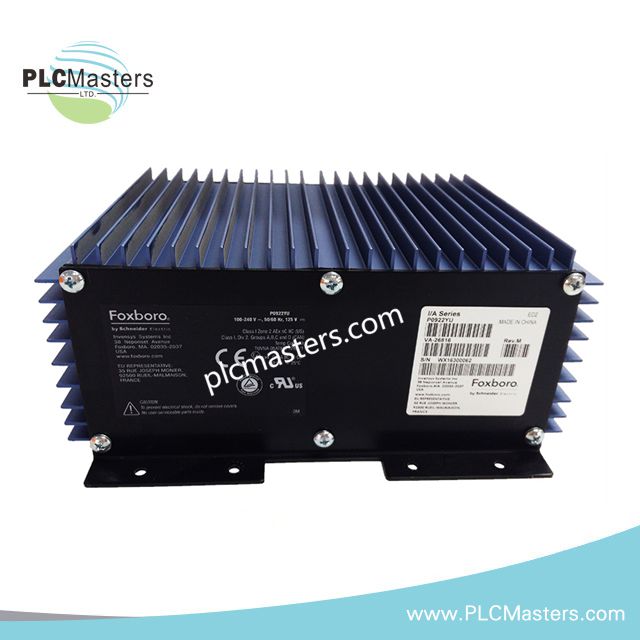

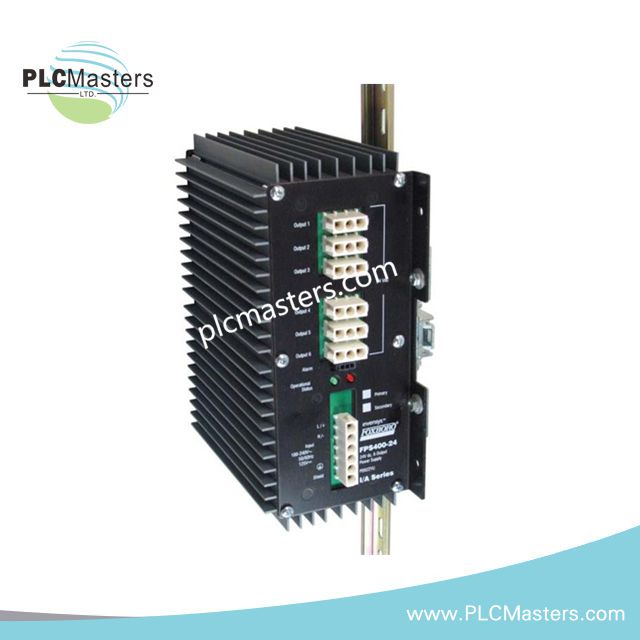

Foxboro FPS400-24 P0922YU Power Supply Module
$177.00
$350.00
Description
Product Description
The Foxboro FPS400-24 P0922YU is a high-performance 400 W power supply designed for the Foxboro Evo™ I/A Series process automation system. It delivers stable 24 VDC output to 200 Series subsystem baseplates and Field Bus Modules (FBMs), ensuring continuous operation in demanding industrial environments. Moreover, the unit accepts both 120/240 VAC and 125 VDC input, providing flexibility for different plant power infrastructures. Its Division 2 and Zone 2 hazardous area certifications make it ideal for refineries, chemical plants, and offshore platforms.
Engineered for reliability, the FPS400-24 maintains precise voltage regulation under fluctuating loads. In addition, its compact DIN rail mounting allows seamless integration into existing control cabinets. For engineers and system integrators, this power supply offers predictable performance, long service life, and ease of installation within the Foxboro Evo™ DCS ecosystem.
Key Features
-
Delivers 24 VDC output with ±0.2 V precision for stable FBM operation
-
Accepts 120/240 VAC or 125 VDC input, enhancing installation flexibility
-
Provides up to 16.7 A output current, supporting high-demand subsystems
-
Compact design (~17.8 × 10.7 × 21.5 cm) with DIN rail mounting for easy installation
-
Certified for Division 2 / Zone 2 hazardous areas for safe industrial use
-
High efficiency up to 90% minimizes energy loss and heat generation
-
Operates in extreme temperatures from –40 °C to +60 °C
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | FPS400-24 (P0922YU) |
| Input Voltage | 120/240 VAC (85–265 V) or 125 VDC (108–145 V) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 VDC ±0.2 V |
| Output Current | Up to 16.7 A |
| Power Capacity | 400 W |
| Efficiency | Up to 90% |
| Operating Temperature | –40 °C to +60 °C |
| Dimensions | 17.8 × 10.7 × 21.5 cm |
| Weight | 2.84 kg |
| Mounting | DIN rail |
| Certification | Division 2 / Zone 2 certified |
Typical Applications
-
Powering 200 Series subsystem baseplates in Foxboro Evo™ DCS networks
-
Supporting Field Bus Modules in hazardous areas of process plants
-
Refineries, petrochemical, chemical processing, and offshore automation
-
Industrial control systems requiring high-reliability 24 VDC power
FAQ
Q: What input voltages are supported by the FPS400-24 P0922YU?
A: The unit supports 120/240 VAC (85–265 V) or 125 VDC (108–145 V).
Q: Can this power supply be used in hazardous areas?
A: Yes, it is certified for Division 2 and Zone 2 hazardous environments.
Q: What is the maximum output current?
A: The FPS400-24 delivers up to 16.7 A at 24 VDC.
Q: How is the power supply mounted?
A: It mounts easily on standard DIN rails within control cabinets.
Q: Is this compatible with all Foxboro Evo™ systems?
A: It is specifically designed for 200 Series subsystem baseplates and FBMs.
