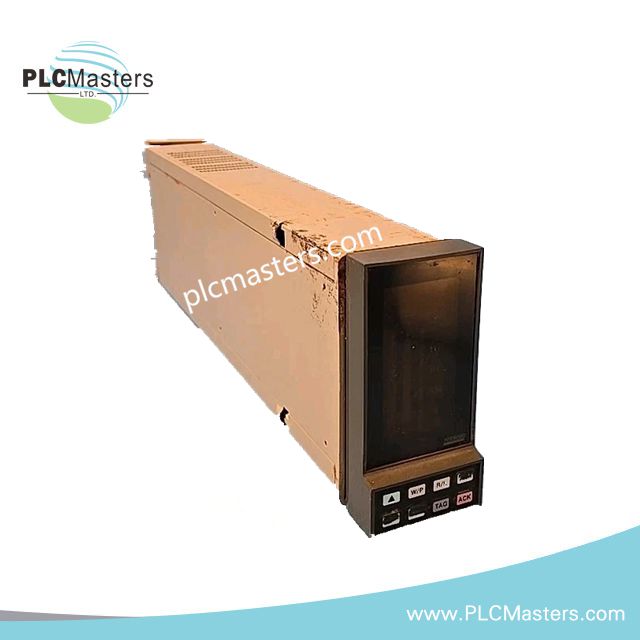

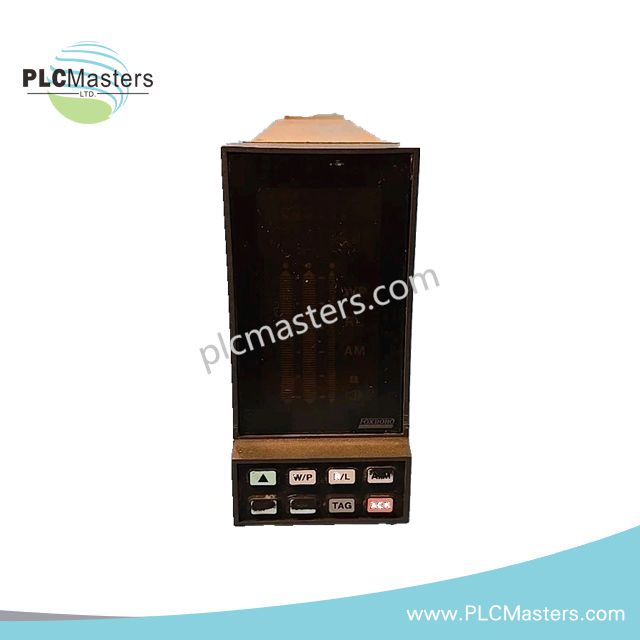

Foxboro K0143AK-E Operator Interface Panel
$177.00
$350.00
Description
Product Description
The Foxboro K0143AK‑E is a rugged industrial Operator Interface Panel (OIP) designed for seamless integration with Foxboro I/A Series DCS and PLC systems. This HMI provides real-time monitoring, process visualization, and interactive control through a full HD touchscreen, delivering reliable performance in challenging industrial environments.
Equipped with a versatile processor and modular architecture, the K0143AK‑E supports fault-tolerant operation and scalable configurations. Its multi-protocol communication capabilities, including Ethernet, RS‑232, and USB, allow effortless connectivity with supervisory systems and field devices. The panel’s IP65-rated enclosure ensures protection against dust and water ingress, making it suitable for demanding operational conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 15.6-inch touch-enabled screen |
| Resolution | 1920 × 1080 pixels (Full HD) |
| Brightness | 400 nits |
| Memory | 8 GB RAM, 64 GB storage (alternate: 16 MB SDRAM + 32 MB Flash) |
| Processor | Single-core (optional dual module for fault-tolerant setup) |
| Power Supply | 24 VDC with support for redundant configuration |
| Power Consumption | Maximum 8.5 W |
| Communication | Ethernet, RS‑232, USB 2.0; Modbus TCP, EtherNet/IP supported |
| Operating Temperature | -20°C to +60°C |
| Protection | IP65 dustproof and water-resistant |
| Dimensions | 125 × 40 × 115 mm |
| Weight | 3.9 kg |
Key Features
-
Touchscreen interface with multi-touch and gesture support
-
Intuitive graphical programming for control logic and data visualization
-
Integrated alarm management and event logging system
-
Supports multiple communication protocols for seamless DCS/PLC integration
-
Modular, scalable design with optional fault-tolerant configuration
-
IP65-rated rugged construction for reliable industrial operation
Typical Applications
-
Petrochemical Plants: Real-time monitoring of reactors, pumps, and pipelines
-
Manufacturing: Production line visualization and operator control
-
Power Generation: Supervisory control for turbines and boilers
-
Pharmaceuticals: Precision monitoring of batch processes
-
Water Treatment: Pump station, filtration, and quality control monitoring
FAQ
Q: Is the K0143AK‑E suitable for outdoor installations?
A: Yes, its IP65-rated enclosure protects against dust and water ingress, suitable for harsh environments, though extreme temperatures may require additional cooling.
Q: Can it connect to non-Foxboro PLC systems?
A: It supports standard industrial protocols like Modbus TCP and EtherNet/IP, allowing integration with compatible third-party systems.
Q: Does the display support multi-touch gestures?
A: Yes, the 15.6-inch touchscreen supports multi-touch and gesture-based navigation for intuitive operator interaction.
