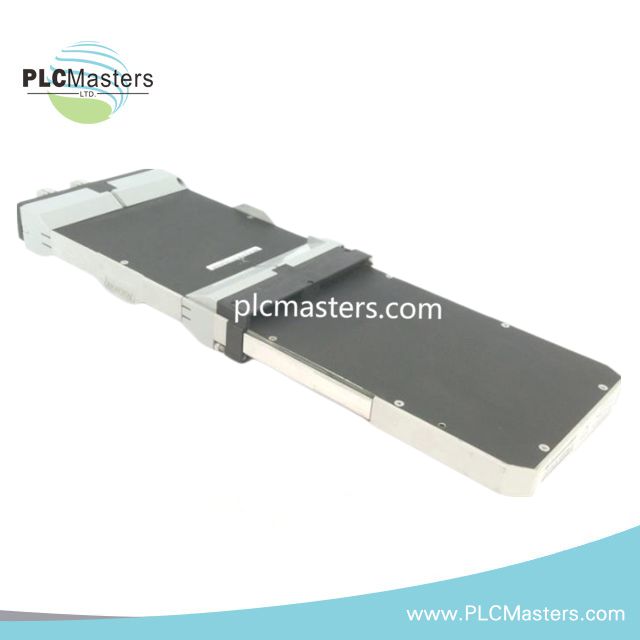

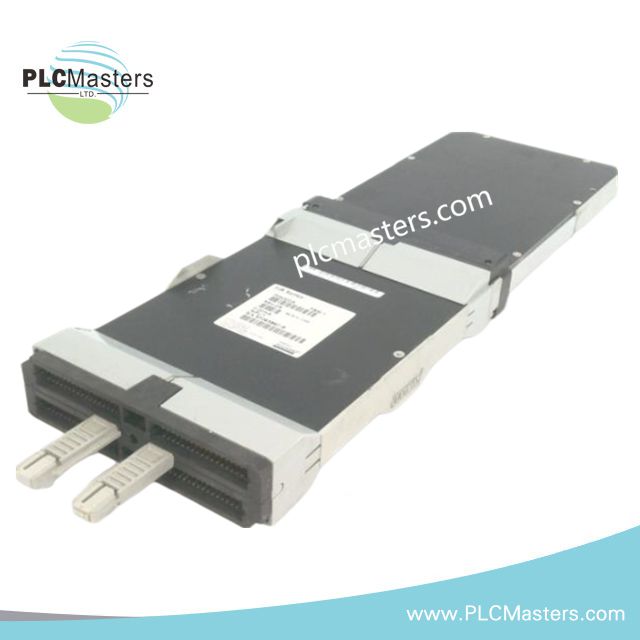

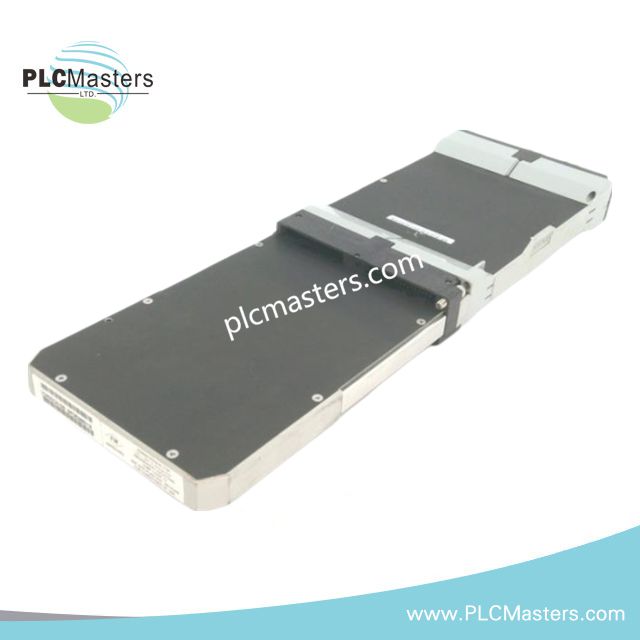

Foxboro P0400DA Analog Input Module

Product Description

The Foxboro P0400DA is an FBM1 analog input module built for industrial automation systems that require dependable current-loop signal acquisition. It offers eight isolated analog input channels that support 0–20 mA and 4–20 mA devices, enabling accurate measurement from transmitters and field sensors. The module integrates seamlessly into the Foxboro I/A Series Distributed Control System and delivers stable, noise-resistant data collection in demanding environments. Moreover, its robust electronics support long operating cycles in facilities where reliability directly impacts production continuity. In addition, the P0400DA provides flexible configuration options that help engineers adapt channel settings to specific process needs without disrupting running operations.

Key Benefits and Functional Highlights

The P0400DA delivers high-precision current measurement that helps plants maintain stable control performance. Each channel is galvanically isolated, reducing noise coupling and ensuring consistent readings across mixed field conditions. Moreover, the module supports both externally powered and loop-powered devices, giving teams freedom to integrate legacy and new components. Fast software-adjustable conversion settings allow engineers to tune update rates for either speed or accuracy. Therefore, the P0400DA works effectively in both dynamic control loops and slow-moving process applications. Its redundant Fieldbus communication path strengthens system resilience and minimizes the risk of data loss during network disturbances.

Technical Specifications

Model: P0400DA
Type: FBM1 Analog Input Interface Module
Input Channels: Eight isolated analog input channels
Input Range: 0–20.4 mA DC
Supported Devices: 4–20 mA transmitters and self-powered sources
Accuracy: ±0.05% of span
Resolution: 12 to 15 bits, software configurable
Conversion Time: Fully software configurable
Isolation: Channel-to-channel isolation
Communication: Redundant Fieldbus interface
Main Type: Fieldbus I/A Series
Sensor Support: Two-wire analog sensors per channel
Weight: 2.00 lbs
Application Category: DC analog input signal acquisition

Typical Applications and System Integration

This module integrates into Foxboro I/A Series DCS architectures where stable current-loop acquisition is required. It is widely deployed in oil and gas production, chemical plants, pharmaceutical manufacturing, and power generation facilities. For instance, engineers use it to collect reliable data from flow transmitters, pressure sensors, tank-level monitors, and analytical instruments. Its isolation design helps reduce ground-loop issues that often occur in mixed-potential installations. Moreover, the module’s predictable performance supports advanced control strategies that rely on consistent analog measurements.

Reliability, Support, and Maintenance

The P0400DA is engineered for long-term service in harsh operating conditions. Its rugged design supports continuous uptime, and the module’s diagnostic features help teams identify signal or wiring abnormalities quickly. In addition, most suppliers offer standard one-year warranties to ensure dependable lifecycle performance. Routine inspection of wiring integrity and Fieldbus communication health typically enhances module longevity.

FAQ

Q1: Can the P0400DA handle both loop-powered and self-powered transmitters?
A1: Yes, each channel accepts 4–20 mA loop-powered devices and self-powered 20 mA sources.

Q2: Does the module provide isolation for every channel?
A2: Yes, every channel is individually isolated to prevent noise interference and ground-loop issues.

Q3: Is the resolution configurable for different applications?
A3: Yes, engineers can select between 12 and 15 bits depending on speed and accuracy requirements.

Q4: Can the module be used in redundant Fieldbus architectures?
A4: Yes, it supports redundant Fieldbus communication for high-availability systems.

Q5: What industries commonly use the P0400DA?
A5: It is widely used in oil and gas, chemical processing, power generation, and pharmaceutical plants.
