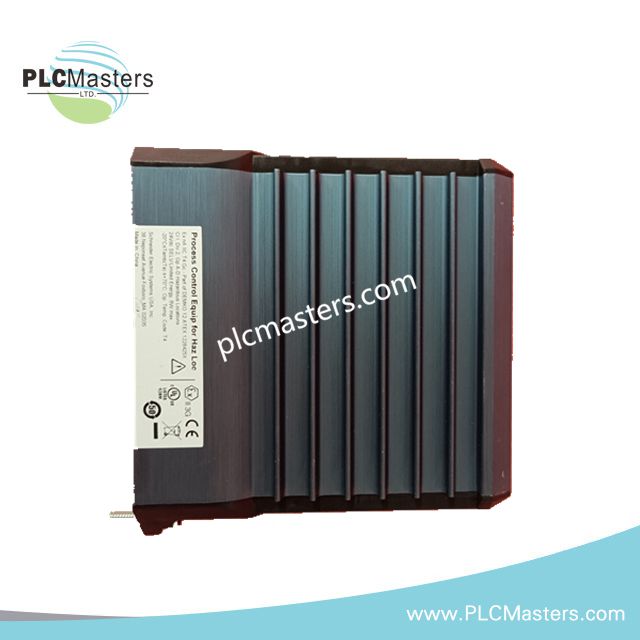

Foxboro P0914SG-OA 16-Channel Discrete I/O Module | I/A Series
$177.00
$350.00
Description
Overview
The P0914SG‑OA from Foxboro (Schneider Electric) is a 16-channel Fieldbus I/O module for the I/A Series Distributed Control System (DCS). Primarily configured as a discrete input/output module, it supports 24 VDC digital signals with galvanic isolation, integrated diagnostics, and redundancy capabilities. The module is engineered for mission-critical industrial environments, ensuring reliable operation in oil & gas, petrochemical, power generation, and manufacturing applications.
Technical Specifications
General Information
| Parameter | Specification |
|---|---|
| Model | P0914SG‑OA |
| Manufacturer | Foxboro |
| Product Type | 16-Channel Discrete I/O Module (FBM) |
| System Compatibility | Foxboro I/A Series DCS |
| Country of Origin | USA |
I/O Characteristics
Primary (Discrete I/O)
-
16 configurable channels (input or output)
-
Signal type: 24 VDC discrete
-
Input voltage range: 18–30 VDC
-
Output voltage range: 18–30 VDC
-
Output current per channel: Up to 0.5 A
-
Total output current: Up to 8 A shared across channels
-
Channel-to-channel and channel-to-system galvanic isolation
-
Built-in diagnostics for channel health and fault detection
-
Redundancy support with dual-FBM configuration
Secondary / Alternative Listing
-
Some sources describe the module as analog input supporting 4–20 mA, HART, and J-type thermocouples
-
Intrinsic safety suitable for hazardous areas
-
Operating temperature range: –40°C to +70°C
Electrical & Power
-
Power supply: 24 VDC
-
Power consumption: 3–5 W
Environmental Ratings
| Category | Specification |
|---|---|
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5–95% non-condensing |
Physical Characteristics
-
Dimensions: 132 × 176 × 35 mm
-
Weight: 0.5 kg
-
Compact FBM form factor for dense control cabinets
Key Features
-
16 configurable discrete I/O channels
-
Wide 24 VDC input/output range
-
High-reliability galvanic isolation
-
Integrated diagnostics and fault detection
-
Redundancy support for critical applications
-
Compact design optimized for Foxboro I/A Series DCS
Applications
Ideal for process automation in oil & gas, petrochemical, power generation, and manufacturing facilities. Provides reliable discrete signal control with built-in redundancy for mission-critical systems.
FAQ
Q: Can P0914SG‑OA operate in hazardous areas?
A: Yes, some internal revisions support intrinsic safety for hazardous locations, but the primary configuration is a discrete I/O module.
Q: How does it compare to P0914SG‑OB?
A: The OB variant may include additional analog input capabilities and enhanced diagnostics, while the OA focuses on discrete I/O reliability.
