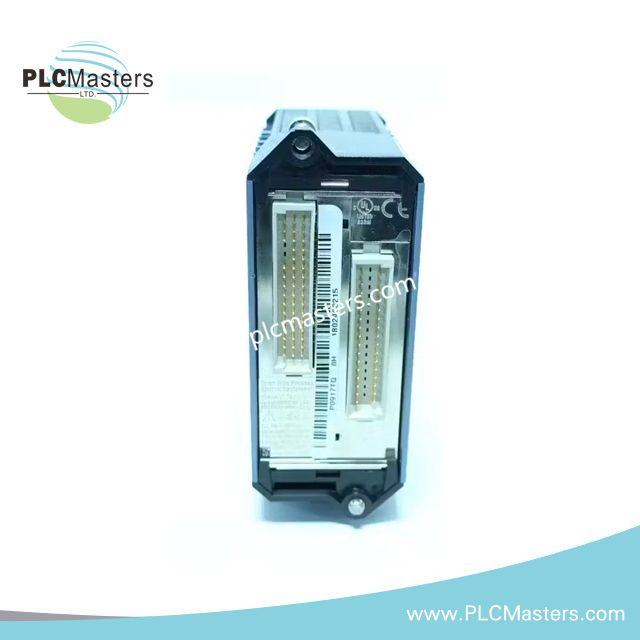

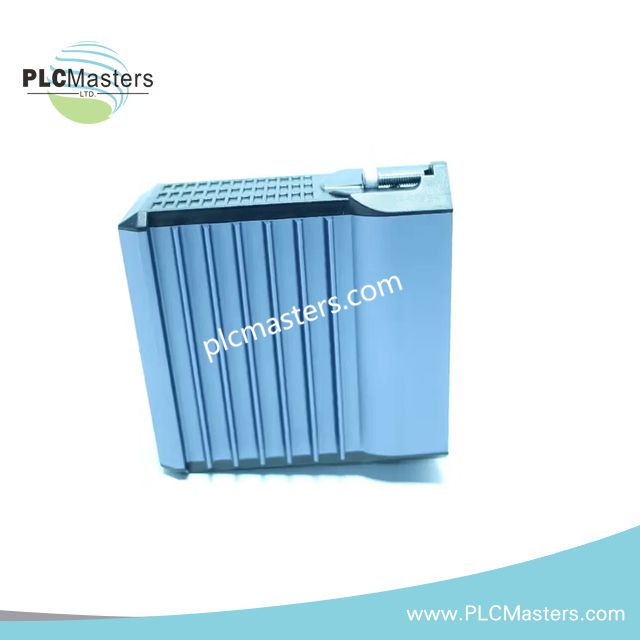

Foxboro P0922BD Distributed Control Processor I/A Series

Product Description

The Foxboro P0922BD Distributed Control Processor is a core control unit within the Foxboro I/A Series DCS, responsible for executing real-time automation strategies across industrial processes. It acts as the processing hub for control loops, logic execution, and plant-wide data handling.

This processor is engineered to maintain continuous operation in critical environments, supporting redundant configurations and high-availability communication paths. Its architecture allows flexible system scaling, enabling deployment from localized control applications to large, distributed process systems.

By integrating control execution, alarm management, and data acquisition into a single platform, the module provides a stable and efficient foundation for complex automation tasks.

Technical Specifications

General Information

• Model: P0922BD

• Manufacturer: Foxboro

• Product Type: Distributed Control Processor (DCP)

• System Platform: Foxboro I/A Series DCS

Control Capabilities

• Real-Time Processing Functions:

• PID (regulatory) control

• Boolean and sequential logic execution

• Timing and event scheduling

• Alarm detection and management

• Process data acquisition and conditioning

• Control Strategy Execution: Deterministic scan cycles for stable operation

• System Scalability: Supports small standalone nodes to large multi-unit systems

Communication & Architecture

• Network Interfaces: Redundant communication paths supported

• System Integration: Interfaces with Foxboro I/O subsystems and fieldbus modules

• Redundancy Support: Designed for fault-tolerant system configurations

• Protocol Compatibility: Supports standard DCS communication frameworks (implementation dependent)

I/O Handling

• Compatible with multiple I/O modules including:

• Analog input/output modules

• Digital input/output modules

• Functional Support:

• Closed-loop PID control

• Discrete logic control

• Sequence management and alarm processing

Electrical Characteristics

• Supply Voltage: 24 VDC

• Power Consumption: Approx. 10 W

• Internal Protection: Designed for stable operation under industrial power conditions

Environmental Conditions

• Operating Temperature: –40°C to +70°C

• Storage Temperature: –40°C to +85°C

• Relative Humidity: 0% to 95% non-condensing

• Vibration Resistance: 0.5 g RMS (5–500 Hz)

• Shock Resistance: 15 g, 20 ms half-sine

Mechanical Specifications

• Dimensions: 130 mm × 30 mm × 160 mm

• Weight: 0.71 kg

• Installation: Mounts within Foxboro system racks or enclosures

• Construction: Industrial-grade design for continuous operation

Key Features

• Centralized execution of real-time control strategies

• Supports redundant architectures for high system availability

• Scalable design adaptable to various plant sizes

• Integrated handling of logic, PID control, and alarms

• Rugged construction for harsh industrial environments

Applications

• Distributed control in oil and gas production systems

• Chemical and petrochemical processing plants

• Power generation and utility automation

• Pharmaceutical manufacturing and batch control

• Large-scale process monitoring and supervisory control

FAQ

Q: What role does the P0922BD play in a DCS system?
A: It functions as the main control processor, executing automation logic, PID loops, and managing process data.

Q: Does it support redundant configurations?
A: Yes, it is designed for use in fault-tolerant architectures with redundant communication and control paths.

Q: Can it work with different types of I/O modules?
A: Yes, it is compatible with a wide range of analog and digital I/O modules within the Foxboro I/A Series ecosystem.
