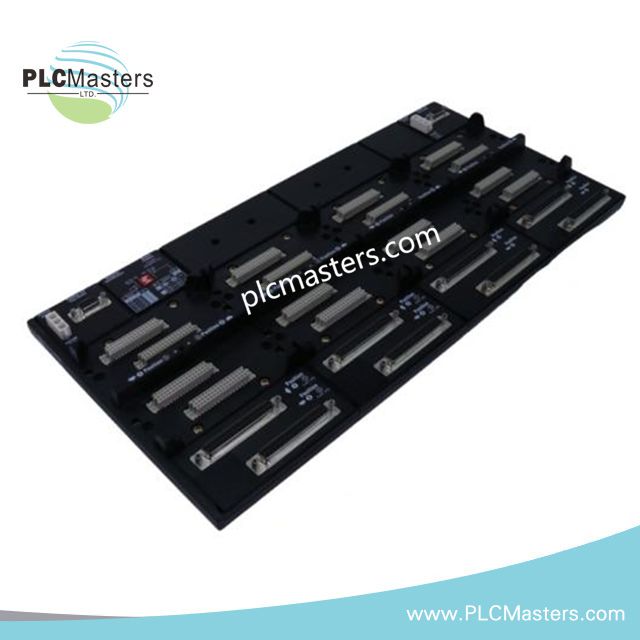

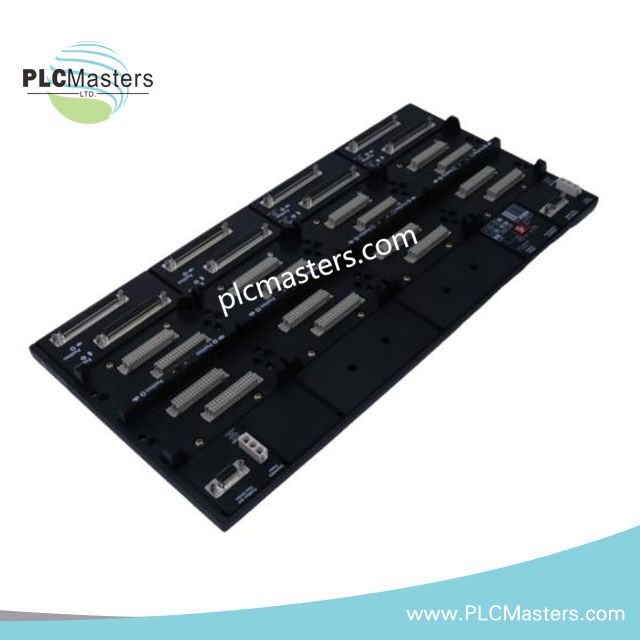

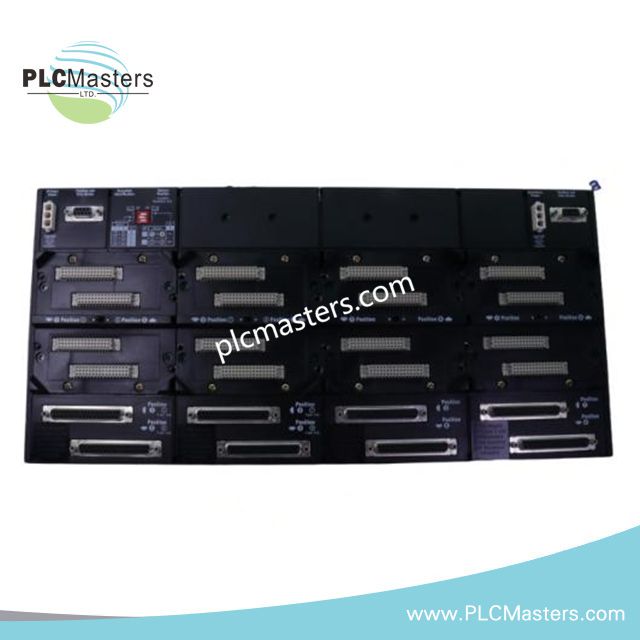

Foxboro P0926JMA 8-Position Modular Baseplate
$177.00
$350.00
Description
Description
The Foxboro P0926JMA is an 8-position modular baseplate engineered for Foxboro I/A Series distributed control systems. It provides secure mounting and seamless connectivity for multiple Fieldbus Modules (FBMs), ensuring stable communication and reliable process control. Moreover, its modular design allows scalable system expansion, adapting efficiently to evolving industrial automation needs. The baseplate supports redundant power inputs, which enhances system reliability and operational safety. For engineers and automation specialists, it delivers precise integration and dependable performance in demanding industrial environments.
Key Features
-
Supports up to 8 Fieldbus Modules (FBMs) for modular control system architecture.
-
Dual Fieldbus and Time Strobe interfaces ensure reliable communication and synchronization.
-
Primary and secondary power inputs provide redundancy for continuous operation.
-
Module position DIP switch enables easy configuration and rapid deployment.
-
Compact and lightweight design reduces installation complexity and saves space.
-
High durability ensures stable operation in harsh industrial conditions.
Technical Specifications
| Feature | Details |
|---|---|
| Product Type | 8-Position Modular Baseplate |
| Compatibility | Foxboro I/A Series Distributed Control System |
| Function | Mounting and connecting Fieldbus Modules (FBMs) |
| Interfaces | Dual Fieldbus and Time Strobe Interfaces |
| Power Input | 24 VDC, Primary and Secondary |
| Current Draw | 100 mA (baseplate only) |
| Configuration | Module Position DIP Switch |
| Dimensions | 260 × 180 × 55 mm |
| Weight | 2.2 lbs |
| Operating Temperature | 0°C to +60°C (some sources: -40°C to +52°C) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 10% to 95% non-condensing |
Typical Applications
-
Distributed control systems (DCS) in oil & gas, chemical, and power generation industries.
-
Modular industrial automation systems requiring scalable Fieldbus integration.
-
Process control environments where precise monitoring and reliable communication are critical.
-
Manufacturing systems demanding low downtime and high system flexibility.
Support & Maintenance
The modular design allows quick replacement of Fieldbus Modules without system interruption. In addition, dual power inputs reduce the risk of failure during critical operations. Routine inspections and standard preventive maintenance maximize service life.
FAQ
Q1: How many Fieldbus Modules can the P0926JMA support?
A1: The baseplate supports up to 8 Fieldbus Modules simultaneously.
Q2: What is the operating temperature range?
A2: It operates typically between 0°C and +60°C; some sources list -40°C to +52°C.
Q3: Does it support redundant power supply?
A3: Yes, it provides primary and secondary power inputs for enhanced reliability.
Q4: Is it compatible with other DCS brands?
A4: The P0926JMA is specifically designed for Foxboro I/A Series systems.
Q5: How is it configured?
A5: Module positions are configured using a DIP switch for fast deployment.
