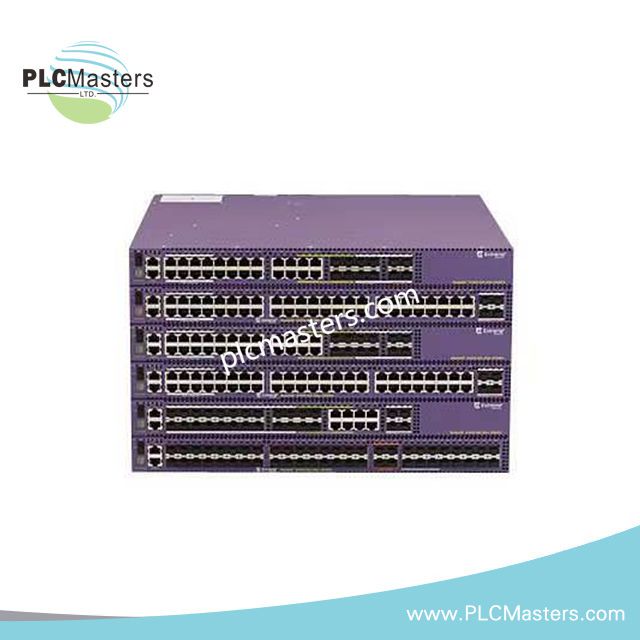

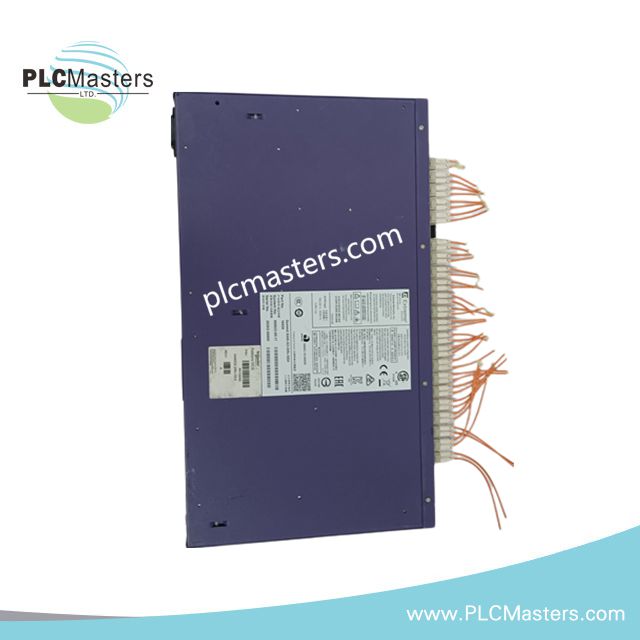

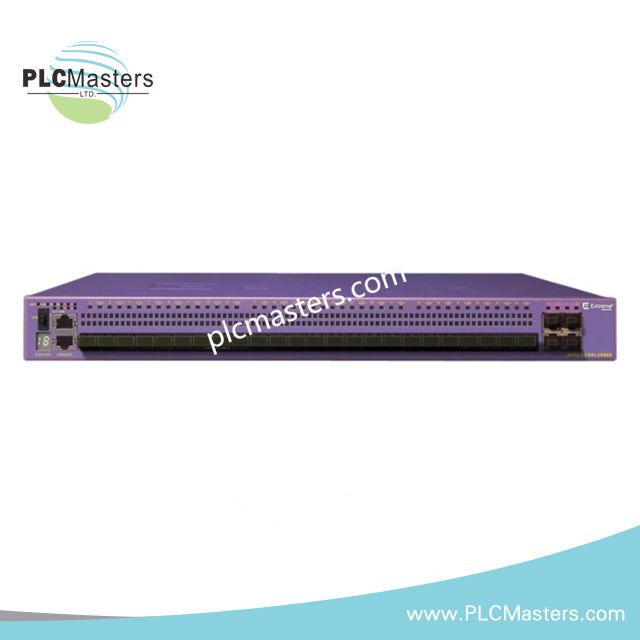

Foxboro RH102AN Network Switch

Overview

The Foxboro RH102AN is a high-performance, redundant Network Switch designed for mission-critical automation networks. It provides 24 fiber SFP ports and 4 copper uplinks, delivering secure, high-speed communication across Foxboro I/A Series and Evo distributed control systems. Moreover, its redundant design with dual power supplies and hot-swappable fans ensures continuous operation in demanding industrial environments. This switch is ideal for building resilient control network backbones, linking controllers, operator workstations, and servers efficiently.

Functional Highlights

• High Port Density: Supports 24 fiber SFP ports and 4 copper uplinks for flexible network deployment.

• Redundant Design: Dual power supplies and hot-swappable fans enhance system uptime.

• Industrial Reliability: Engineered for Foxboro Evo and I/A Series distributed control systems.

• Managed Functions: Offers VLANs, redundancy protocols, diagnostics, and monitoring for network integrity.

• Scalable Backbone: Gigabit uplinks enable high-speed plant-wide communication.

• Environmentally Robust: Operates reliably in temperatures from -20°C to +70°C and humidity up to 95%.

Technical Specifications

• Product Type: Network Switch

• Model Number: RH102AN

• Ports: 24 × SFP (1G fiber) + 4 × 10/100/1000BASE-T copper uplinks

• Switching Capacity: Wire-speed Fast Ethernet and Gigabit switching

• Redundancy: Dual power supplies, hot-swappable fans

• Management: Fully managed, supports VLANs and redundancy protocols

• Form Factor: 1U rack-mountable

• Operating Temperature: -20°C to +70°C (-4°F to +158°F)

• Relative Humidity: 5% to 95% (non-condensing)

• Cooling: Natural convection

• Efficiency: >85% at full load

• Mounting: DIN rail or rack mounting

Typical Applications

• Process Industries: Oil, gas, chemical, and power generation plants requiring reliable communication.

• Distributed Control Systems (DCS): Provides backbone connectivity for Foxboro I/A Series networks.

• Industrial Automation: Connects controllers, operator stations, and servers securely.

• Network Expansion: Adds high-density fiber connectivity to existing plant networks.

FAQ

Q1: Can the RH102AN operate without redundant power supplies?
A1: Yes, it operates on a single power supply, but redundancy is recommended for uninterrupted operation.

Q2: Which SFP modules are compatible with the RH102AN?
A2: Compatibility depends on distance and fiber type (single-mode or multi-mode). Consult Foxboro documentation.

Q3: Can it integrate with non-Foxboro devices?
A3: Yes, as a standard managed Ethernet switch, it supports typical VLAN and network protocols.

Q4: What maintenance is required for long-term operation?
A4: Periodic fan inspection, firmware updates, and monitoring of redundant power supplies ensure optimal performance.
