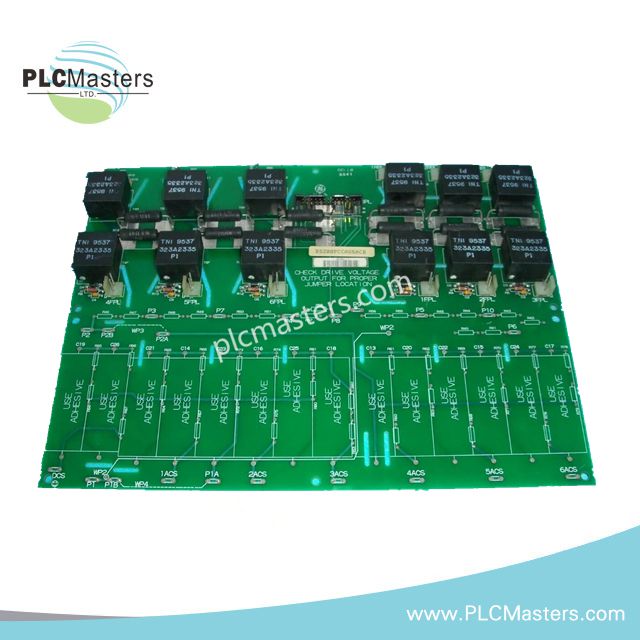

GE DS200PCCAG5ACB Power Connect Card
    GE DS200PCCAG5ACB Power Connect Card

    GE DS200PCCAG5ACB Power Connect Card

    • 1000 In stock

    • Manufacturer: GE Fanuc

    • Product No.: DS200PCCAG5ACB

    • Condition： In stock

    • Product Type: Power Connect Card

    • Product Origin: USA

    • Payment:T/T, Western Union

    • Weight: 300g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":42145380630618,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"DS200PCCAG5ACB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"GE DS200PCCAG5ACB Power Connect Card","public_title":null,"options":["Default Title"],"price":22000,"weight":300,"compare_at_price":42000,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

    Description

    Overview

    The DS200PCCAG5ACB is a Power Connect Card designed by General Electric. It connects the SCR power bridge with the drive control circuitry in the Mark V Speedtronic system. The card uses pulse transformers to deliver gate drive signals to the SCRs. It suits high-horsepower and demanding industrial applications. This ensures reliable and efficient operation in harsh environments.

    Technical Specifications

    • Part Number: DS200PCCAG5ACB

    • Manufacturer: General Electric (GE)

    • Series: Mark V Speedtronic

    • Functional Acronym: PCCA

    • Function: Power Connect Card

    • Application: Interface between SCR bridge and control system

    • Pulse Transformers: Transmit gate pulse signals to SCRs

    • Connectors: 12 plug connectors for gate signals

    • Power Supply Interface: Compatible with DCFB-type power supply board

    • Snubbers: Removed from board; located elsewhere in the system

    • Attenuation String: Not included

    • Jumpers: 4 total (WP4, WP3, JP2, JP1)

    • PCB Coating: Normal coating

    • Functional Revision: A (first), C (second)

    • Artwork Revision: B

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
