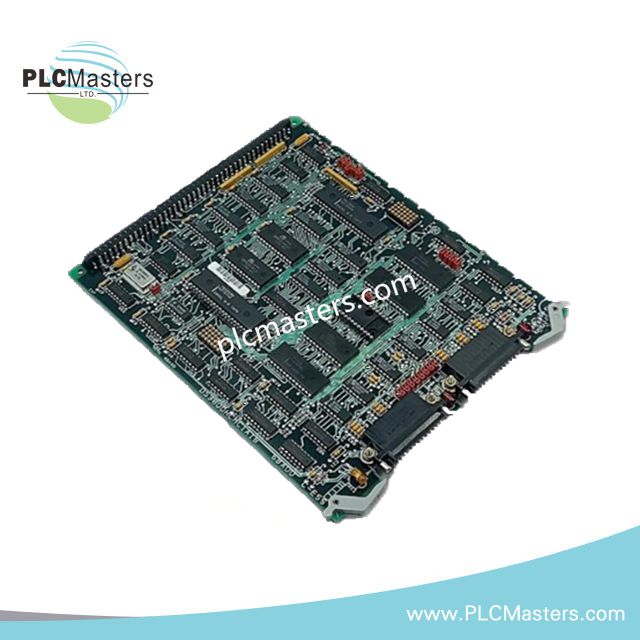

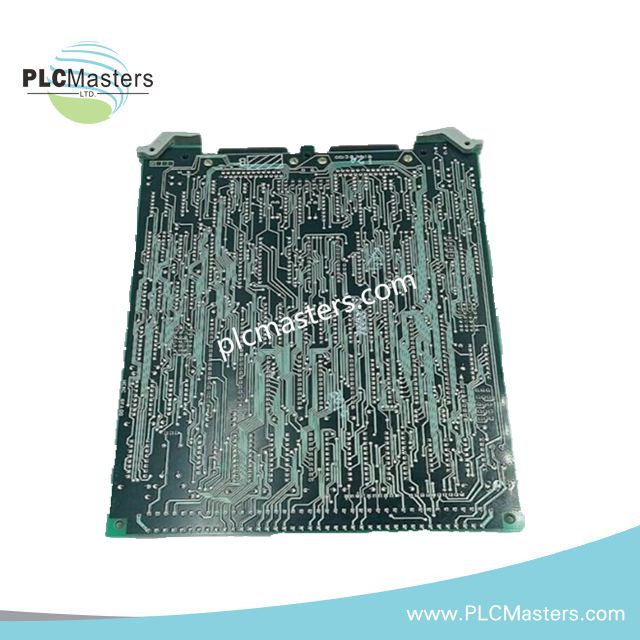

GE DS3800HIOD1H1H Mark IV Digital I/O Board
$159.00
$359.00
Description
The GE DS3800HIOD1H1H is a digital input/output board in the Mark IV DS3800 series, designed for use in GE Speedtronic control systems. Its hardware includes a modular connector, retention levers, two 10-pin connectors, one 40-pin connector, and six jumpers. The board supports ribbon-cable connections for digital signal interfacing, with cable retention clips to secure the connections during installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DS3800HIOD1H1H |
| Brand | General Electric (GE) |
| Series | Mark IV DS3800 |
| Product Type | Digital I/O Board |
| Number of Channels | 12 (as stated in supplied data; channel allocation unverified) |
| Input Voltage Range | 24 VDC |
| Operating Temperature | -40 to +70 deg C |
| Connectors | 2 x 10-pin, 1 x 40-pin |
| Jumper Configuration | 6 jumpers |
| Board Interface | Modular connector |
| Retention Mechanism | Board retention levers and ribbon-cable retention clips |
| Weight | 2 lbs |
Connector Layout and Installation
The modular connector mates with the corresponding connector in the drive rack to establish the board's power and signal connections. Retention levers secure the board in its slot. The two 10-pin connectors and one 40-pin connector provide front-accessible connection points for the associated ribbon cables.
The ribbon-cable retention clips help prevent cables from becoming disconnected. During installation, move the clips clear of the connectors, seat each cable correctly, and return the clips to their retaining positions. Confirm the connector assignments and jumper settings against documentation for the exact board revision before applying power.
Airflow and Thermal Considerations
Ribbon cables can obstruct airflow through the drive enclosure. Cable routing should therefore preserve the intended cooling path. Restricted airflow can cause the internal temperature to rise above the drive's configured threshold, triggering an overtemperature condition and automatic shutdown.
Frequently Asked Questions
Q: How can the DS3800HIOD1H1H be identified?
A: Check the complete part number on the board label, including the D1H1H suffix. The connector layout, six jumpers, and retention hardware provide additional physical identification points.
Q: How many ribbon cables can be connected to this board?
A: The supplied description indicates that up to three ribbon cables may be connected. Confirm the cable assignments and routing for the installed drive configuration before connecting them.
Q: What should be checked when replacing the board?
A: Verify the full part number, connector positions, jumper settings, and drive-rack interface. Also check that the ribbon cables do not obstruct cooling airflow. The exact channel allocation and electrical interface details should be confirmed before commissioning.
