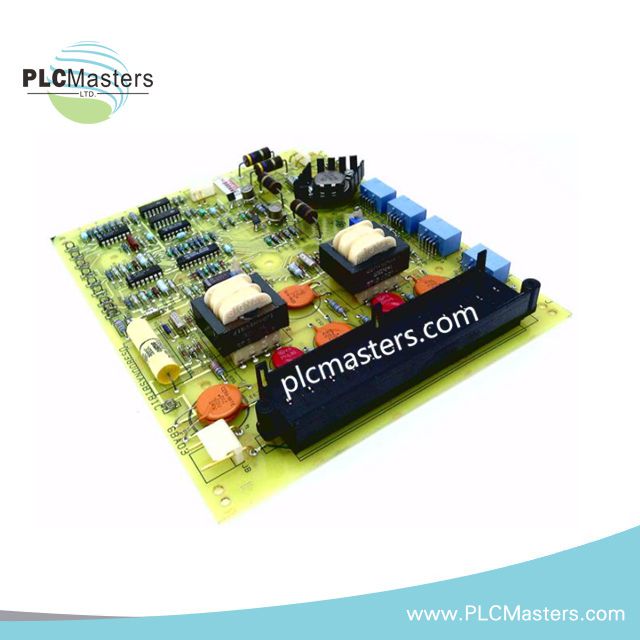

GE DS3800NASB1B1C Analog Synchronization Isolator Board
$159.00
$359.00
Description
The GE DS3800NASB1B1C is identified as an analog synchronization isolator board in the Mark IV control system product family. The supplied specifications describe an 8-channel board with a 24 VDC power requirement, an input current range of 5-20 mA, and voltage or current output options. Its connector arrangement includes one 12-pin connector and four 5-pin connectors.
Signal Configuration
The board is specified for eight channels, with an input current range of 5-20 mA and output ranges of 0-10 V and 4-20 mA. These signal ranges indicate analog signal handling, but the supplied information does not establish whether each channel supports both output types simultaneously or how the inputs map to the outputs.
Electrical and Mechanical Specifications
| Parameter | Specification |
|---|---|
| Model | DS3800NASB1B1C |
| Brand | General Electric (GE) |
| Series | Mark IV |
| Product Type | Analog Synchronization Isolator Board |
| Number of Channels | 8 |
| Power Requirements | 24 VDC |
| Input Current | 5-20 mA |
| Output Range | 0-10 V, 4-20 mA |
| Insulation Resistance | >= 100 Mohm |
| Connectors | One 12-pin connector; four 5-pin connectors |
| Mounting | Standard mounting |
| Dimensions | 150 mm x 100 mm x 30 mm |
| Weight | 1.25 lb |
| Operating Temperature | -40 to +85 deg C |
Installation and Identification
The board is identified by the full ordering number DS3800NASB1B1C and the shorter designation DS3800NASB1B in the supplied product information. Before replacement, verify the complete part number against the installed board and confirm connector positions and wiring against the applicable Mark IV documentation. The stated mounting description does not specify a mounting procedure or hardware requirements.
Frequently Asked Questions
Q: What is the difference between DS3800NASB1B1C and DS3800NASB1B?
A: The supplied listing associates both designations with the analog synchronization isolator board. It does not establish whether they represent interchangeable configurations, so verify the complete ordering number before procurement or replacement.
Q: What output signals are specified for this board?
A: The supplied specifications list 0-10 V and 4-20 mA outputs. Confirm the required signal type, channel assignment, and terminal connections from the applicable wiring documentation before connecting field equipment.
Q: What should be checked before installing a replacement board?
A: Verify the full part number, the 24 VDC power requirement, connector arrangement, and required signal ranges. The available information does not confirm hot-swapping capability or interchangeability between board revisions.
