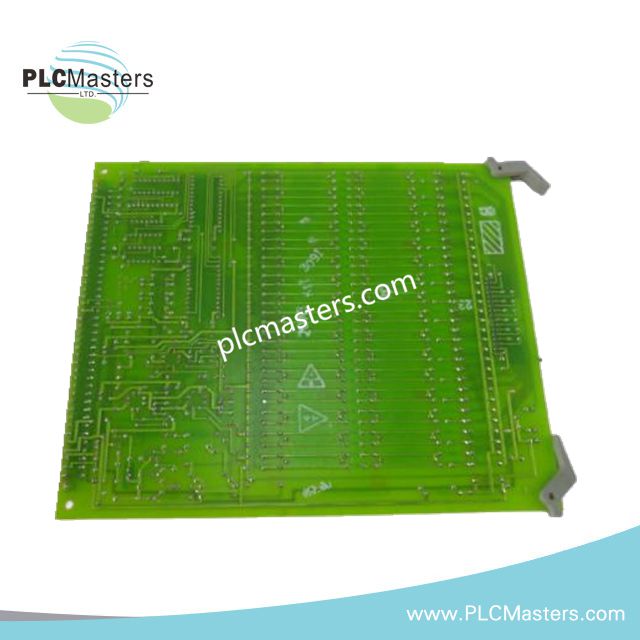

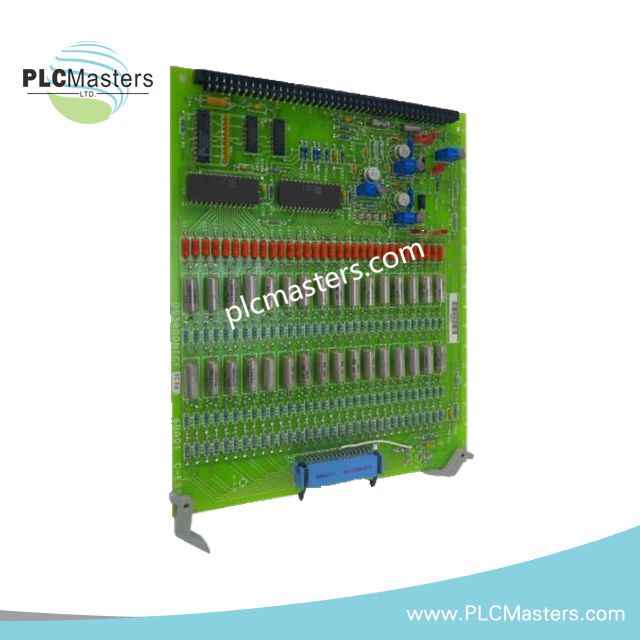

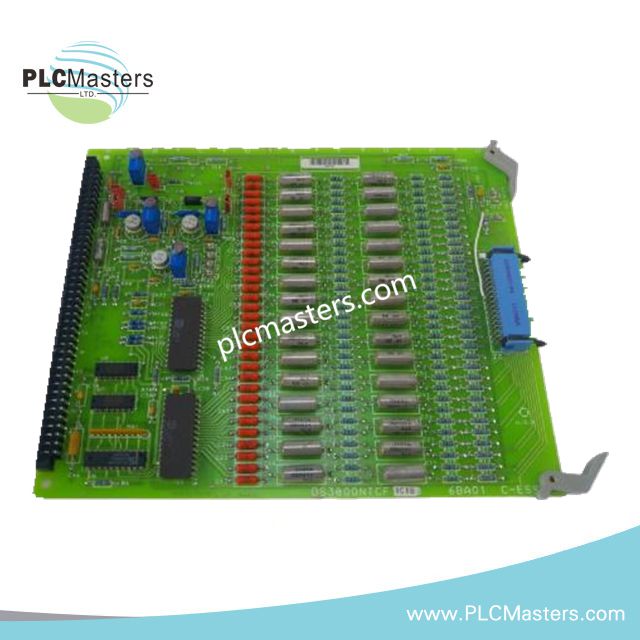

GE DS3800NTCF1C1C Thermocouple Conditioning Board

The GE DS3800NTCF1C1C is a thermocouple conditioning printed circuit board identified in the supplied material as part of the GE Speedtronic Mark V turbine control system. Its stated function is to condition low-level thermocouple signals through amplification, filtering, and cold-junction compensation (CJC) before temperature data is processed by the controller. The supplied specifications also list a plug-in card format, dimensions of 22 x 23 x 5 cm, and a weight of 1.9 kg.

Function and Signal Processing

The NTCF board is described by component references as a thermocouple condition card for the Speedtronic Mark IV system, rather than Mark V. Thermocouple signals are used to monitor turbine temperatures; the resulting temperature information supports control and protection functions. The exact signal-processing stages and cold-junction compensation specifications for this revision require confirmation against model-specific technical documentation.

Board Hardware and Connections

Published component information identifies two board connectors, four potentiometers, five jumper switches, one resistor network, and multiple test points. These features are relevant when identifying the board during inspection or maintenance. Their adjustment procedures and electrical functions should be confirmed from the applicable circuit diagrams before changing any settings.

Technical Specifications

Frequently Asked Questions

Q: Which turbine control system is the DS3800NTCF1C1C associated with?

A: Available component references identify it as a thermocouple condition card for the GE Speedtronic Mark IV system. Confirm the installed system and board markings before ordering a replacement.

Q: What should be checked before replacing this board?

A: Verify the complete part number DS3800NTCF1C1C, connector arrangement, board markings, and installed hardware configuration. Do not assume that a different suffix or a visually similar board is interchangeable without supporting documentation.

Q: What do the potentiometers and jumper switches do?

A: The board contains four potentiometers and five jumper switches. Their specific functions and settings have not been established for this revision, so use the applicable circuit diagram or maintenance documentation before making adjustments.
