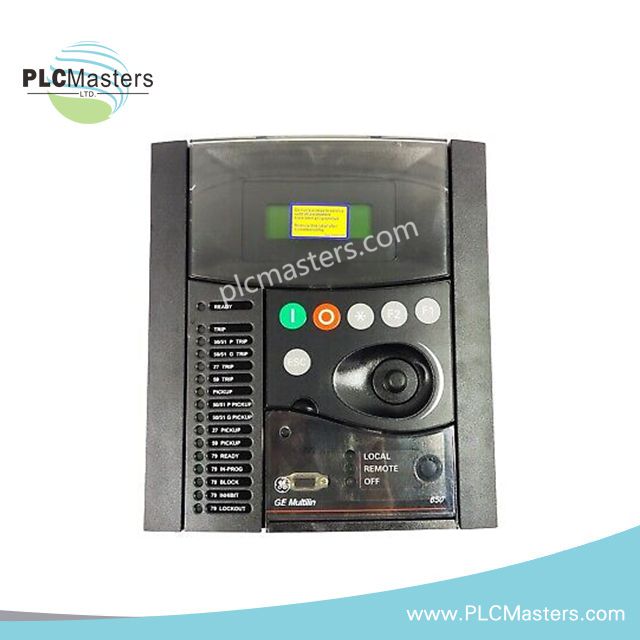

GE F650BABF1GOHI Digital Bay Controller

Overview

The GE F650BABF1GOHI is a powerful digital bay controller from the Multilin F650 series. It offers feeder protection, automation, and bay control for industrial and utility substations. This model supports complex feeder configurations such as ring-bus, double-breaker, and breaker-and-a-half systems.

Technical Specifications

Model Number: F650BABF1GOHI
Series: Multilin F650
Function: Feeder Protection & Bay Control
Input Voltage: 24 VDC
Mounting Type: Panel-mounted or rack-mounted
Display: Graphical LCD with programmable function buttons

Communication Protocols

• Modbus TCP/IP

• IEC 61850 Edition 2

• IEC 60870-5-104

• SNTP

• IRIG-B

Protection Features

• Overcurrent (ANSI 50/51)

• Undervoltage (ANSI 27)

• Directional Power (ANSI 32)

• Arc Flash Detection

• Breaker Failure Protection (ANSI 50BF)

Automation Capabilities

• Load Shedding

• Bus Transfer Logic

• Distributed Generation Interconnect

• Autorecloser Control (ANSI 79)

Time Synchronization

• IEEE 1588 (PTP)

• SNTP

• IRIG-B

I/O Capabilities

• Fully programmable digital inputs and outputs

• Up to 6 user-defined setting groups

Monitoring and Logging

• Fault Locator

• Event Recorder

• Oscillography

• Data Logger

Certifications

• KEMA Certified

• Complies with IEC 61850 Edition 2

Environmental and Mechanical

• Operating Temperature: –40°C to +70°C

• Weight: 5 kg
