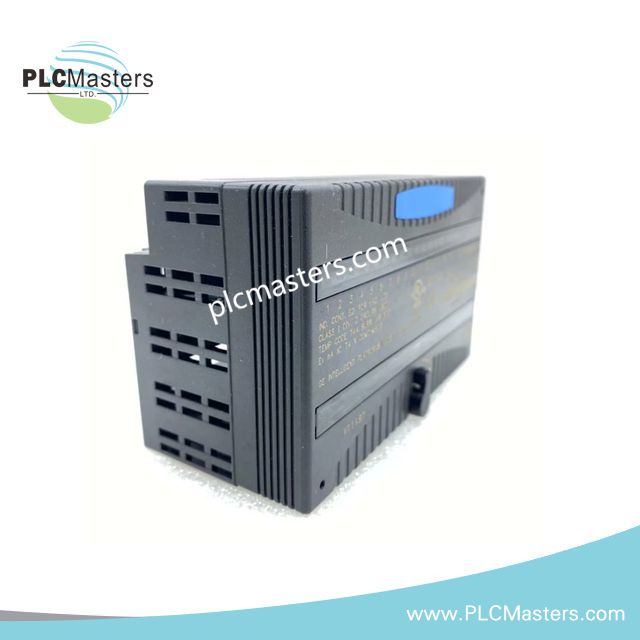

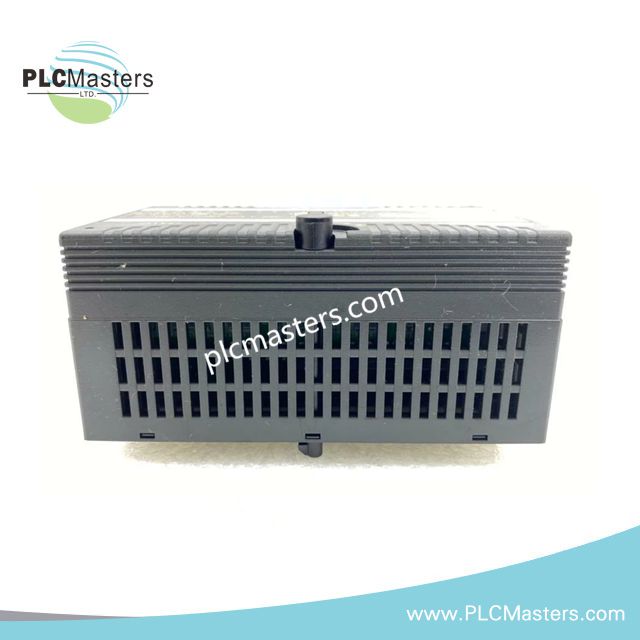

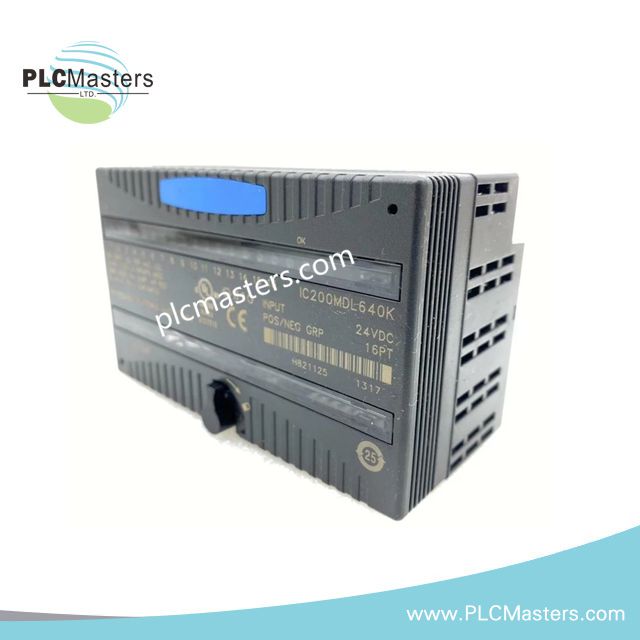

GE Fanuc VersaMax IC200MDL640K Discrete Input Module
$175.00
$565.00
Description
Product Description
The IC200MDL640K is a high-density discrete input module from the GE Fanuc VersaMax PLC family, designed to reliably capture digital signals from field devices such as sensors, switches, and relay outputs. It provides 32 input channels for 24 VDC positive logic signals, offering fast response and robust optical isolation for safe integration into industrial control systems.
This module is suitable for manufacturing lines, process automation, and power system monitoring where compact, reliable, and high-density input solutions are required.
Key Features
-
High-density inputs: 32 discrete input points in a compact module.
-
Positive logic operation: Supports sourcing-type 24 VDC signals.
-
Optical isolation: Protects PLC and downstream electronics from electrical noise.
-
Fast response: Typically under 1 ms input detection.
-
VersaMax integration: Fully compatible with GE Fanuc PLC systems for modular expansion.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | IC200MDL640K |
| Module Type | Discrete Input Module |
| PLC Series | GE Fanuc VersaMax |
| Input Channels | 32 Points |
| Nominal Voltage | 24 VDC Positive Logic |
| Input Voltage Range | 0–30 VDC |
| Input Current | ~7 mA at 24 VDC |
| Input Characteristics | Sourcing-type, positive logic |
| Isolation | Optical, channel-to-backplane |
| Response Time | <1 ms typical |
| Backplane Current Draw | ~80 mA |
| Dimensions | 66.8 × 110 × 50 mm |
| Weight | 0.5 kg |
Applications
-
Industrial automation: assembly lines, machine control
-
Process control: valve and pump monitoring
-
Power systems: signal acquisition for monitoring and control
-
Modular PLC expansion requiring high-density input modules
FAQ
Q: Can the IC200MDL640K handle negative logic signals?
A: This module is designed for positive logic (sourcing-type) 24 VDC signals only.
Q: Is external power required?
A: No external power supply is needed; the module draws power from the VersaMax backplane.
Q: Can multiple modules be used together?
A: Yes, multiple IC200MDL640K modules can be integrated for scalable input capacity.
