GE IC200ALG260A IC200ALG260B Analog Input Module
$180.00
$420.00
Description
Product Overview

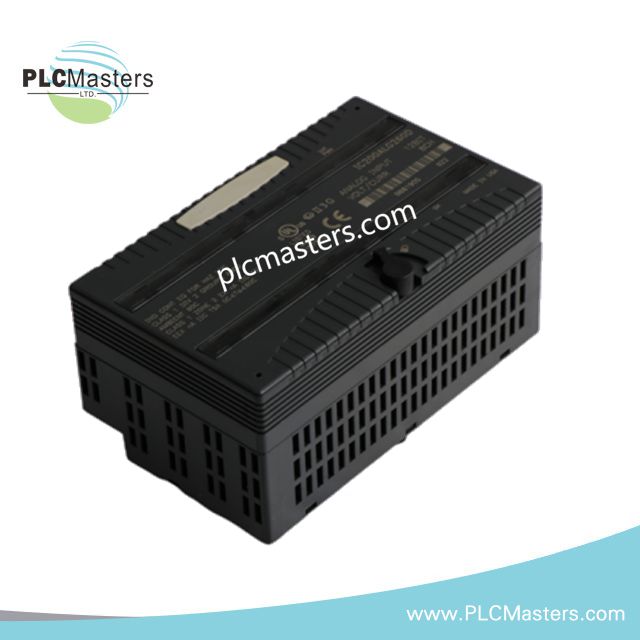

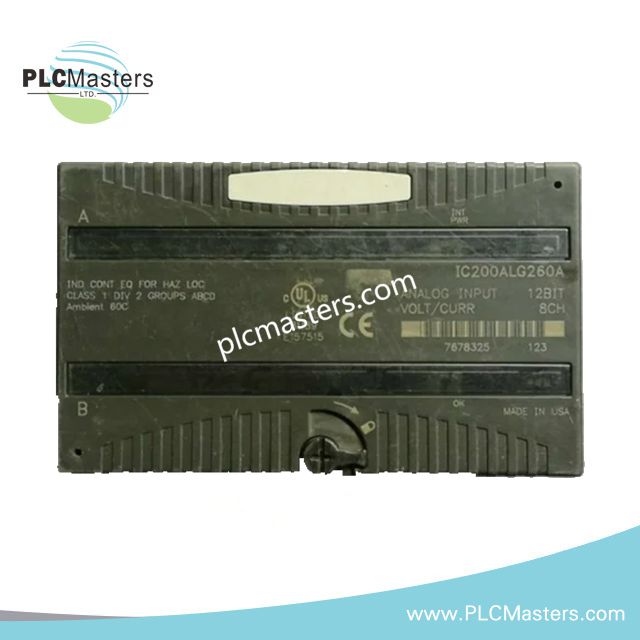

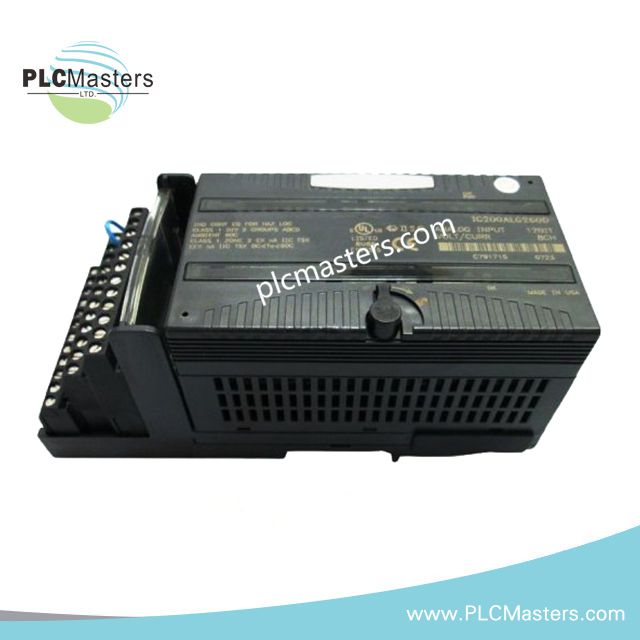

The GE Fanuc IC200ALG260A is an 8-channel analog input module designed for VersaMax PLC systems. It accepts both voltage and current signals, converting them into precise digital values for processing. Moreover, its 12-bit resolution ensures accurate measurement of temperature, pressure, flow, and other continuous industrial variables. The module’s compact design allows easy integration into standard VersaMax I/O slots while maintaining reliable performance in harsh industrial environments. Additionally, factory calibration minimizes setup time, enabling faster deployment and reduced maintenance.
Key Features & Functional Highlights
-
Eight Analog Inputs: Supports single-ended voltage or current signals for versatile sensor integration.
-
High Resolution: 12-bit resolution delivers precise measurement and reliable data acquisition.
-
Flexible Input Ranges: Accepts voltage (-10 to +10 VDC or 0 to 10 VDC) and current (4–20 mA) signals.
-
Fast Response: Module updates each channel in 0.4 ms, with a 5 ms input filter response for stable readings.
-
Optical Isolation: Provides 250 VAC continuous isolation and 1500 VAC for one minute to protect logic circuits.
-
LED Indicators: “OK” and “INT PWR” LEDs provide clear visual status of backplane and internal power.
-
Low Power Consumption: Draws only 130 mA from the 5V bus, ensuring energy-efficient operation.
-
Diagnostics & Error Handling: Detects loss of internal power and retains last state or predefined value in case of module failure.
Technical Specifications
| Specification | Details |
|---|---|
| Module Type | Analog Input Module |
| Number of Channels | 8 single-ended channels |
| Input Signal Types | Voltage (0–10 VDC or -10 to +10 VDC), Current (4–20 mA) |
| Resolution | 12-bit |
| Input Impedance | 100 kΩ for voltage, 250 Ω for current |
| Update Rate | 0.4 ms per channel |
| Filter Response Time | 5 ms |
| Accuracy | ±0.5% of full scale |
| Isolation | Group isolated from logic and other modules |
| LED Indicators | OK, INT PWR |
| Module Size | Standard VersaMax I/O slot |
| Power Consumption | 130 mA @ 5VDC |
| Configuration Parameters | Range select, Mode select via jumpers |
| Diagnostics | Loss of internal power detection |
| Optical Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Channel Crosstalk Rejection | 30 dB minimum |
Typical Applications
-
Continuous process monitoring in industrial plants, including temperature, pressure, and flow measurement.
-
Integration with VersaMax PLCs for automated control and data acquisition systems.
-
Ideal for oil and gas, chemical, food and beverage, water treatment, and power generation industries.
-
Enables predictive maintenance through reliable analog signal monitoring.
Support & Reliability
IC200ALG260A is factory-calibrated and maintenance-free under normal operating conditions. Furthermore, it withstands industrial temperature ranges and electrical noise, ensuring reliable performance over long-term operation.
FAQ
Q1: Can IC200ALG260A handle both voltage and current signals?
Yes, it supports voltage (-10 to +10 VDC or 0–10 VDC) and current (4–20 mA) signals simultaneously.
Q2: Is field calibration required for this module?
No, the module is factory-calibrated for immediate deployment and high-precision operation.
Q3: How fast can the module update input channels?
It updates each channel every 0.4 ms with a 5 ms input filter response for stable readings.
Q4: What industries is this module suited for?
It is suitable for oil and gas, chemical, food and beverage, water treatment, and power generation applications.
Q5: How does the module handle errors or power loss?
The module holds the last state or reverts to a predefined value in case of errors or internal power loss.
