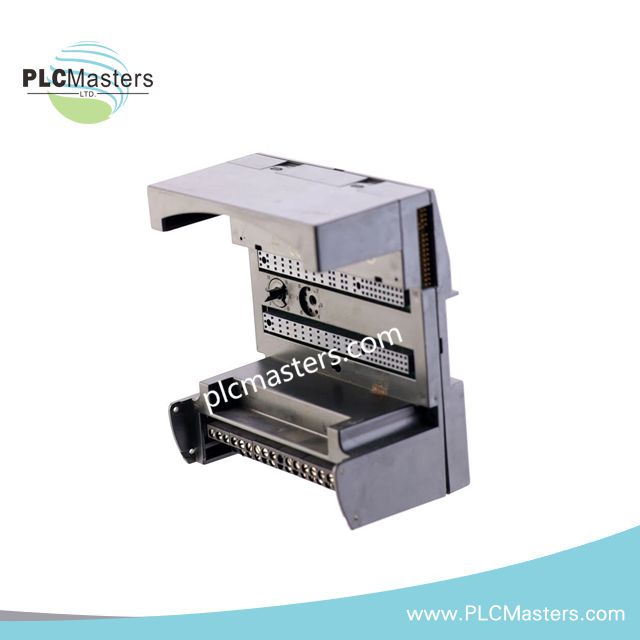

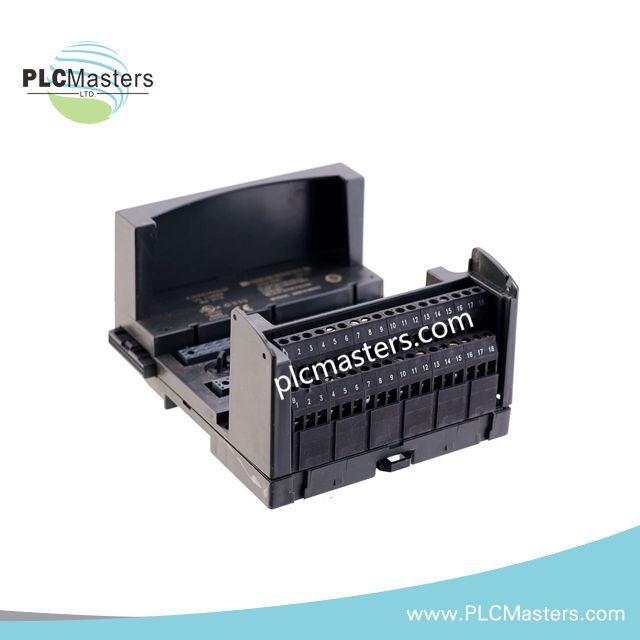

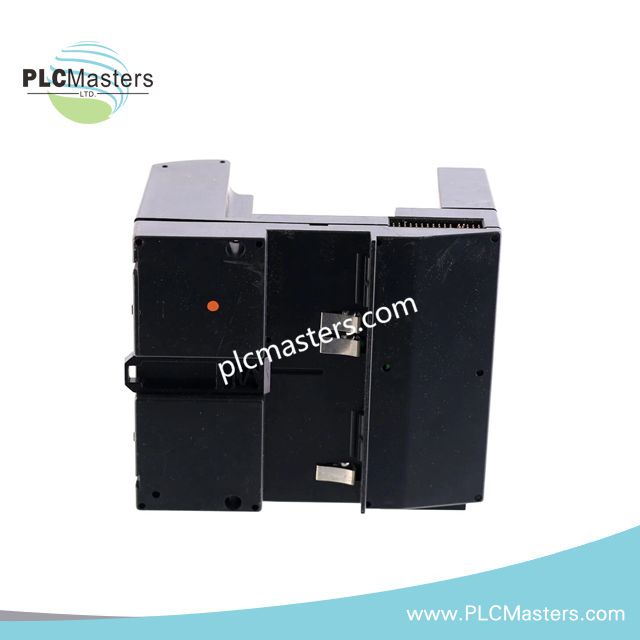

GE IC200CHS002K IC200CHS002M Box-Style I/O Carrier Module
$180.00
$420.00
Description
Description
The GE IC200CHS002K is a box-style I/O carrier module from the GE VersaMax series, engineered for modular and reliable control system integration. It provides a secure mounting and wiring base for VersaMax I/O modules, supporting both digital and analog signal connections. With 36 high-quality barrier-style terminals, it ensures robust field wiring, excellent signal integrity, and high current capacity for demanding automation environments.
This carrier is designed for industrial applications that require compact, scalable, and easily maintainable I/O configurations. Its rugged construction and DIN rail mounting design make it ideal for environments where durability and quick module replacement are essential.
Key Features
-
Box-Style Carrier Design: Offers strong mechanical support and efficient wiring for VersaMax I/O modules.
-
High Current Capacity: Supports up to 2 A per point and 8 A for power or common terminals.
-
Flexible Wiring Options: Compatible with solid or stranded copper wire from 0.36 mm² to 2.1 mm² (AWG #22 to #14).
-
Simplified Installation: DIN rail mounting and carrier interface connectors enable fast backplane installation.
-
Rugged Industrial Build: Operates reliably across temperatures from -40°C to +70°C, ideal for harsh conditions.
-
Optimized Layout: 36 integrated terminals arranged in dual groups (A1–A18, B1–B18) for organized wiring.
-
Enhanced Safety: Handles up to 300 VAC transient voltage, ensuring protection against electrical surges.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200CHS002K |
| Series | GE VersaMax |
| Type | Box-Style I/O Carrier Module |
| Terminal Configuration | 36 barrier-style terminals (A1–A18, B1–B18) |
| Wire Compatibility | Solid or stranded copper, 0.36–2.1 mm² (AWG #22–#14) |
| Dual Wire Size | Up to 0.86 mm² (AWG #18) |
| Current Rating (per point) | 2 A |
| Power/Ground Current Rating | 8 A |
| Voltage Range | 0–264 VAC |
| Transient Voltage Rating | Up to 300 VAC |
| Power Consumption | 805 mA typical; 2.48 W |
| Heat Dissipation | 8.8 BTU/hour |
| Mounting Type | DIN rail (horizontal orientation) |
| Mounting Clearance | Top/bottom: 2 in (5.1 cm); Side: 1 in (2.54 cm) |
| Enclosure Depth | Minimum 70 mm |
| Dimensions (L×H×D) | 110.5 × 70 × 139.7 mm |
| Weight | 0.69 lbs |
| Operating Temperature | -40°C to +70°C |
| Connector Type | Carrier interface connector for backplane communication |
Typical Applications
The GE IC200CHS002K carrier is widely used in industrial automation, manufacturing, and process control systems. It supports distributed I/O setups in:
-
Factory automation and assembly lines
-
Process control panels and monitoring systems
-
Power generation and distribution control
-
Water treatment and waste management facilities
-
Building automation and HVAC control systems
Its flexibility allows system engineers to design scalable architectures while ensuring easy maintenance and reliable performance.
Support & Maintenance
GE VersaMax modules are known for their long operational life and low maintenance needs. The IC200CHS002K offers straightforward replacement and minimal downtime, with easy terminal access and modular design. Routine inspection of wiring connections ensures continued performance and compliance with industrial safety standards.
FAQ
Q1: What type of I/O modules can be installed on the IC200CHS002K?
A1: It supports all standard VersaMax digital and analog I/O modules compatible with box-style carriers.
Q2: Can I use dual wires on one terminal?
A2: Yes, dual copper wires up to 0.86 mm² (AWG #18) can be used.
Q3: What is the maximum operating voltage?
A3: The module supports up to 264 VAC operating voltage and 300 VAC transient rating.
Q4: Is it suitable for harsh environments?
A4: Yes, it operates reliably between -40°C and +70°C and is designed for industrial-grade durability.
Q5: How do I mount the module?
A5: It mounts horizontally on a standard DIN rail with proper clearance for ventilation.
