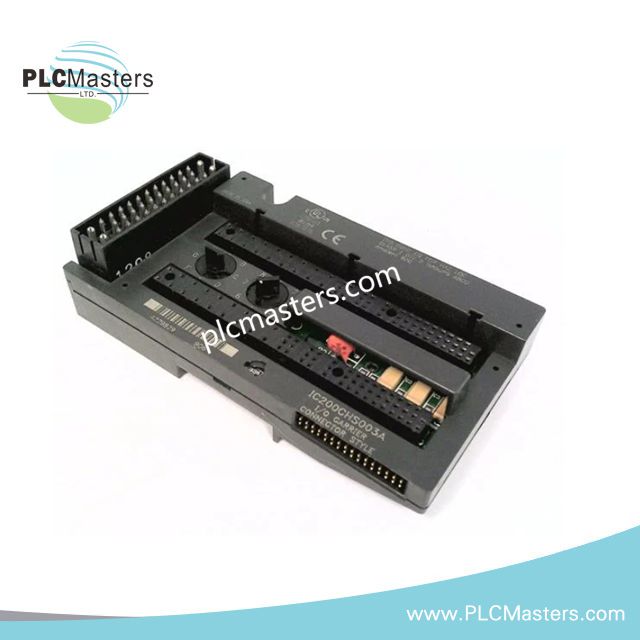

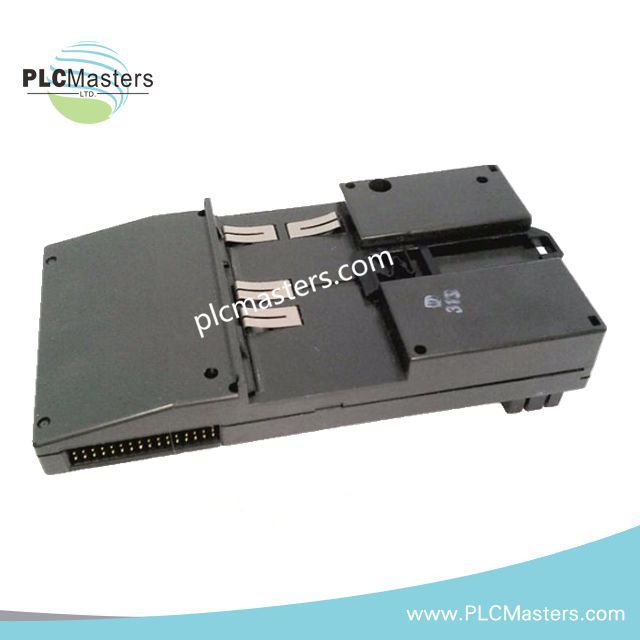

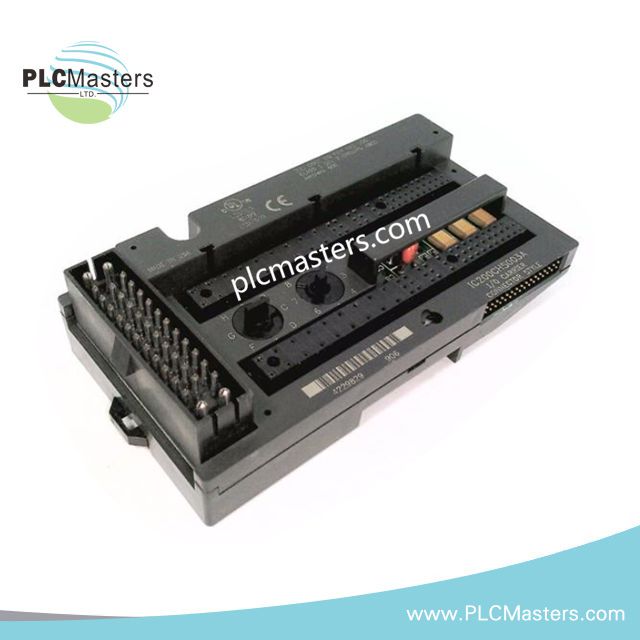

GE IC200CHS003 Connector-Style I/O Carrier Module
$180.00
$420.00
Description
Overview
The GE IC200CHS003 is a connector-style I/O carrier module from the VersaMax series, designed to simplify wiring and enhance modularity in industrial control systems. It provides a robust and compact base for mounting VersaMax digital and analog I/O modules, using a 36-pin connector interface for fast, reliable connections.
This carrier supports flexible installation on DIN rails and offers secure field wiring through pre-wired cables or terminal blocks. Its rugged construction ensures dependable performance in demanding industrial environments, delivering both reliability and ease of maintenance.
Functional Highlights
-
Streamlined Connectivity: The 36-pin connector design reduces wiring errors and installation time.
-
Flexible Mounting Options: Compatible with both DIN rail and panel mounting systems.
-
High Current Capacity: Each I/O point supports up to 2 A, while common terminals handle up to 8 A.
-
Wide Compatibility: Works seamlessly with GE VersaMax discrete and analog I/O modules.
-
Industrial Durability: Built to operate reliably in harsh conditions with IP20 protection.
-
Compact and Modular Design: Supports space-efficient system architectures in distributed control environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE Fanuc Emerson |
| Model Number | IC200CHS003 |
| Product Type | Connector-Style I/O Carrier |
| Product Line | VersaMax Series |
| Connector Type | 36-pin connector interface |
| Wiring Method | Pre-wired cables or terminal blocks |
| Mounting Options | DIN rail or panel mount |
| Module Orientation | Vertical installation |
| Operating Voltage | Up to 264 VAC |
| Transient Voltage | 300 VAC maximum |
| Current per I/O Point | 2 A |
| Current per Common Terminal | 8 A |
| Environmental Protection | IP20 |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Weight | 0.24 lbs |
| Dimensions | Approximately 110 mm × 70 mm × 140 mm |
Typical Applications
The IC200CHS003 carrier is ideal for industrial automation systems that demand modular scalability and simplified wiring. Common applications include:
-
Manufacturing lines using distributed PLC architectures
-
Process control systems requiring modular I/O expansion
-
Equipment monitoring systems with compact rack layouts
-
OEM machinery integrating GE VersaMax I/O modules
Moreover, the module’s robust design ensures dependable operation in environments with vibration, electrical noise, or temperature variation.
Support & Maintenance
GE provides comprehensive technical documentation and long-term support for the VersaMax product family. The IC200CHS003 requires minimal maintenance and supports hot-swappable I/O modules, reducing system downtime during replacement or expansion. Therefore, it delivers both operational continuity and reduced maintenance costs.
FAQ
Q1: What is the primary function of the IC200CHS003?
A1: It serves as the mounting and wiring base for VersaMax digital and analog I/O modules using a 36-pin connector.
Q2: Can this carrier be used with both discrete and analog modules?
A2: Yes, the IC200CHS003 supports both types of VersaMax I/O modules.
Q3: What mounting methods are supported?
A3: It can be mounted on a DIN rail or a control panel for flexible installation.
Q4: What is the maximum operating temperature?
A4: The module can operate reliably from 0°C to +60°C.
Q5: Does the carrier require external power?
A5: No, it serves as a passive base that routes signals between field devices and the I/O module.
