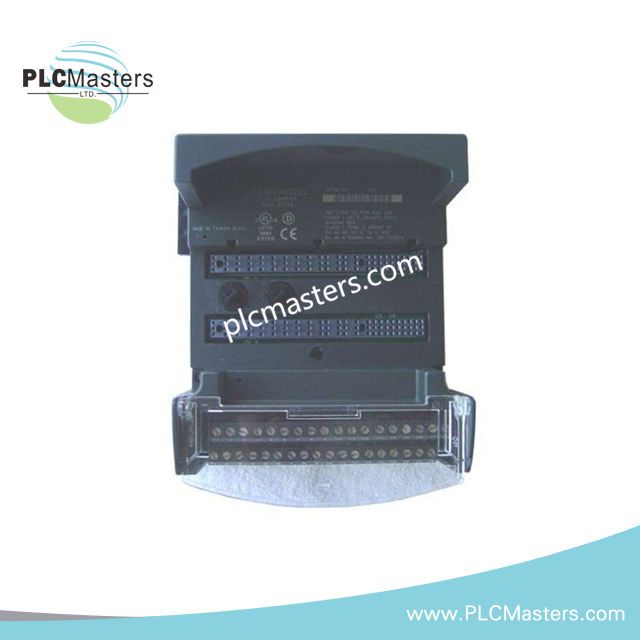

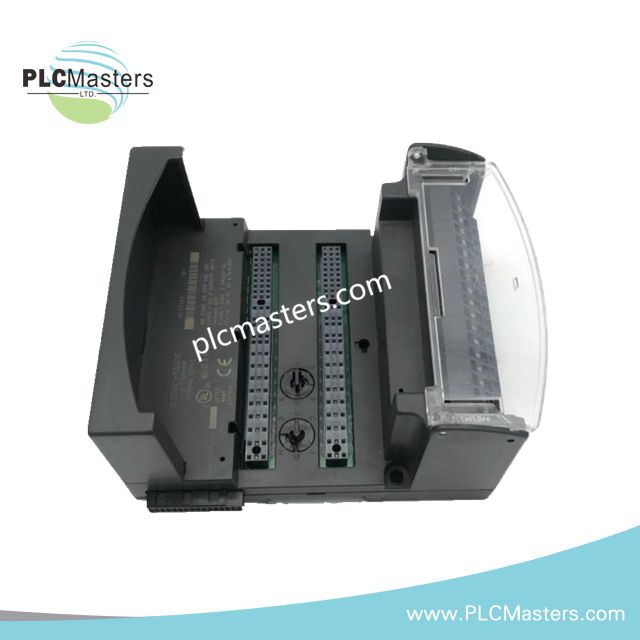

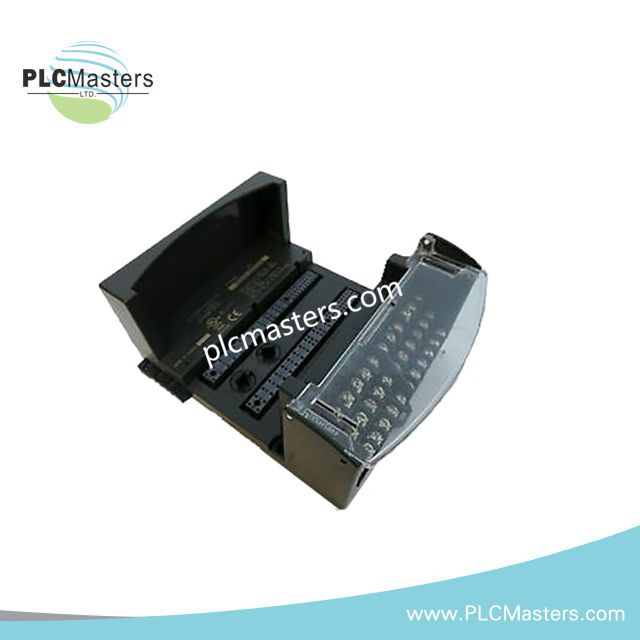

GE IC200CHS014 IC200CHS014G Precision Thermocouple I/O Isolation Box

Product Description

The GE Fanuc VersaMax IC200CHS014 is a precision thermocouple I/O isolation box designed for industrial automation systems. It provides secure and isolated connections for multiple thermocouple types, ensuring accurate temperature measurements even in harsh environments. Moreover, its compact box-style design simplifies integration with VersaMax I/O modules while maintaining full electrical isolation.

This terminal block supports various thermocouple types including J, K, T, E, S, R, B, N, C, and D, allowing versatile deployment across different industrial applications. It delivers fast response times, high measurement accuracy, and reliable signal conditioning for temperature monitoring and process control. In addition, the IC200CHS014 is engineered for DIN rail mounting, offering straightforward installation and maintenance in factory automation systems.

With robust IP67 protection, this module withstands dust, water, and other environmental challenges. Therefore, it ensures long-term reliability for continuous operation. The IC200CHS014 is UL, CE, and CUL certified, reflecting its high quality and compliance with international industrial standards.

Key Features & Benefits

• Thermocouple Compatibility: Supports J, K, T, E, S, R, B, N, C, D types for diverse temperature sensing.

• High Accuracy: ±0.5% of reading ensures reliable temperature monitoring.

• Fast Response: Response time ≤1 ms, minimizing process delays.

• Full Electrical Isolation: Prevents interference between field devices and I/O modules.

• Robust Design: IP67-rated housing protects against dust and water ingress.

• DIN Rail Mounting: Simplifies installation in industrial control panels.

• Compact & Lightweight: Measures 110.5 × 105.4 × 70 mm, weight approx. 0.5 kg.

• Certified & Compliant: UL, CE, and CUL approvals ensure safety and standards compliance.

Technical Specifications

• Manufacturer: GE Fanuc

• Model: IC200CHS014

• Product Type: Thermocouple Compensation Box-Style I/O Terminal

• Weight: 0.49 lbs

• Supported Thermocouple Types: J, K, T, E, S, R, B, N, C, D

• Accuracy: ±0.5% of reading

• Response Time: ≤1 ms

• Operating Voltage: 24V DC

• Isolation: Full I/O electrical isolation

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +85°C

• Protection Rating: IP67 (dust-tight and waterproof)

• Mounting: DIN rail

• Single Wire Size: 2.1 to 0.36 mm²

• Dual Wire Size: Up to 0.86 mm²

• Box-Style Terminals: 36

Typical Applications

• Industrial process temperature monitoring and control.

• Chemical, food & beverage, and pharmaceutical automation systems.

• Harsh environment deployments requiring IP67-rated modules.

• Integration with VersaMax I/O modules for factory automation.

• Thermal process logging and high-accuracy data acquisition.

FAQ

Q1: Which thermocouple types does the IC200CHS014 support?
A1: It supports J, K, T, E, S, R, B, N, C, and D thermocouple types.

Q2: Can this module be installed outdoors?
A2: Yes, its IP67 rating protects against dust and water, suitable for harsh environments.

Q3: What is the response time for temperature signals?
A3: The module responds within 1 ms, ensuring rapid temperature measurement.

Q4: How is it mounted in industrial setups?
A4: It is designed for standard DIN rail mounting for simple and secure installation.

Q5: Is it compatible with all VersaMax I/O modules?
A5: Yes, it integrates seamlessly with connector-style VersaMax I/O modules.
