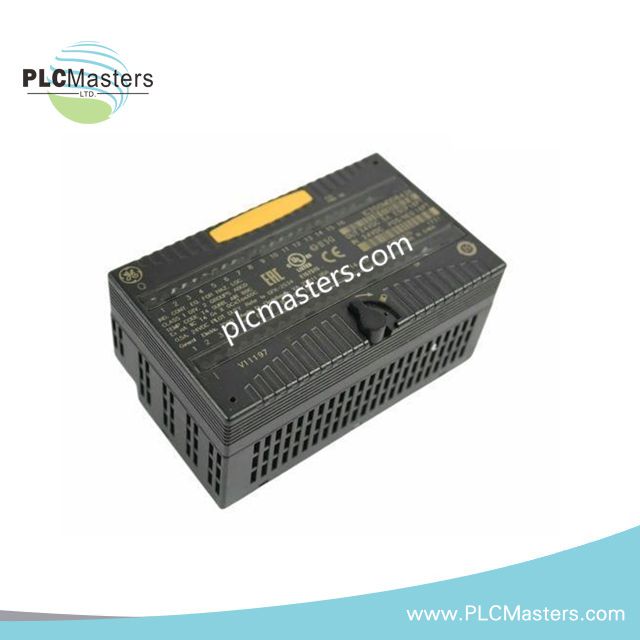

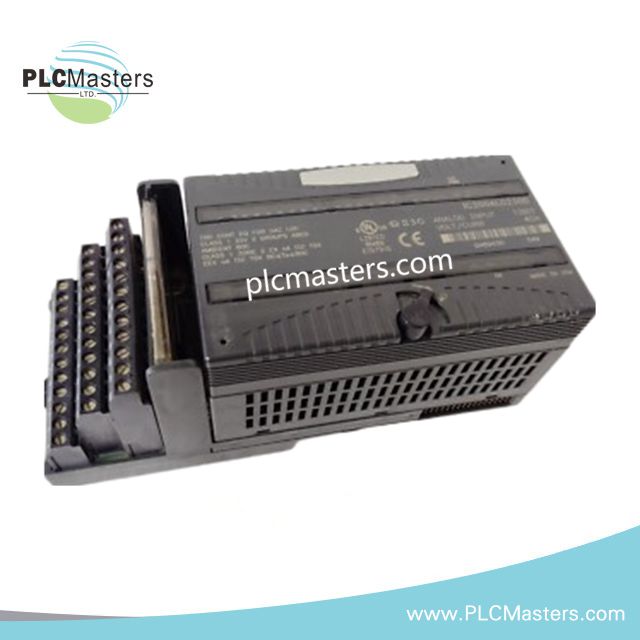

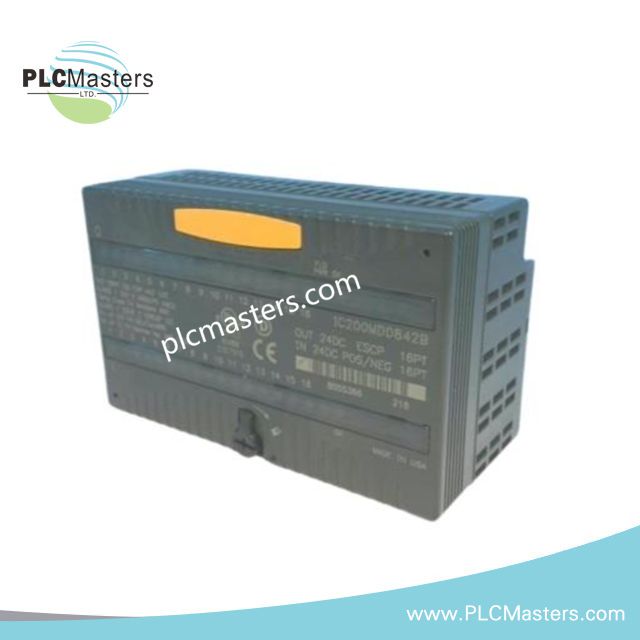

GE IC200MDD842 Discrete Mixed I/O Module

Product Description

The GE IC200MDD842 is a versatile discrete mixed I/O module designed for compact industrial automation systems. It combines 16 digital inputs and 16 digital outputs in a single unit, reducing wiring complexity and saving space. Moreover, its high-density design allows integration into tight control panels without sacrificing performance. This module operates reliably in harsh industrial environments, ensuring precise signal processing for both monitoring and control tasks. In addition, it supports positive logic, making it compatible with standard 24 V DC industrial devices.

Functional Highlights

• Provides 16 digital inputs and 16 digital outputs in one module for efficient I/O management.

• Supports positive logic with nominal 24 V DC inputs and outputs, ensuring compatibility with common industrial devices.

• Equipped with electronic overcurrent protection and short-circuit detection for safe and reliable operation.

• Features LED indicators for easy diagnostics and status monitoring of each I/O point.

• Compact design integrates seamlessly into VersaMax I/O carrier bases, saving panel space.

Technical Specifications

Digital Inputs

• Channels: 16 (grouped in two sets of 8)

• Input Voltage Range: 0–30 VDC (Nominal 24 VDC)

• ON-State Voltage: 15–30 VDC

• OFF-State Voltage: 0–5 VDC

• Input Current: 7 mA typical at 24 VDC

• Input Type: Positive logic

• Isolation: 250 VAC field-to-backplane

Digital Outputs

• Channels: 16

• Output Type: Sourcing (positive logic)

• Output Voltage Range: 10–30 VDC

• ON-State Voltage Drop: <1.0 V at 0.5 A

• Max Output Current: 0.5 A per point, 4.0 A total per module

• Protection: Electronic overcurrent, short-circuit detection with fault indication

Physical & Environmental

• Dimensions: 133.4 × 85.9 × 69.1 mm

• Weight: 0.31 lbs

• Operating Temperature: 0°C to 60°C

• Mounting: VersaMax I/O carrier base

Typical Applications

• Process automation systems requiring mixed digital I/O in a single module.

• Compact control panels for industrial machinery and production lines.

• Signal interfacing in PLC-based control systems, including monitoring and actuation tasks.

• Systems demanding reliable I/O protection and clear diagnostics through LED indicators.

FAQ

Q: What voltage levels does the IC200MDD842 support for inputs and outputs?
A: Inputs operate at 0–30 VDC with a nominal 24 VDC, while outputs range from 10–30 VDC.

Q: Can this module handle short-circuit conditions safely?
A: Yes, it has electronic overcurrent protection and short-circuit detection with fault indication.

Q: How many I/O points does the module provide?
A: It offers a total of 32 I/O points: 16 digital inputs and 16 digital outputs.

Q: Is this module suitable for compact industrial panels?
A: Absolutely, its compact design fits VersaMax I/O carrier bases, saving panel space.
