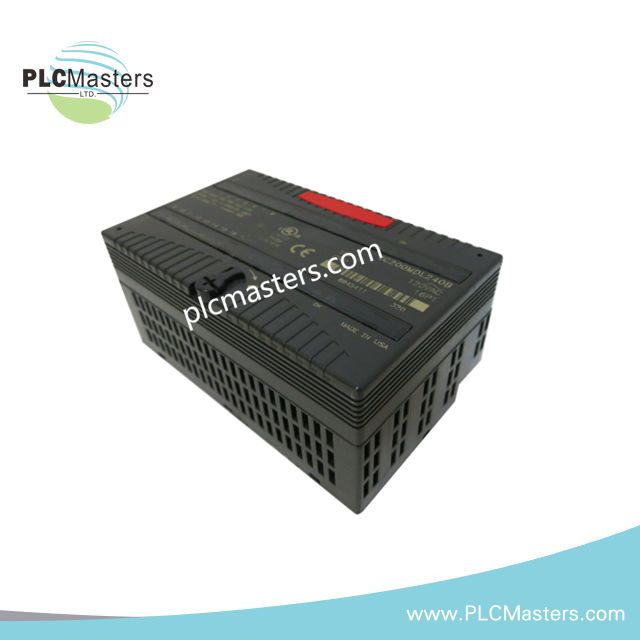

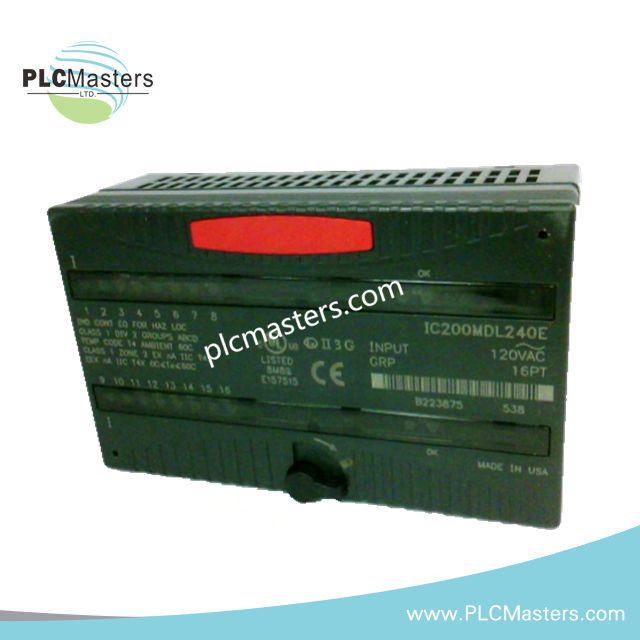

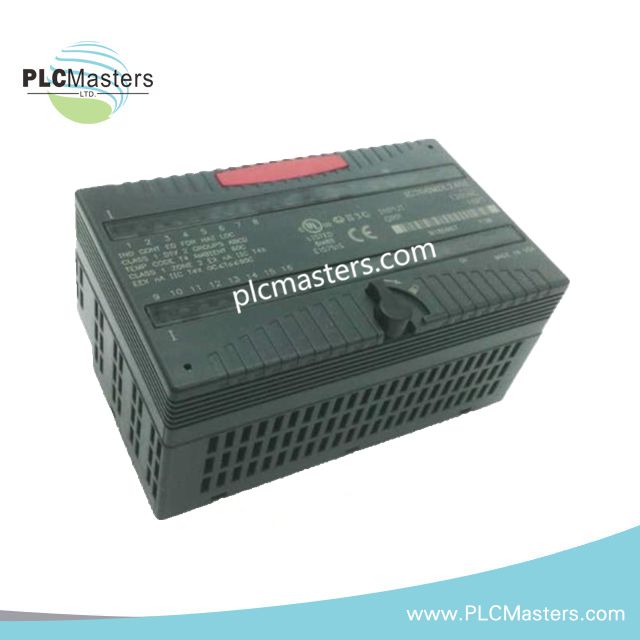

GE IC200MDL240 IC200MDL240B IC200MDL240D IC200MDL240E Input Module

Product Description

The GE IC200MDL240 is a 16-point AC discrete input module from the VersaMax I/O series, designed for reliable and efficient signal acquisition. It captures binary on/off signals from switches, sensors, and limit contacts, ensuring accurate monitoring in industrial automation systems. Moreover, its compact design allows seamless integration into the VersaMax rack system without external power requirements. This module supports positive logic operation and provides robust isolation between input groups, enhancing operational safety and system reliability.

Functional Highlights

• Captures 16 AC discrete inputs with high accuracy and fast response time

• Two groups of 8 inputs, each with a dedicated common for organized wiring

• Individual LEDs per input indicate ON/OFF status, plus a backplane LED for power verification

• Operates on 120 VAC nominal voltage, with an input range of 0–132 VAC, 47–63 Hz

• Draws 110 mA from the 5VDC backplane, requiring no external power supply

• Provides group-to-group isolation of 1500 VAC for one minute and 250 VAC continuous for safety

Technical Specifications

• Model: IC200MDL240

• Series: GE Fanuc VersaMax I/O

• Type: AC Discrete Input Module

• Number of Points: 16 (two groups of 8)

• Input Voltage Range: 0–132 VAC, 47–63 Hz

• Nominal Voltage: 120 VAC

• On-State Voltage: 70–132 VAC

• Off-State Voltage: 0–40 VAC

• On-State Current: Minimum 7 mA

• Off-State Current: Maximum 1.5 mA

• Response Time: On: 1 cycle minimum; Off: 2 ms minimum

• Isolation: 250 VAC continuous; 1500 VAC for 1 minute

• Backplane Current: 110 mA max

• Mounting: VersaMax rack system

• Dimensions (W×H×D): 110 × 66.8 × 50 mm

• Weight: 0.35 lbs

Typical Applications

• Industrial automation control systems requiring reliable AC signal monitoring

• Process monitoring in factories, including sensors and switch integration

• Integration into VersaMax I/O and control systems for modular expansion

• Suitable for machine monitoring, safety interlocks, and equipment status detection

FAQ

Q: Can the IC200MDL240 operate with different AC voltages?
A: Yes, it supports an input range of 0–132 VAC and a nominal voltage of 120 VAC.

Q: Does this module require an external power supply?
A: No, it draws power directly from the VersaMax 5V backplane.

Q: How does the module indicate the status of each input?
A: Each input has an individual LED that shows ON/OFF status, plus one LED indicates backplane power.

Q: Is the IC200MDL240 compatible with other VersaMax modules?
A: Yes, it integrates seamlessly with VersaMax I/O carriers and compatible CPU modules.

Q: What isolation protections does this module provide?
A: It offers 250 VAC continuous and 1500 VAC for one minute between input groups and backplane.
