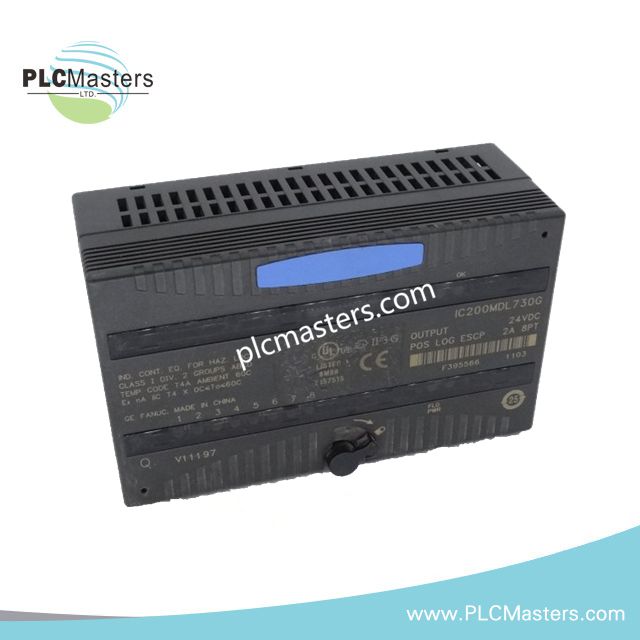

GE IC200MDL730E Discrete Output Module

Overview

The GE IC200MDL730E is an 8-point DC discrete output module from the VersaMax series. It delivers high-performance digital control in industrial automation systems. The module uses sourcing logic and operates at 24 VDC. It offers enhanced durability for demanding and harsh industrial environments. The module controls devices like solenoids, relays, and indicator lights.

Technical Specifications

• Model: IC200MDL730E

• Series: GE Fanuc VersaMax

• Type: Discrete Output Module

• Number of Outputs: 8 points, grouped in a single output group

• Logic Type: Positive logic (sourcing)

• Nominal Output Voltage: 24 VDC

• Output Voltage Range: 17.5 to 30 VDC

• Output Current: Up to 2 A per point at 30 VDC

• Maximum Module Current: 8 A total for all outputs

• External Power Supply: 18–30 VDC, 24 VDC nominal

• Backplane Current Consumption: 50 mA at 5 VDC

• Protection: Short-circuit and overcurrent protection

• Isolation: None

• Response Time: Approximately 0.5 milliseconds

• Indicators: LEDs for each output, module status, and field power

• Mounting: DIN rail or panel mount

• Protection Rating: IP20

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 70°C

• Humidity: 5% to 95% non-condensing

• Signal Accuracy: 98.7% in high-vibration environments
