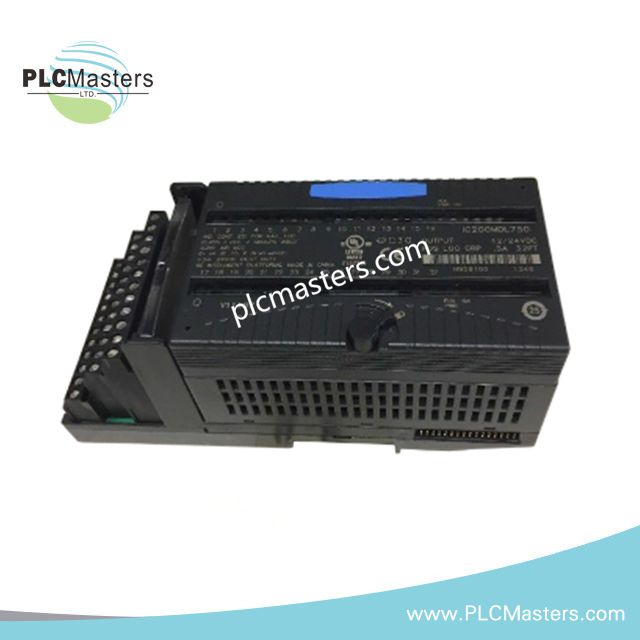

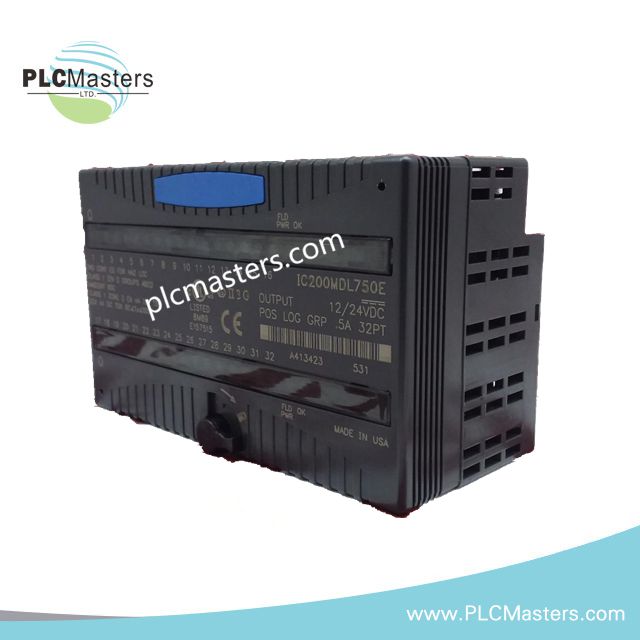

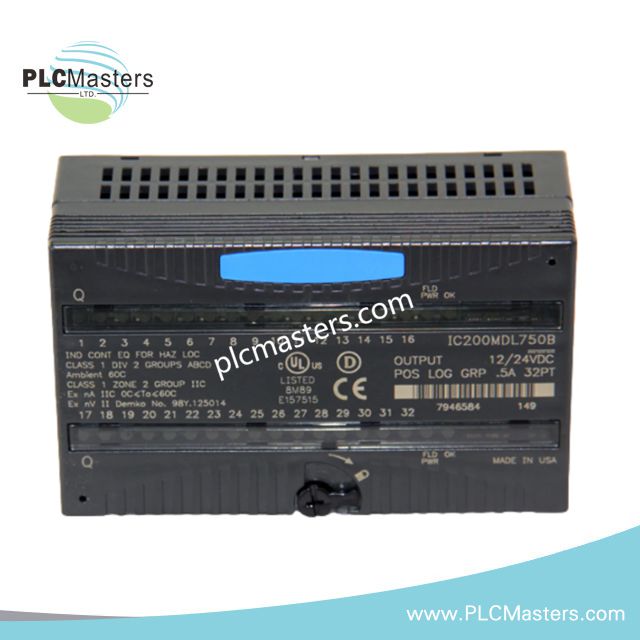

GE IC200MDL750C IC200MDL750G IC200MDL750H IC200MDL750J Output Module
$180.00
$420.00
Description
Overview
The GE IC200MDL750C is a 32-point DC discrete output module from the GE Fanuc VersaMax series, designed for precise and high-speed control in industrial automation systems. It delivers reliable positive logic outputs for controlling various binary loads such as solenoids, relays, and indicator lamps. This module combines compact design, superior performance, and easy integration to enhance control efficiency in distributed I/O architectures.
Key Features and Functional Highlights
The IC200MDL750C is built to provide outstanding switching performance and long-term durability. Each channel includes a dedicated LED indicator for quick visual diagnostics, improving maintenance efficiency. Moreover, the module supports hot-swap capability, allowing users to replace or install it without shutting down the system.
-
32 sourcing outputs divided into two isolated groups
-
Fast response time: 0.2 ms ON and 1.0 ms OFF transition
-
Positive logic design for sourcing type output
-
Compact size for space-efficient panel installations
-
High reliability under industrial temperature extremes (-40°C to +70°C)
-
LED indicators for each output and system status (OK, FLD PWR)
-
Full isolation between groups and logic for signal integrity
-
Ideal for applications requiring rapid and precise digital control
Technical Specifications
| Parameter | Description |
|---|---|
| Model | GE Fanuc IC200MDL750C |
| Type | DC Discrete Output Module (Positive Logic) |
| Number of Outputs | 32 sourcing outputs (2 groups of 16) |
| Output Voltage Range | 10.2–30 VDC (Nominal 12/24 VDC) |
| Logic Type | Positive logic (Output ON = Logic HIGH) |
| Output Current per Point | 0.5 A maximum (2 A inrush for 100 ms) |
| Total Module Current | 8 A aggregate limit |
| Response Time | 0.2 ms ON / 1.0 ms OFF |
| Status Indicators | 32 individual channel LEDs + OK and FLD PWR LEDs |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Power Supply | External 10.2–30 VDC |
| Backplane Current | 90 mA maximum |
| Mounting | DIN rail or panel mount |
| Operating Temperature | -40°C to +70°C |
| Weight | 0.31 lbs |
| Environment Rating | Class I Division 2 (Hazardous Locations) |
| Internal Fuses | None |
Typical Applications
The GE IC200MDL750C is widely used in manufacturing automation, material handling, and packaging systems. Its high-speed performance makes it suitable for precise motion control and rapid process feedback loops. In addition, it integrates seamlessly with VersaMax PLC systems, offering dependable performance in complex control networks.
-
Factory automation and robotics
-
Conveyor and sorting control systems
-
Machine tools and assembly lines
-
Food, beverage, and pharmaceutical production lines
-
Distributed control and monitoring systems
Reliability and Service
Engineered by GE Fanuc, this module delivers industrial-grade robustness and consistent uptime. Its hot-swap capability minimizes system downtime, while LED diagnostics simplify field troubleshooting. Therefore, maintenance teams can ensure rapid system recovery and continuous operation in demanding environments.
FAQ
Q1: What type of loads can the IC200MDL750C control?
It can control binary DC loads such as relays, solenoids, lamps, and contactors.
Q2: Can this module be used in hazardous environments?
Yes, it is rated for Class I Division 2 hazardous environments.
Q3: Does it support hot-swapping?
Yes, it allows module replacement or installation while the system remains powered.
Q4: What is the advantage of positive logic design?
Positive logic ensures output ON corresponds to a high voltage level, making signal interpretation simpler.
Q5: Is it compatible with other VersaMax modules?
Yes, it fully integrates with the VersaMax PLC family and supports mixed I/O configurations.
