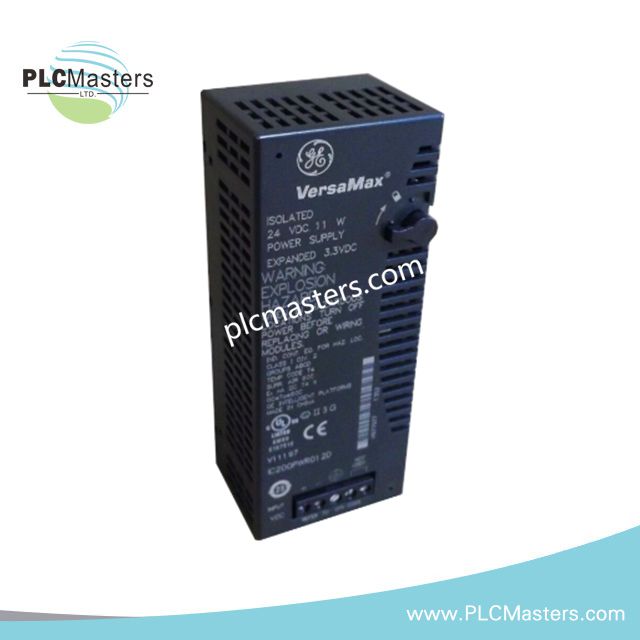

GE IC200PWR012 VersaMax Power Supply Module

Overview

The GE IC200PWR012 is a VersaMax power supply module designed for industrial automation systems. It provides isolated 24VDC input and delivers regulated 5VDC and 3.3VDC outputs. The module powers VersaMax CPUs, network interface units, and other control components. Its compact, rugged design ensures reliable operation in harsh environments. Easy plug-in connectors allow fast installation and maintenance.

Technical Specifications

• Manufacturer: GE Fanuc Emerson

• Product Line: VersaMax

• Model: IC200PWR012

• Product Type: 24VDC Isolated Power Supply with Expanded 3.3V

• Lifecycle Status: Active

• Input Voltage Range: 18 to 30 VDC

• Input Power: 11 W

• Inrush Current: 20 A at 24 VDC; 25 A at 30 VDC

• Holdup Time: 10 milliseconds

• Output Voltages: 5 VDC, 3.3 VDC

• 5V Output Current: 1.5 A minus the 3.3V load

• 3.3V Output Current: 1.0 A max

• Total Output Current: 1.5 A max

• Protection: Short circuit, overload, reverse polarity

• Isolation: 1500 V

• Efficiency: >85%

• Data Rates: Configurable: 153.5Kbaud standard/extended, 76.8Kbaud, or 38.4Kbaud

Environmental Ratings

• Operating Temperature: -40°C to 85°C

• Storage Temperature: -55°C to 125°C

• Humidity: 5% to 95% non-condensing

Physical Specifications

• Dimensions: 49 mm × 133.4 mm × 39 mm

• Weight: 3 lbs

• Mounting: DIN rail compatible

• Construction: Compact, rugged, and suitable for industrial environments

Features & Benefits

• High Reliability: Isolated design ensures stable power delivery

• Compact Design: Saves space in control panels

• Easy Installation: Plug-in connectors simplify setup and maintenance

• Versatile Compatibility: Works with a wide range of VersaMax modules

• Extended Power Support: Handles 5V and expanded 3.3V output efficiently
