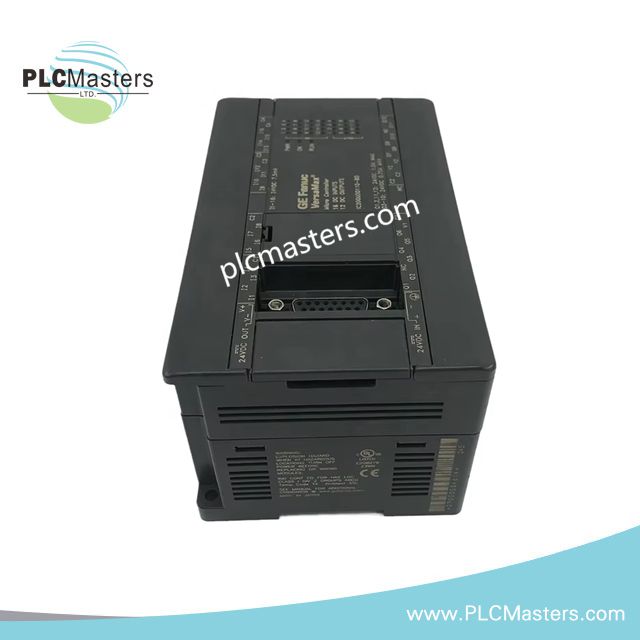

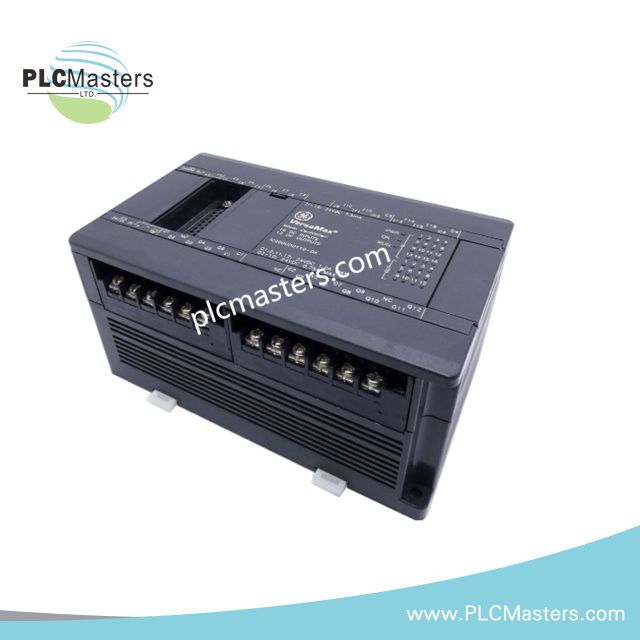

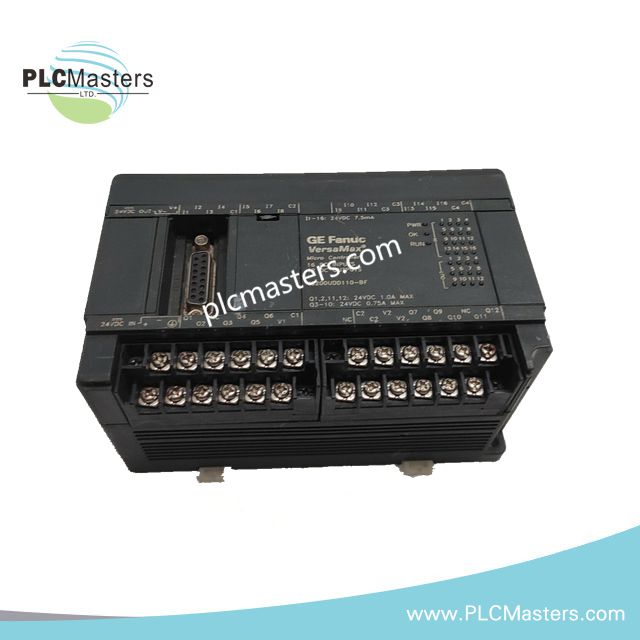

GE IC200UDD110 28-Point Micro PLC Power Supply

Overview

The GE IC200UDD110 is a 28-point Micro PLC power supply from the VersaMax series. It integrates 16 DC inputs and 12 DC outputs, all rated at 24VDC. The module provides reliable power and fast control for compact industrial systems. Built-in diagnostics ensure safe startup and runtime operation. The unit supports DIN rail or panel mounting for flexible installation.

Technical Specifications

I/O Configuration

• Total I/O Points: 28

• DC Inputs: 16 sourcing, 24VDC

• DC Outputs: 12 sourcing, 24VDC

• Output Current: 0.5A per point maximum (2 outputs up to 1A)

• Input Voltage Range: 18–30 VDC

• Isolation: 1500V RMS field to logic, 500V RMS between groups

Processing & Memory

• Processor: High-speed microcontroller

• Program Memory: 128 KB Flash

• Data Memory: 32 KB RAM

• Scan Time: Optimized for real-time control

• High-Speed Counters: Up to four Type A, or one Type A plus one Type B

Power & Communication

• Input Power: 5 W typical

• +24VDC Output Power Supply: 200 mA maximum

• Serial Port: RS-232/RS-485 combo

• Protocol Support: Modbus RTU, SNP, VersaMax native

• Expansion: Supports additional I/O and communication modules

Physical & Environmental Specs

• Dimensions: 150 mm × 90 mm × 76 mm

• Weight: 2.00 lbs

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 70°C

• Humidity: 5% to 95% non-condensing

• Mounting: DIN rail or panel mount
