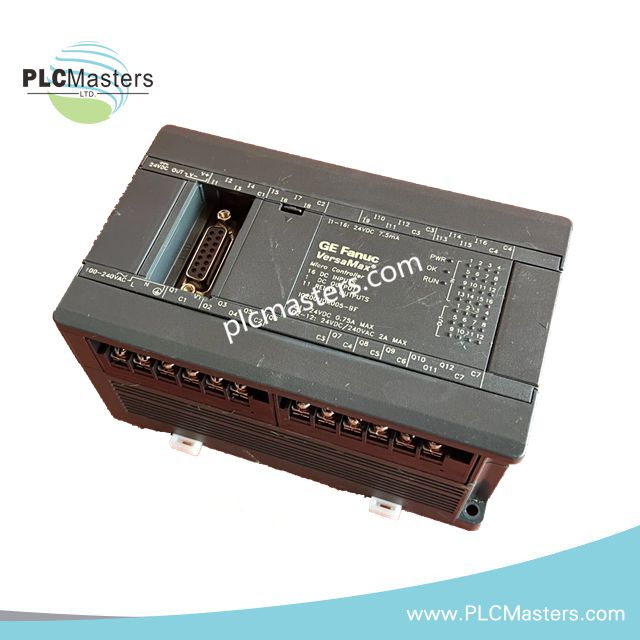

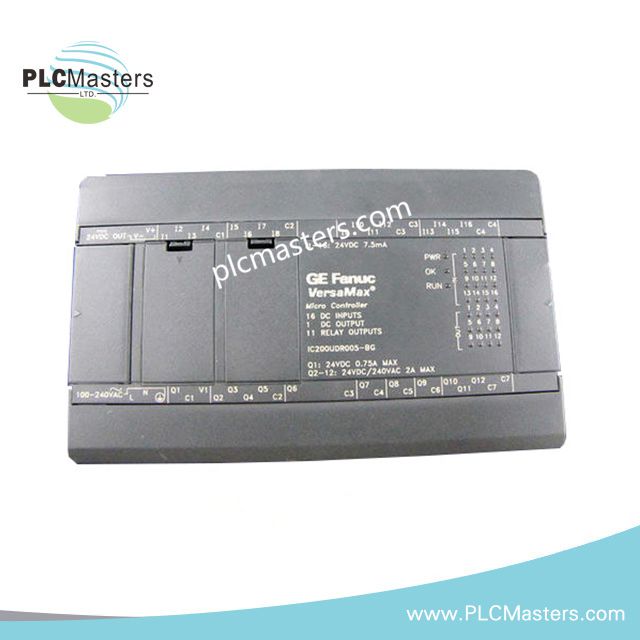

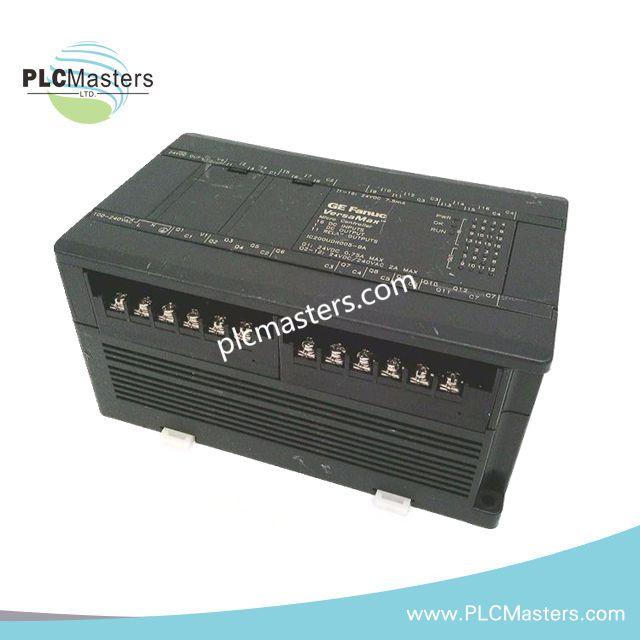

GE IC200UDR005-BF VersaMax Micro PLC
$180.00
$420.00
Description
Overview
The GE IC200UDR005-BF is a compact VersaMax Micro PLC designed for reliable automation in small and medium-scale industrial systems. It integrates digital inputs, relay outputs, communication ports, and onboard logic memory within a rugged housing. This controller delivers flexible performance for machine control, packaging lines, and process automation. Its robust design and versatile I/O configuration make it ideal for applications where space efficiency and reliability are essential.
Functional Highlights
The IC200UDR005-BF combines high functionality with easy installation. It includes 28 built-in I/O points, expandable up to 140 points with additional modules. Engineers appreciate its dual communication ports (RS-232 and RS-485) supporting Modbus TCP/IP and SNP protocols, ensuring seamless system integration. Moreover, the unit features two analog adjustment potentiometers for fine-tuning process parameters directly on-site.
It supports VersaPro and Proficy Machine Edition software for intuitive configuration and diagnostics. In addition, the built-in LED indicators simplify system monitoring and maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC200UDR005-BF |
| Series | GE Fanuc VersaMax Micro |
| Type | Micro Programmable Logic Controller (PLC) |
| Total I/O Points | 28 (16 inputs + 12 outputs) |
| Inputs | 16 digital inputs, 24 VDC sourcing |
| Outputs | 11 relay outputs + 1 DC output (24 VDC) |
| Power Supply | 120/240 VAC |
| Power Rating | 26 VA |
| Logic Memory | 9K words |
| Register Memory | 2K words |
| Analog Adjustment Pots | 2 built-in for tuning |
| Communication Ports | Port 1: RJ-45 (RS-232), Port 2: DB-15 (RS-485) |
| Protocol Support | Modbus TCP/IP, SNP, SNPx, RTU Master/Slave |
| Max Discrete I/O Expansion | Up to 4 modules |
| Max Analog I/O Expansion | Up to 4 modules |
| Max Physical I/O Supported | 140 points |
| Operating Temperature | –40°C to +70°C |
| Mounting | DIN rail or panel mount |
| Diagnostics | Built-in fault detection and LED indicators |
| Dimensions | 150 mm (W) × 76 mm (D) × 90 mm (H) |
| Weight | 0.6 kg |
Typical Applications
The VersaMax Micro IC200UDR005-BF excels in applications that demand compact control and reliable performance:
-
Machine Control: Automates small assembly or processing machines with precise I/O handling.
-
Packaging Systems: Coordinates conveyor belts, sensors, and actuators in packaging operations.
-
Process Automation: Manages pump, valve, and temperature control loops in compact process systems.
-
OEM Equipment: Provides flexible and cost-effective control for custom industrial machinery.
In addition, its modular design enables easy expansion, allowing engineers to scale system capacity as plant requirements evolve.
Support and Maintenance
GE offers extensive technical documentation, firmware updates, and software support for the VersaMax Micro PLC family. Maintenance teams benefit from user-friendly diagnostics and easily replaceable terminal blocks. Therefore, downtime is minimized, and system reliability is maintained even under demanding industrial conditions.
FAQ
Q1: What software is used to program the IC200UDR005-BF?
You can use VersaPro 1.1 or greater or Proficy Machine Edition Logic Developer for configuration and monitoring.
Q2: Can I expand the I/O capacity?
Yes, the PLC supports up to 4 discrete and 4 analog expansion modules, reaching a maximum of 140 I/O points.
Q3: What communication protocols are supported?
It supports Modbus TCP/IP, SNP, SNPx (Breakless), RTU Master/Slave, and Serial Read/Write communication modes.
Q4: What is the operating temperature range?
The unit operates reliably between –40°C and +70°C, suitable for harsh industrial environments.
Q5: Is it compatible with older VersaMax modules?
Yes, the IC200UDR005-BF maintains backward compatibility with existing VersaMax Micro system components.
