GE IC3600SIXL1A1A Mark I-II Relay Module Extender Card
$159.00
$359.00
Description
The GE IC3600SIXL1A1A is a relay module extender card designed for the General Electric Mark I-II IC3600 turbine control system series. This printed circuit board assembly contains multiple connector interfaces for connecting additional electronic components. Its documented hardware features include JC and JD connectors, two additional multi-pin connectors, and a row of 50 metal pins.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC3600SIXL1A1A |
| Brand | General Electric (GE) |
| Series | Mark I-II IC3600 |
| Product Type | Relay Module Extender Card |
| Functional Product Acronym | SIXL |
| Functional Revision | A |
| Assembly Type | Normal Assembly |
| PCB Pin Count | 50 |
| Connector Labels | JC, JD |
| Weight | 0.15 lb |
Board Layout and Connector Interfaces

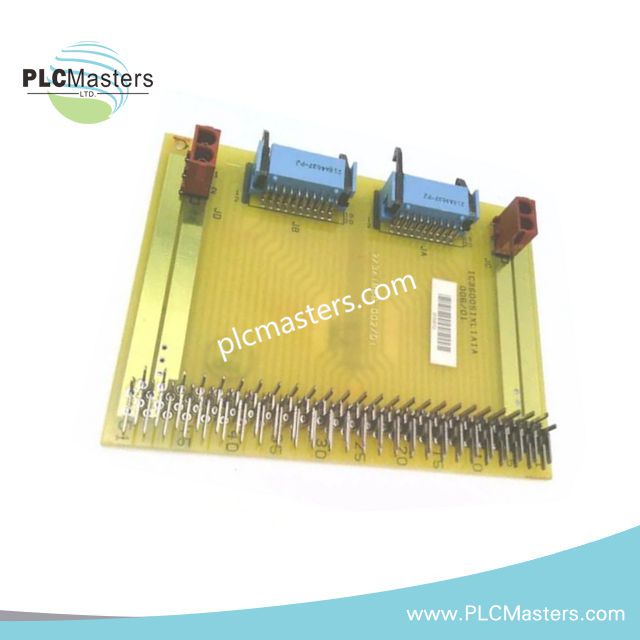

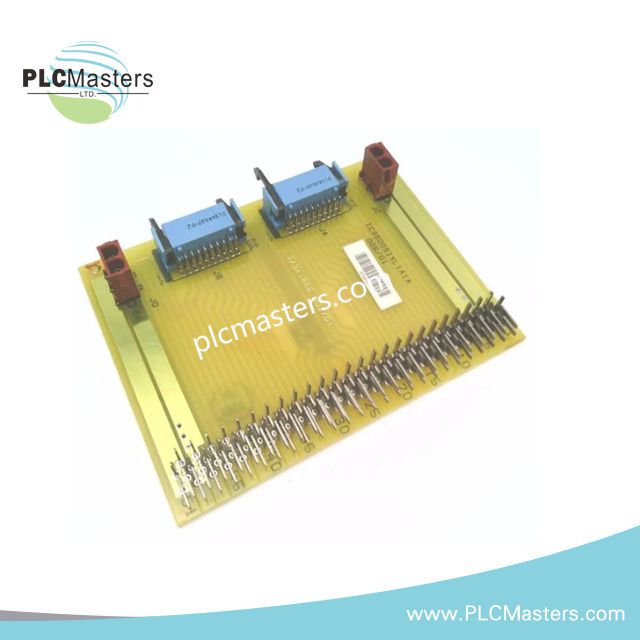

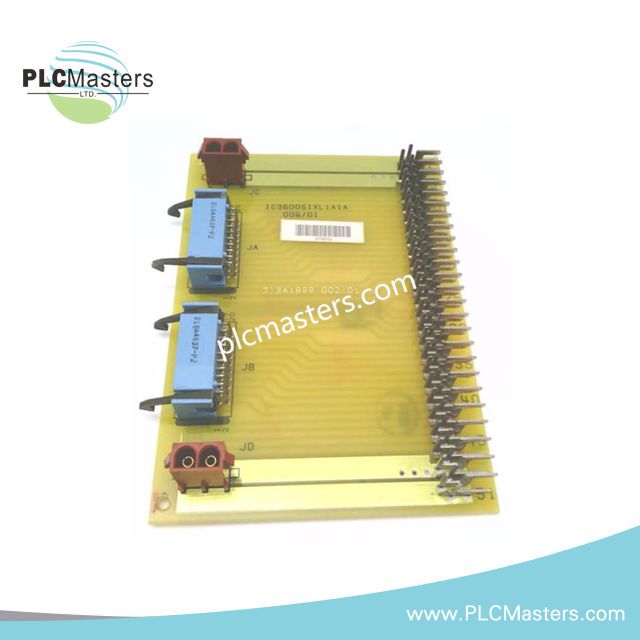

The board has a row of 50 metal pins along one edge, with numbered markings on the PCB surface. Two brown connector assemblies labeled JC and JD are positioned along the board edge. Each assembly has two adjacent ports, providing identifiable connection points for the associated hardware.
Two additional light-blue connectors with multiple male pins are located between the brown connectors. These interfaces are described as connection points for additional electronic components. The exact pin assignments, electrical characteristics, and mating component part numbers are not specified in the available documentation.
System Function
The IC3600SIXL1A1A belongs to the GE Speedtronic Mark I-II turbine control platform. Its documented role is that of a relay module extender card, rather than a standalone turbine controller. Its connector layout supports its use as an interconnected hardware assembly within the designated control system.
Frequently Asked Questions
Q: Which control system is the IC3600SIXL1A1A designed for?
A: It is identified for the GE Mark I-II IC3600 Speedtronic turbine control system series. Confirm the existing board part number and connector arrangement before selecting it as a replacement.
Q: What is the difference between the JC/JD connectors and the light-blue connectors?
A: JC and JD are the labels for the two brown connector assemblies, while the two light-blue connectors have multiple male pins. The available information does not establish their detailed electrical functions or pin assignments.
Q: Can the IC3600SIXL1A1A be replaced by another IC3600 board?
A: Not based on the series designation alone. Verify the complete part number, including the suffix A1A, and confirm the required hardware configuration before substitution.
