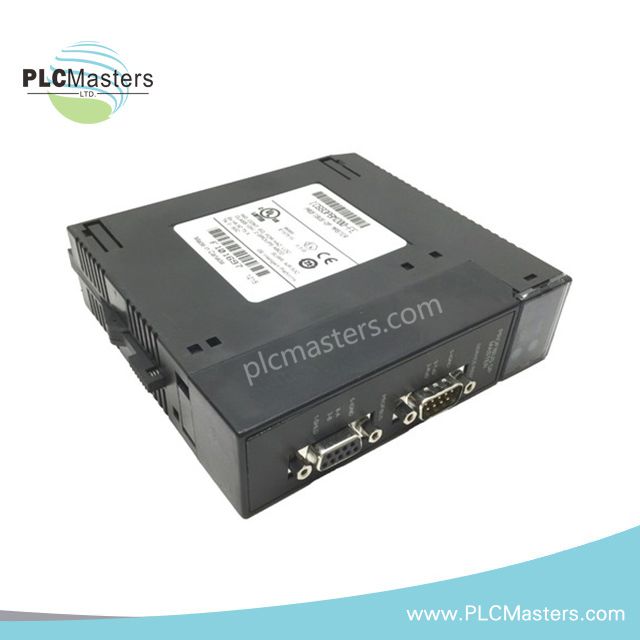

GE IC693TCM302B Temperature Control Module

Overview

The GE IC693TCM302B is a Temperature Control Module designed for the Series 90-30 PLC family. It controls eight independent temperature zones with thermocouple or RTD inputs and relay outputs. The module operates in open-loop or closed-loop (PID) modes for flexible temperature regulation. The "B" revision improves resolution and extends the temperature range. It suits industrial applications such as ovens, kilns, and process heaters. The device includes diagnostic LEDs for power, run, fault, short, and each output channel. This helps quickly detect wiring or sensor issues. The module uses plug-in connectors with captive screw terminals for easy wiring.

Technical Specifications

• Part Number: IC693TCM302B

• Series: GE Fanuc Series 90-30

• Input Types: Thermocouple and RTD

• Channels: 8 inputs / 8 outputs

• Control Modes: Auto (PID closed-loop) and Manual (open-loop)

• Resolution: 12-bit (~0.2°C)

• Common Mode Voltage: ±12 V

• PWM Output Range: 0.1 to 60 seconds, 0.1% resolution

• Fault Detection: Open/reverse thermocouple, out-of-tolerance temperature

• Indicators: Power, Run, Fault, Short, and 8 Output LEDs

• Fuse: 2A, 125V subminiature (Littlefuse 273 002 or equivalent)

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -40°C to 85°C

• Power Supply: External 18–36 VDC for output relays

• Internal Power Usage: 150 mA @ 5 VDC from backplane

• Output Voltage Range: 18 to 30 V DC

• Load Current: 100 mA per output point max

• Off-state Leakage Current: Max 0.1 mA

• Thermocouple Impedance: Max 30 Ohms

• Humidity: 5% to 95% (non-condensing)

• Shock (Operating): 15g, 11 ms, 3-axis positive and negative

• Vibration (Operating): 3.5 mm, 5–9 Hz; 1.0g, 9–150 Hz
