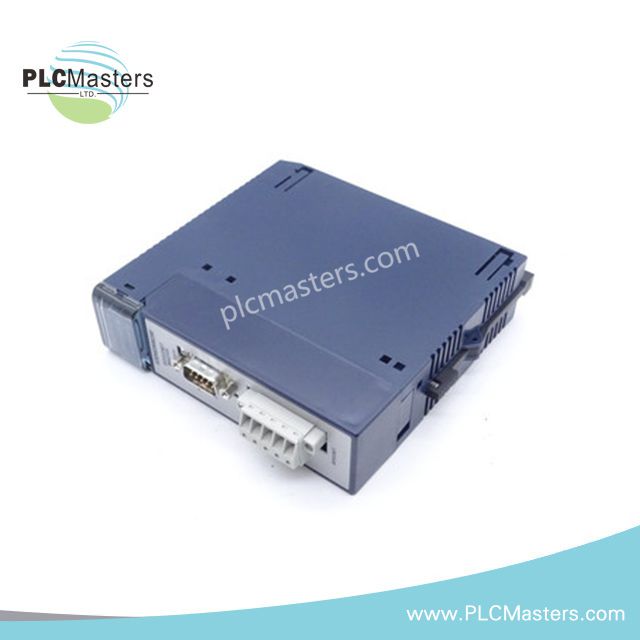

GE IC694DNM200-BB DeviceNet Master Communication Module

Overview

The GE IC694DNM200-BB is a DeviceNet Master Module for PACSystems RX3i and Series 90-30 controllers. It enables reliable communication with up to 63 DeviceNet slave devices. Engineers use it in industrial automation networks requiring fast and scalable integration.

Technical Specifications

• Model: IC694DNM200-BB

• Manufacturer: General Electric

• Module Type: DeviceNet Master Communication Module

• Compatible Platforms: PACSystems RX3i, Series 90-30

• Compatible RX3i CPUs: Version 3.5 or later

• Max Slave Devices: 63 DeviceNet slaves

• Slave Operation: Supported

• Input Data Size: 255 bytes per slave

• Output Data Size: 255 bytes per slave

• Communication Protocol: DeviceNet

• Baud Rates Supported: 125 Kbps, 250 Kbps, 500 Kbps

• Configurable Global Scan Rate: Supported

• Redundancy: Not supported

• Diagnostic Address Detection: Runs during power-up

• Ports: 1 × RS-232 Service Port, 1 × DeviceNet Master Port

• Network Power for Node Devices: 24 VDC ±4%

• Power Requirements: 5 VDC @ 450 mA (2.25 W)

• Mounting: Single-slot installation on RX3i or 90-30 baseplate

• LED Indicators: Net Power, Mod Status, Net Status

• Dimensions: 7.0 cm × 13.3 cm × 13.3 cm

• Weight: 0.7 kg
