Overview

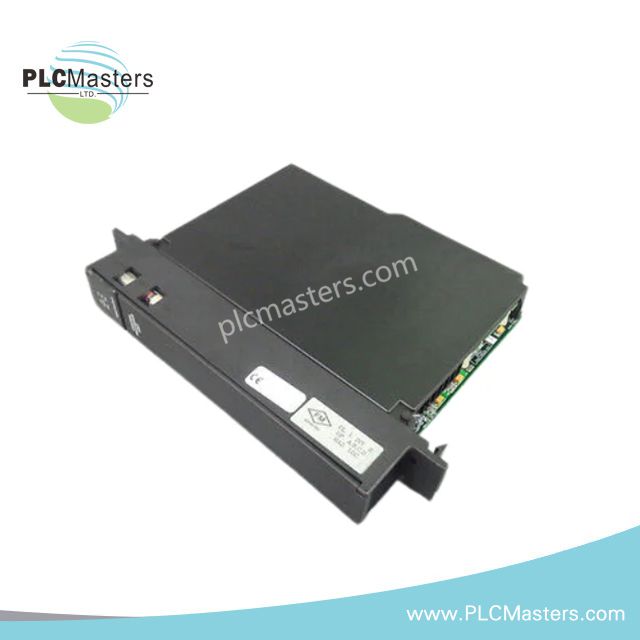

The IC697CPX782 is a powerful CPU module designed for GE Fanuc Series 90-70 PLC systems. It provides fast, reliable control for complex industrial automation tasks like process control and machine automation. The CPU supports floating-point operations, enabling high-speed logic execution and robust I/O integration. It features three serial ports for versatile communication and operates efficiently at 96 MHz with an Intel 80486DX4 processor. Its rugged design ensures stable operation in industrial environments.
Technical Specifications
-
Model: IC697CPX782
-
Manufacturer: GE Fanuc
-
Series: Series 90-70
-
Processor: Intel 80486DX4 (32-bit)
-
Clock Speed: 96 MHz
-
Memory:
-
1 MB battery-backed CMOS RAM
-
256 KB non-volatile flash memory
-
I/O Capacity: Supports up to 12,000 discrete and analog I/O points
-
Serial Ports:
-
1 × RS-232
-
2 × RS-485
-
Communication Protocols: SNP (Series Ninety Protocol), Ethernet TCP/IP (optional module)
-
Scan Rate: 0.4 microseconds per Boolean function
-
Operation Modes: RUN, STOP, RUN with outputs disabled (three-position switch)
-
Status Indicators: 7 front-panel LEDs (e.g., OK, P1 RUN, P2 ENABLED)
-
Battery: Lithium battery for calendar clock and memory retention (5-year shelf life)
-
Power Requirements:
-
5 V DC input, 3.1 A nominal current
-
Requires 100W AC/DC or 90W DC power supply
-
Dimensions: 4.4 cm × 29.2 cm × 22.2 cm
-
Weight: 0.5 kg
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
